Water pumps play a vital role in automotive and industrial cooling systems by circulating coolant through the engine or process system. At the heart of these pumps lies a critical component: the water pump bearing. These bearings support the pump shaft, allowing it to rotate smoothly at high speeds while withstanding both radial and axial loads. A well-designed water pump bearing ensures reliability, reduces maintenance downtime, and protects valuable equipment from overheating damage.
This comprehensive guide explains what types of bearings are used in water pumps, how to detect bearing failure, whether it’s safe to drive with a bad water pump bearing, and why selecting the correct size (like those in the BYWB water pump bearing size chart) is crucial.
What Bearing Is Used in a Water Pump?

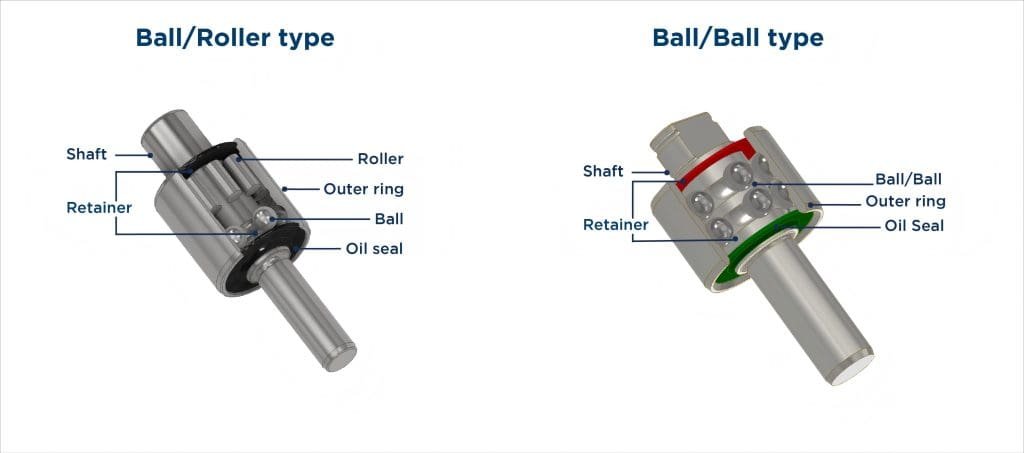

Modern automotive water pumps primarily use sealed rolling-element bearings designed for high-speed, high-load operation in a compact package. These bearings are commonly referred to as water pump bearings and come in two main designs:
- Double-row ball bearing (ball-ball type)
Two rows of balls in a single integrated unit.
Suitable for applications where smooth operation and moderate load capacity are required.
Provides balanced support for both radial and axial loads.
- Combination ball-roller bearing (roller-ball type)
One row of balls and one row of cylindrical rollers in a single assembly.
Chosen for pumps with higher radial loads (tight belt tension or heavier impellers).
Offers higher stiffness and load capacity compared to ball-ball types.
In most designs, the pump shaft itself forms part of the bearing race, and the entire assembly is sealed and pre-lubricated for life. This eliminates the need for regular greasing and keeps out contaminants such as coolant and debris. When the bearing wears out, the standard repair is to replace the bearing assembly or the entire pump unit.
What Type of Bearing Is Used in Pumps?
Pumps in general (beyond automotive applications) use different bearings depending on their size, speed, and operating environment:
Single-row deep groove ball bearings
Handle moderate radial and axial loads.
Common in small centrifugal pumps and general-purpose designs.
Low friction and easy to seal, available in standard 2RS (double-sealed) configurations.
Double-row angular contact or deep groove ball bearings
Handle higher combined loads in limited space.
Often used in medium-sized industrial pumps and certain automotive pump designs.
Provide stable performance and good alignment tolerance.
Cylindrical roller bearings
Used in pumps with heavy radial loads, such as large industrial and process pumps.
Offer high load capacity and rigidity but require precise alignment and often a paired thrust bearing.
Thrust bearings (ball or roller)
Designed specifically for axial loads.
Common in vertical pumps or pumps with significant axial thrust forces.
Some large, high-performance pumps use fluid-film thrust bearings for maximum durability.
Specialty bearings
Hybrid or ceramic bearings may be used for high-speed or corrosive applications.
Magnetic bearings are used in specialized, advanced machinery but are rare in standard water pumps.
Each bearing type is selected based on the pump’s duty cycle, load characteristics, and maintenance requirements. However, for most automotive and many industrial water pumps, integrated sealed bearings are the standard.
How Do I Know If My Water Pump Bearings Are Bad?
A failing water pump bearing shows clear warning signs, including:

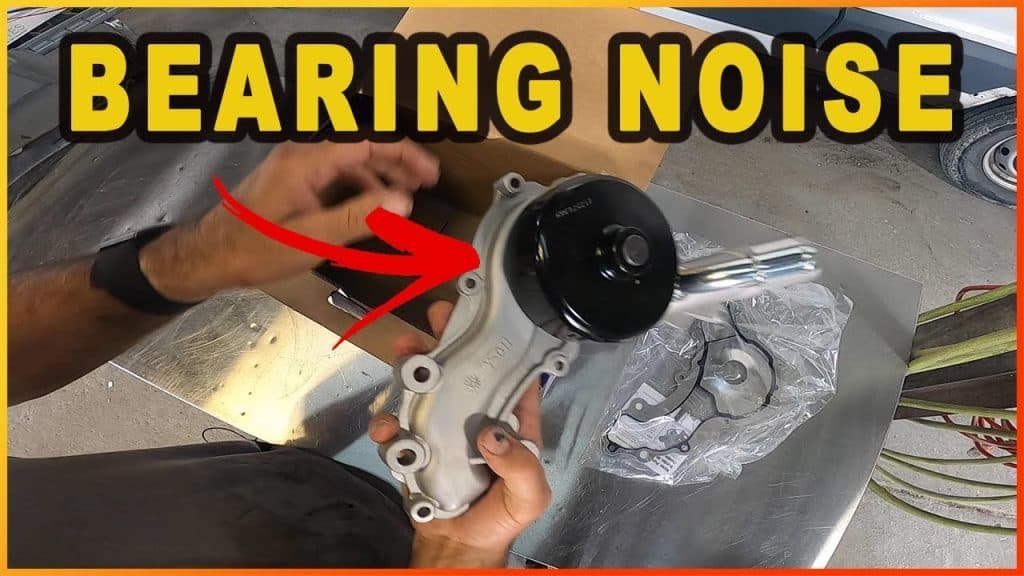

- Unusual noises
Whining, chirping, or squealing sounds that change with engine speed.
Grinding or rumbling noises when the bearing is severely worn.
- Coolant leaks
Coolant dripping from the pump or visible dried coolant residue around the pump area.
Leaks often appear at the weep hole and indicate both bearing and seal deterioration.
- Overheating
Rising engine temperature due to reduced or stopped coolant flow.
Severe bearing damage can seize the pump shaft, leading to immediate overheating.
- Pulley play or vibration
The pump pulley feels loose or wobbly when manually checked.
Belt vibration or tensioner movement may also be observed.
If any of these symptoms occur, the pump should be inspected and likely replaced. Continued operation with a failing bearing can quickly damage the engine or surrounding components.
Can You Drive with a Bad Water Pump Bearing?
Driving with a bad water pump bearing is not recommended. Continuing to operate a vehicle under these conditions poses risks:
- A failed bearing can cause the pump to seize, stopping coolant circulation and leading to rapid overheating.
Overheating can warp cylinder heads, blow head gaskets, or even seize the engine.
A wobbly pulley may cause the serpentine belt to slip or break, disabling other vital systems like the alternator and power steering.
If you must move the vehicle, drive only the minimum distance needed to reach a safe location or repair facility. Keep engine RPM low and closely monitor the temperature gauge. Ideally, have the vehicle towed to prevent further damage.
Water Pump Bearing Replacement
Replacing a water pump bearing involves precision and proper tools. For many vehicles and industrial applications, replacing the entire water pump assembly is more practical because the bearing is often press-fitted and sealed for life.
Steps typically involved:
Remove the drive belt and disconnect hoses.
Remove the water pump assembly from the engine or system.
Use a press to remove the old bearing and shaft assembly.
Install the new bearing or a complete replacement pump.
Reassemble, refill coolant, and check for leaks.
For a more detailed guide and to explore BYWB’s quality replacement solutions, visit our dedicated page:
Water Pump Bearing Replacement
BYWB Water Pump Bearing Size Chart
| NSK No. | FAG No. | Boundary dimensions (mm) | Mass | |||||||||
| d | d1 | d2 | H | A | D | B | C | S1 | S2 | kg | ||
| 885154 | W2289 | 15.918 | – | – | 38.9 | 73.4 | 30 | 4 | 30.5 | – | – | 0.2 |
| 885165 | W2325 | 15.918 | – | – | 38.9 | 82.6 | 30 | 4 | 39.7 | – | – | 0.21 |
| 885167 | W2439 | 15.918 | – | – | 38.9 | 111.5 | 30 | 23.8 | 48.8 | – | – | 0.25 |
| 885155 | W2445 | 15.918 | – | – | 38.9 | 113.1 | 30 | 31.8 | 42.4 | – | – | 0.26 |
| 885118 | W2468 | 15.918 | – | – | 38.9 | 119.1 | 30 | 37.3 | 42.9 | – | – | 0.26 |
| 885168AD | W2481-6 | 15.918 | – | – | 38.9 | 122.2 | 30 | 40.2 | 43.1 | – | – | 0.27 |
| 885158P | W2537 | 15.918 | – | – | 38.9 | 136.4 | 30 | 39.1 | 58.4 | – | – | 0.3 |
| 885158 | W2543 | 15.918 | – | – | 38.9 | 138.1 | 30 | 40.9 | 58.3 | – | – | 0.3 |
| 885694S | W2575-1 | 15.918 | – | – | 38.9 | 146.1 | 30 | 61.7 | 45.5 | – | – | 0.32 |
| 885117 | W2637 | 15.918 | – | – | 38.9 | 161.9 | 30 | 58.4 | 64.6 | – | – | 0.34 |
| 885113 | W2527 | 15.918 | – | – | 38.9 | 133.9 | 30 | 42.7 | 52.3 | – | – | 0.3 |
| 885595 | W2406-2 | 15.918 | – | – | 38.9 | 103.1 | 30 | 23.4 | 40.8 | – | – | 0.24 |
| 885168C | W2481-1 | 15.918 | – | – | 38.9 | 122.2 | 30 | 28.6 | 54.8 | – | – | 0.27 |
| 885476 | W2481 | 15.918 | – | – | 38.9 | 122.2 | 30 | 33.9 | 49.4 | – | – | 0.27 |
| 885477 | W2364S | 15.918 | – | – | 38.9 | 92.48 | 30 | 25.12 | 28.46 | – | – | 0.23 |
| 885521 | W3520-2 | 15.938 | – | – | 38.9 | 132.1 | 30 | 40.2 | 53 | – | – | 0.29 |
| 885611 | W3522-1 | 15.938 | – | – | 38.9 | 132.6 | 30 | 29.8 | 63.9 | – | – | 0.3 |
| 885613 | W3607 | 15.938 | – | – | 38.9 | 154.2 | 30 | 29.8 | 85.6 | – | – | 0.33 |
| 885603 | W2548-1 | 15.918 | – | – | 38.9 | 139.3 | 30 | 35.1 | 65.3 | – | – | 0.31 |
| 885852 | WK2520 | 18.961 | 15.918 | 15.918 | 54.1 | 132.1 | 38.1 | 29.9 | 48.2 | 12.07 | 43.2 | 0.46 |
| 885858 | WK2637 | 18.961 | 15.918 | 15.918 | 54.1 | 161.9 | 38.1 | 35.6 | 72.4 | 15.1 | 70.05 | 0.55 |
| 885821 | WK6550B | 18.961 | 15.918 | 15.977 | 54.1 | 139.7 | 38.1 | 35.6 | 50.1 | 15.4 | 47.75 | 0.48 |
| 885862B | WK6564-6R | 18.961 | 15.918 | 15.977 | 54.1 | 143.5 | 38.1 | 30.8 | 89.5 | 12.24 | 50.5 | 0.5 |
| 885844 | WK6600B | 18.961 | 15.918 | 15.977 | 54.1 | 152.4 | 38.1 | 35.6 | 62.9 | 15.1 | 60.53 | 0.53 |
| 885737 | WK2537-1 | 18.961 | 15.918 | 18.961 | 54.1 | 136.8 | 38.1 | 35.9 | 46.7 | 12.1 | 43.2 | 0.47 |
| 885869 | WK2501-3 | 18.961 | 18.961 | 18.961 | 54.1 | 127.5 | 38.1 | 30 | 42.3 | 14.1 | 38.9 | 0.48 |
| 885735 | WK2534 | 18.961 | 18.961 | 18.961 | 54.1 | 135.7 | 38.1 | 31.6 | 49.9 | – | 46.7 | 0.47 |
| 885815A | WK2564 | 18.961 | 18.961 | 18.961 | 54.1 | 143.3 | 38.1 | 35.6 | 53.8 | – | 49.1 | 0.5 |
| 885862B | WK2564-4 | 18.961 | 18.961 | 15.918 | 54.1 | 143.5 | 38.1 | 30.3 | 59 | 11.9 | 50.6 | 0.5 |
| 885760 | WK2575-4 | 18.961 | 18.961 | 15.918 | 54.1 | 146.1 | 38.1 | 36.3 | 55.7 | 29.9 | 51.2 | 0.51 |
| 885795SC | WK2607A | 18.961 | 18.961 | 15.938 | 54.1 | 154.3 | 38.1 | 30 | 70.6 | 8.2 | 56.8 | 0.53 |
| 885815 | WK2559-2 | 18.961 | 18.961 | 15.918 | 54.1 | 142 | 38.1 | 31.8 | 56.2 | – | 51.9 | 0.49 |
| 885815A | WK6564 | 18.961 | 18.961 | 15.977 | 54.1 | 143.3 | 38.1 | 35.5 | 53.8 | – | 49.4 | 0.49 |
| 885154 | W2289 | 15.918 | – | – | 38.9 | 73.4 | 30 | 4 | 30.5 | – | – | 0.2 |
| 885165 | W2325 | 15.918 | – | – | 38.9 | 82.6 | 30 | 4 | 39.7 | – | – | 0.21 |
| 885167 | W2439 | 15.918 | – | – | 38.9 | 111.5 | 30 | 23.8 | 48.8 | – | – | 0.25 |
| 885155 | W2445 | 15.918 | – | – | 38.9 | 113.1 | 30 | 31.8 | 42.4 | – | – | 0.26 |
| 885118 | W2468 | 15.918 | – | – | 38.9 | 119.1 | 30 | 37.3 | 42.9 | – | – | 0.26 |
| 885168AD | W2481-6 | 15.918 | – | – | 38.9 | 122.2 | 30 | 40.2 | 43.1 | – | – | 0.27 |
| 885158P | W2537 | 15.918 | – | – | 38.9 | 136.4 | 30 | 39.1 | 58.4 | – | – | 0.3 |
| 885158 | W2543 | 15.918 | – | – | 38.9 | 138.1 | 30 | 40.9 | 58.3 | – | – | 0.3 |
| 885694S | W2575-1 | 15.918 | – | – | 38.9 | 146.1 | 30 | 61.7 | 45.5 | – | – | 0.32 |
| 885117 | W2637 | 15.918 | – | – | 38.9 | 161.9 | 30 | 58.4 | 64.6 | – | – | 0.34 |
| 885113 | W2527 | 15.918 | – | – | 38.9 | 133.9 | 30 | 42.7 | 52.3 | – | – | 0.3 |
| 885595 | W2406-2 | 15.918 | – | – | 38.9 | 103.1 | 30 | 23.4 | 40.8 | – | – | 0.24 |
| 885168C | W2481-1 | 15.918 | – | – | 38.9 | 122.2 | 30 | 28.6 | 54.8 | – | – | 0.27 |
| 885476 | W2481 | 15.918 | – | – | 38.9 | 122.2 | 30 | 33.9 | 49.4 | – | – | 0.27 |
| 885477 | W2364S | 15.918 | – | – | 38.9 | 92.48 | 30 | 25.12 | 28.46 | – | – | 0.23 |
| 885521 | W3520-2 | 15.938 | – | – | 38.9 | 132.1 | 30 | 40.2 | 53 | – | – | 0.29 |
| 885611 | W3522-1 | 15.938 | – | – | 38.9 | 132.6 | 30 | 29.8 | 63.9 | – | – | 0.3 |
| 885613 | W3607 | 15.938 | – | – | 38.9 | 154.2 | 30 | 29.8 | 85.6 | – | – | 0.33 |
| 885603 | W2548-1 | 15.918 | – | – | 38.9 | 139.3 | 30 | 35.1 | 65.3 | – | – | 0.31 |
| 885852 | WK2520 | 18.961 | 15.918 | 15.918 | 54.1 | 132.1 | 38.1 | 29.9 | 48.2 | 12.07 | 43.2 | 0.46 |
| 885858 | WK2637 | 18.961 | 15.918 | 15.918 | 54.1 | 161.9 | 38.1 | 35.6 | 72.4 | 15.1 | 70.05 | 0.55 |
| 885821 | WK6550B | 18.961 | 15.918 | 15.977 | 54.1 | 139.7 | 38.1 | 35.6 | 50.1 | 15.4 | 47.75 | 0.48 |
| 885862B | WK6564-6R | 18.961 | 15.918 | 15.977 | 54.1 | 143.5 | 38.1 | 30.8 | 89.5 | 12.24 | 50.5 | 0.5 |
| 885844 | WK6600B | 18.961 | 15.918 | 15.977 | 54.1 | 152.4 | 38.1 | 35.6 | 62.9 | 15.1 | 60.53 | 0.53 |
| 885737 | WK2537-1 | 18.961 | 15.918 | 18.961 | 54.1 | 136.8 | 38.1 | 35.9 | 46.7 | 12.1 | 43.2 | 0.47 |
| 885869 | WK2501-3 | 18.961 | 18.961 | 18.961 | 54.1 | 127.5 | 38.1 | 30 | 42.3 | 14.1 | 38.9 | 0.48 |
| 885735 | WK2534 | 18.961 | 18.961 | 18.961 | 54.1 | 135.7 | 38.1 | 31.6 | 49.9 | – | 46.7 | 0.47 |
| 885815A | WK2564 | 18.961 | 18.961 | 18.961 | 54.1 | 143.3 | 38.1 | 35.6 | 53.8 | – | 49.1 | 0.5 |
| 885862B | WK2564-4 | 18.961 | 18.961 | 15.918 | 54.1 | 143.5 | 38.1 | 30.3 | 59 | 11.9 | 50.6 | 0.5 |
| 885760 | WK2575-4 | 18.961 | 18.961 | 15.918 | 54.1 | 146.1 | 38.1 | 36.3 | 55.7 | 29.9 | 51.2 | 0.51 |
| 885795SC | WK2607A | 18.961 | 18.961 | 15.938 | 54.1 | 154.3 | 38.1 | 30 | 70.6 | 8.2 | 56.8 | 0.53 |
| 885815 | WK2559-2 | 18.961 | 18.961 | 15.918 | 54.1 | 142 | 38.1 | 31.8 | 56.2 | – | 51.9 | 0.49 |
| 885815A | WK6564 | 18.961 | 18.961 | 15.977 | 54.1 | 143.3 | 38.1 | 35.5 | 53.8 | – | 49.4 | 0.49 |
The BYWB water pump bearing size chart provides detailed information, including:
Bearing model numbers
Inner diameter (bore)
Outer diameter
Overall length (width)
Equivalent OEM part numbers
By referencing this chart, engineers and purchasing professionals can easily match OEM requirements with the correct BYWB water pump bearing. Proper size selection ensures compatibility, optimal performance, and long service life.
Conclusion
Water pump bearings are crucial for reliable pump operation in both automotive and industrial applications. They are typically sealed, pre-lubricated double-row ball or combination ball-roller bearings designed to handle high speeds and combined loads.
Knowing the symptoms of bearing failure—such as unusual noise, coolant leaks, overheating, or pulley play—helps prevent costly engine damage. Driving with a failing water pump bearing should be avoided, as the risk of overheating and major component damage is high.
For engineers and buyers, having an accurate size chart, like the BYWB water pump bearing catalog, ensures correct replacement selection and reduces downtime. Investing in high-quality bearings from trusted suppliers such as BYWB is an important step in keeping cooling systems running smoothly and efficiently.
