Air-conditioner Compressor Bearings Manufacturer
Partner with BYWB Bearing for Commercial AC Solutions – Precision Bearings Crafted for Optimal Performance.
Ask for A quick quote
We will contact you within 1 working day, please pay attention to the email with the suffix “@bywbbearing.com”
Top Air-conditioner Compressor Bearing Reviews
Let us review some of the top air-conditioner compressor bearings that we provide to our customers.

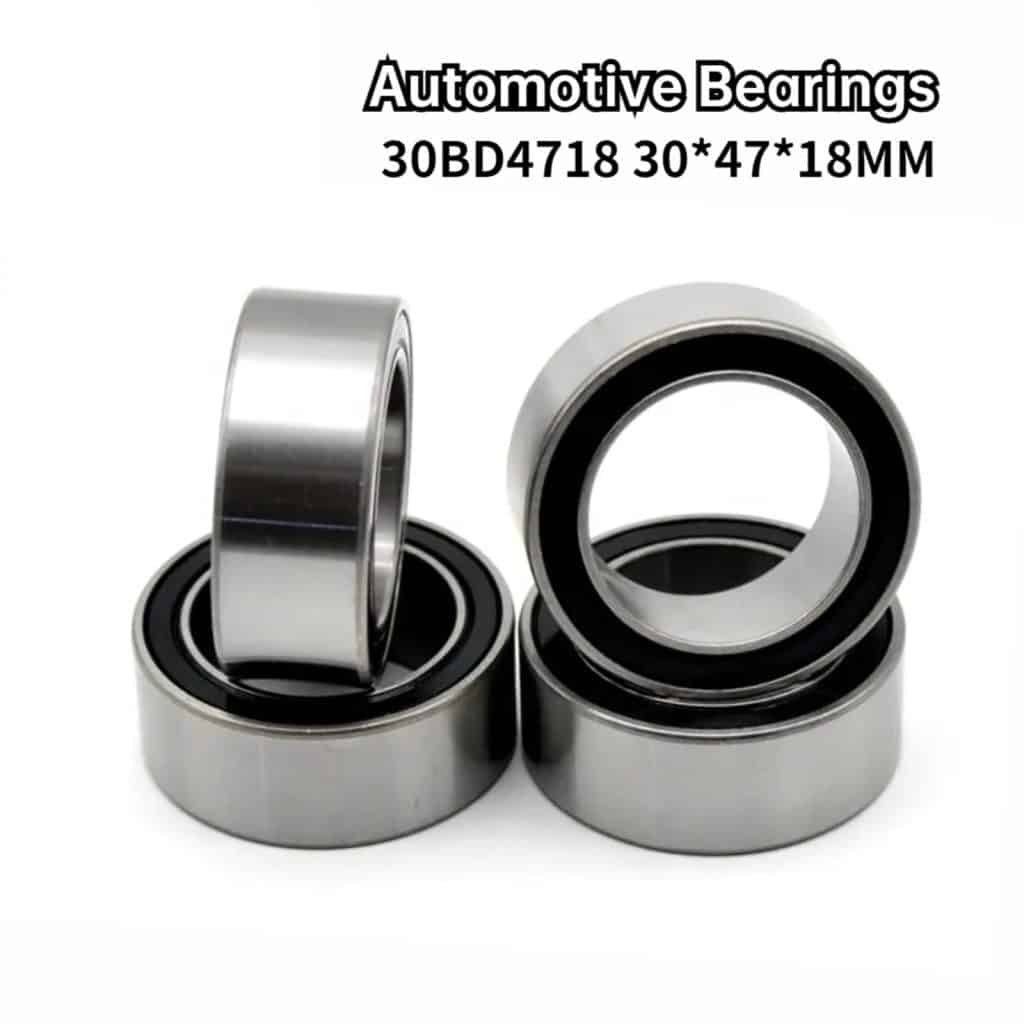

Air Conditioner Bearing 30BD4718DU
Product: AIR COMPRESSOR BEARING DAC30470018
ID: 30mm
OD: 47mm
Width: 18 mm
Weight: 0.098kg
Reference number: NSK 30BD4718DUM1, Nachi 30BG04S8G-2DS
Application: TOYOTA YARIS 1.5 NCP91 88310-52481 8831052202
Air Conditioner Bearing 30BD5220DU
Product: AIR COMPRESSOR BEARING DAC30520020
ID: 30mm
OD: 52mm
Width: 20 mm
Weight: 0.16 kg
Reference number: NSK 30BD5220DU ,Nachi 30BGS10G-2DST
Application: TOYOTA 101.007

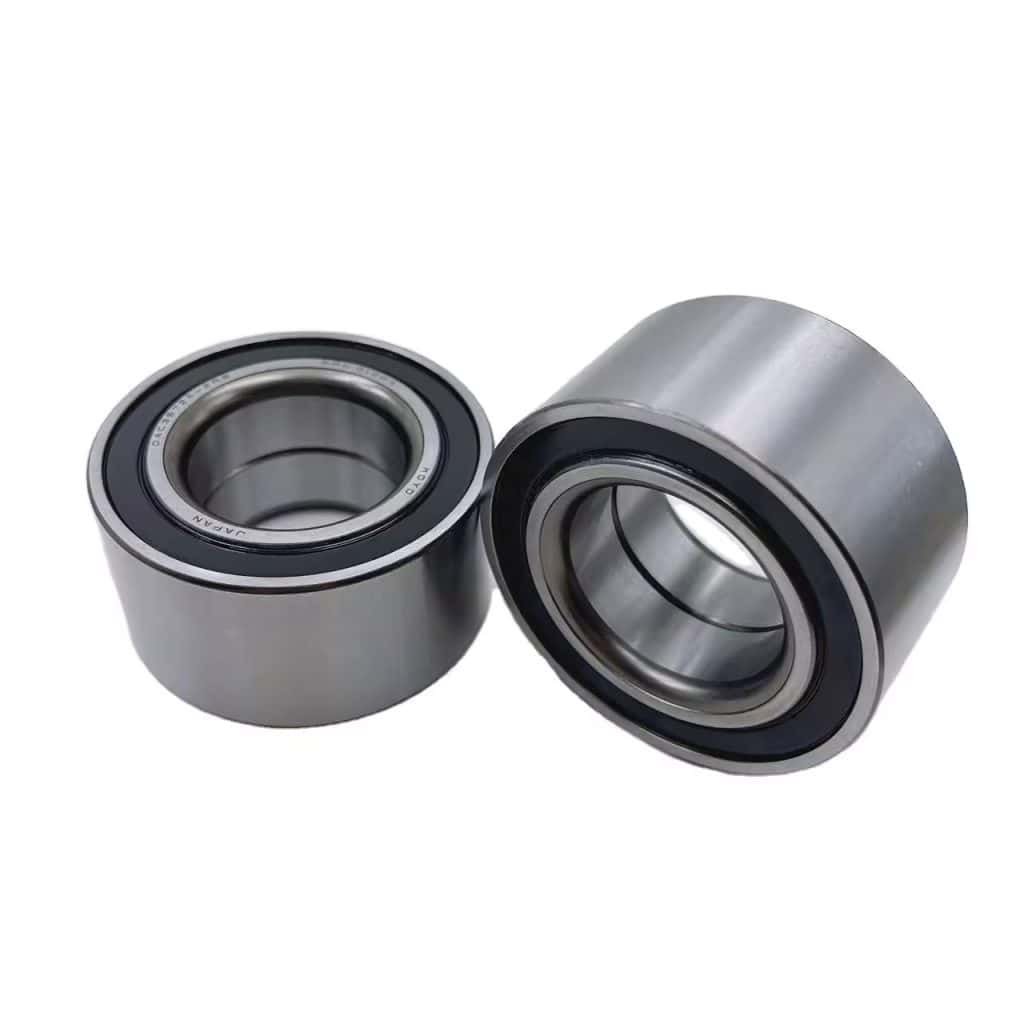

Air Conditioner Bearing 83A693
Product: AIR COMPRESSOR BEARING DAC30470021
ID: 30mm
OD: 47mm
Width: 21 mm
Weight: 0.10kg
Reference number: Koyo 83A693, Nachi 30BG04SA8G-2DS
Application: Mazda 83A693

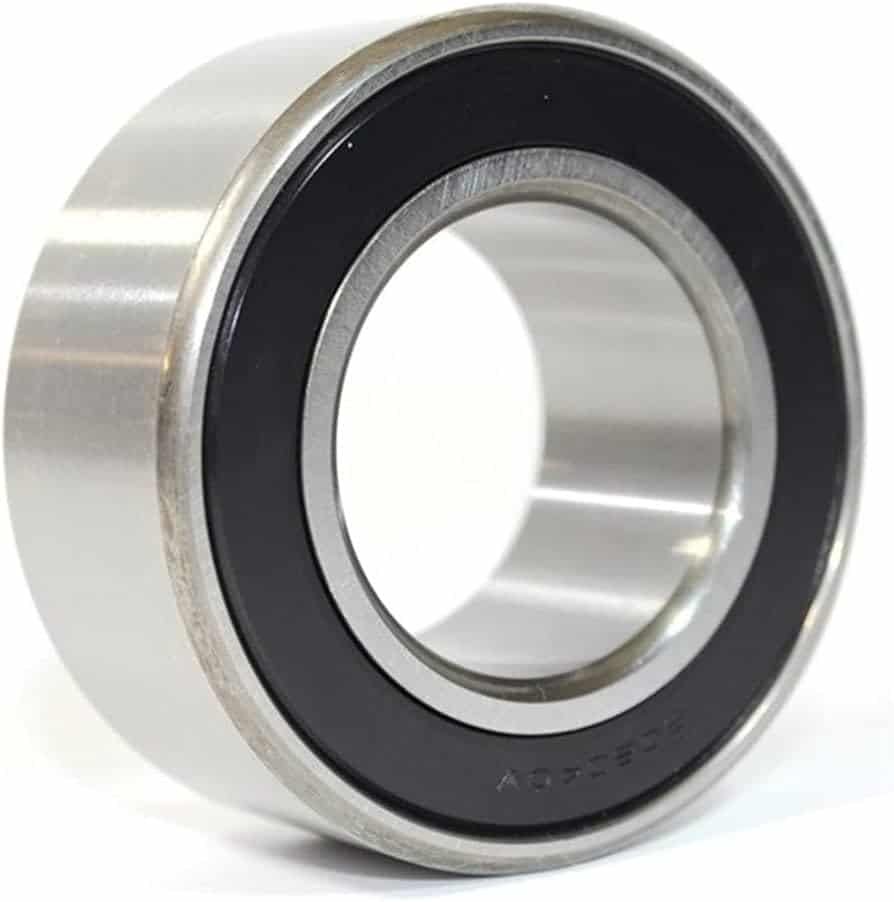

Air Conditioner Bearing 30BD4722DU
Product: AIR COMPRESSOR BEARING DAC30470022
ID: 30mm
OD: 47mm
Width: 22 mm
Weight: 0.15kg
Reference number: NSK 30BD4722DU , Nachi 30BG4S13-2DST2
Application: Toyota 30BD4722DU

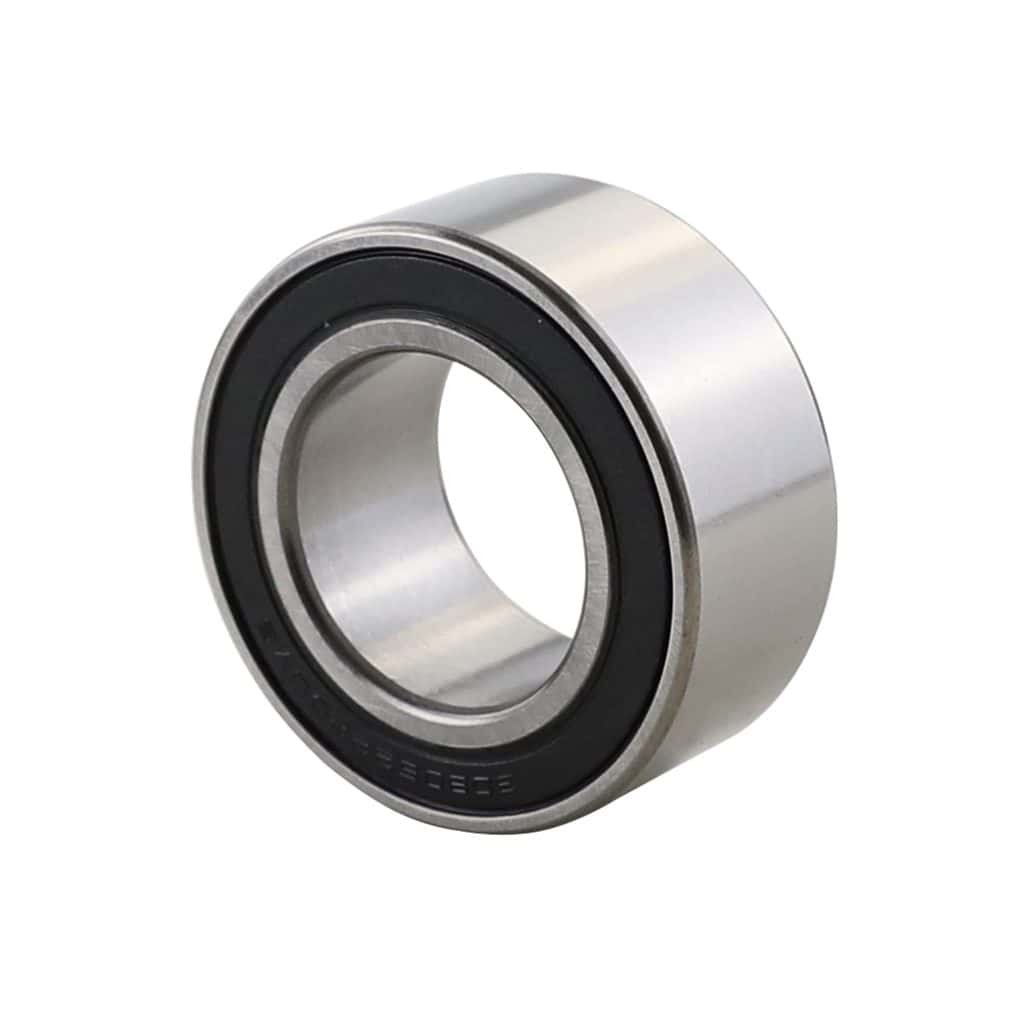

Air Conditioner Bearing 30BD5222DUM6
Product: AIR COMPRESSOR BEARING DAC30520022
ID: 30mm
OD: 52mm
Width: 22 mm
Weight: 0.17 kg
Reference number: NSK 30BD5222DUM6, Nachi 30BGS10G-2DST2
Application: Denso models A/C 222459328016
Air Conditioner Bearing 30BGS1-2NSL
Product: AIR COMPRESSOR BEARING DAC30620027
ID: 30mm
OD: 62mm
Width: 27 mm
Weight: 0.26 kg
Reference number: NSK 30BD6227DU ,Nachi 30BGS1-2NSL
Application: CHRYSLER W5206
Air Conditioner Bearing 32BD4718DUK
Product: AIR COMPRESSOR BEARING DAC32470018
ID: 32mm
OD: 47mm
Width: 18mm
Weight: 0.22 kg
Reference number: NSK 32BD4718DUK, Nachi 32BG04S3G
Application: Mazda BEARING96
Air Conditioner Bearing 32BD5220
Product: AIR COMPRESSOR BEARING DAC32520020
ID: 32mm
OD: 52mm
Width: 20mm
Weight: 0.18 kg
Reference number: NSK 32BD5220,Nachi 32BG05S1-2DST
Application: BENZ 560

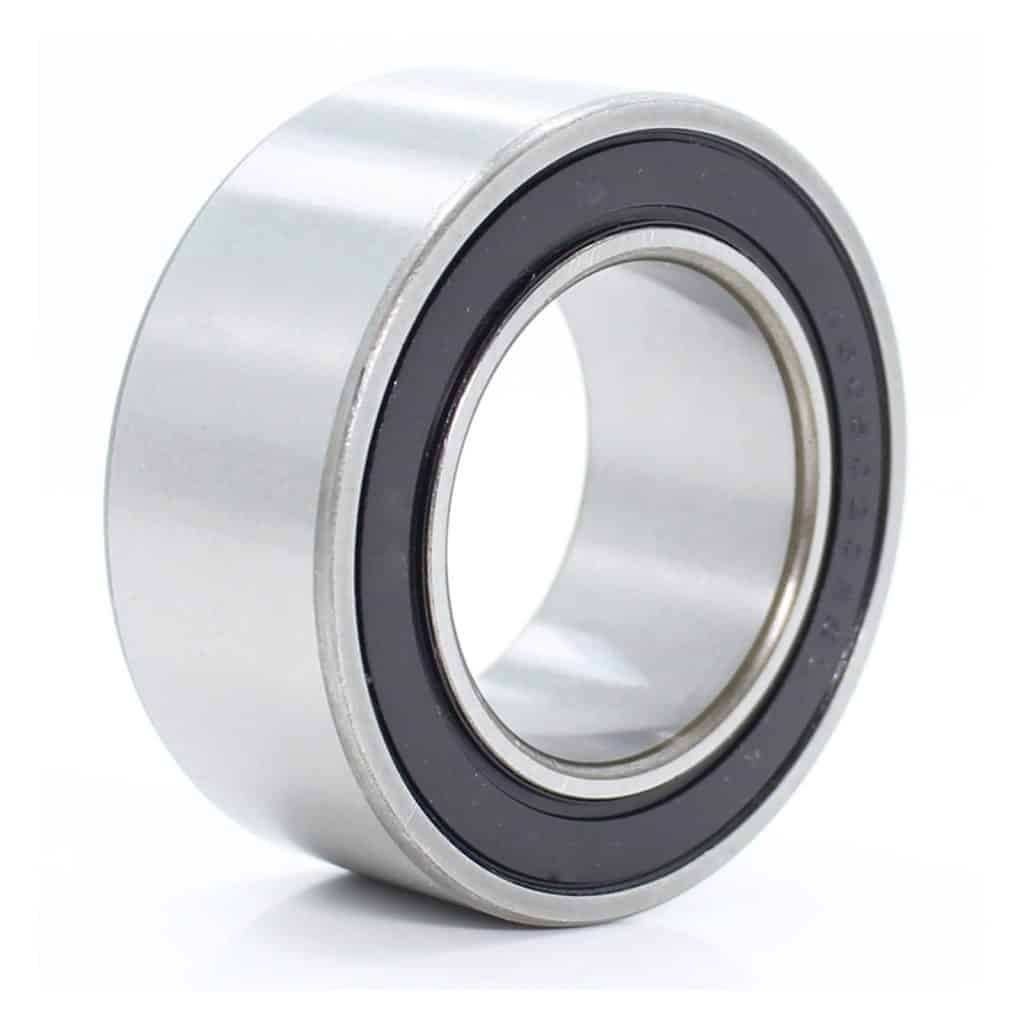

35BD5020DU Air Conditioning Compressor Bearings
Product: 35BD5020DU Air Conditioning Compressor bearing
ID: 35mm
OD: 50mm
Width: 20 mm
Weight: 0.094kg
Reference number: NSK 35BD5020DU ,NACHI 35BGS5S07G-2DS7, NTN ACB35x50x20
Application:
CVC – Harrison
SD6V12, SD7B10 – Sanden

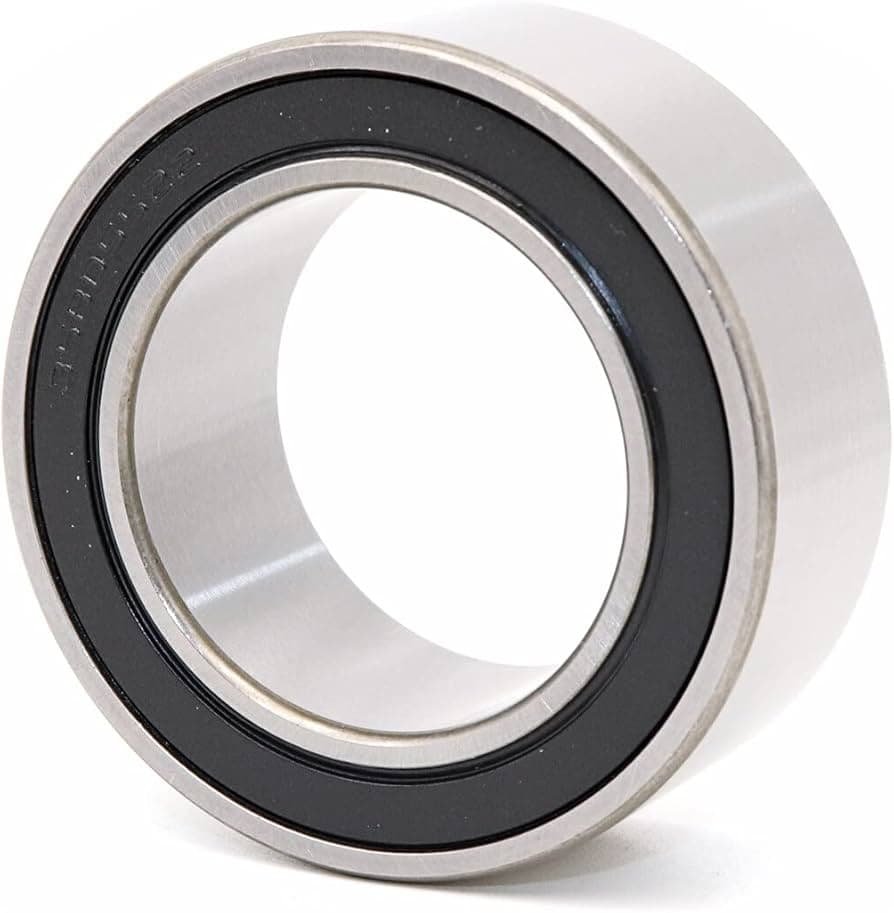

35BD5220DU Air Conditioning Compressor Bearings
Product: 35BD5220DU Air Conditioning Compressor Bearings
ID: 35mm
OD: 52mm
Width: 20 mm
Weight: 0.042kg
Reference number: NSK 35BD5220DU ,NACHI 101.011
Application:
TOYOTA PASSAT
35BG05S10G-2DS A/C Compressor Ball Bearing
Product: 35BD219DUK Air Conditioning Compressor Bearings
ID: 35mm
OD: 55mm
Width: 20 mm
Weight: 0.15kg
Reference number: NSK 35BD5520DUK ,NACHI 35BG05S10G-2DST2
Application:
TOYOTA JD CHERY 83694, 507 ,GM505
35BD6221DU Air Conditioning Compressor Bearings
Product: 35BD6221DU Air Conditioning Compressor Bearings
ID: 35mm
OD: 62mm
Width: 21 mm
Weight: 0.18kg
Reference number: NSK 35BD6221DU ,NACHI 35BG06G-2DS
Application:
Audi A6, Haval H3
35BD6224DV Air Conditioner Bearings 35mmx62mmx24mm
Product: Air Conditioner Compresser Bearings 35BD6224DV
ID: 35mm
OD: 62mm
Width: 24mm
Weight: 0.26kg
Reference number: Nachi DF0789
Application: Audi A6

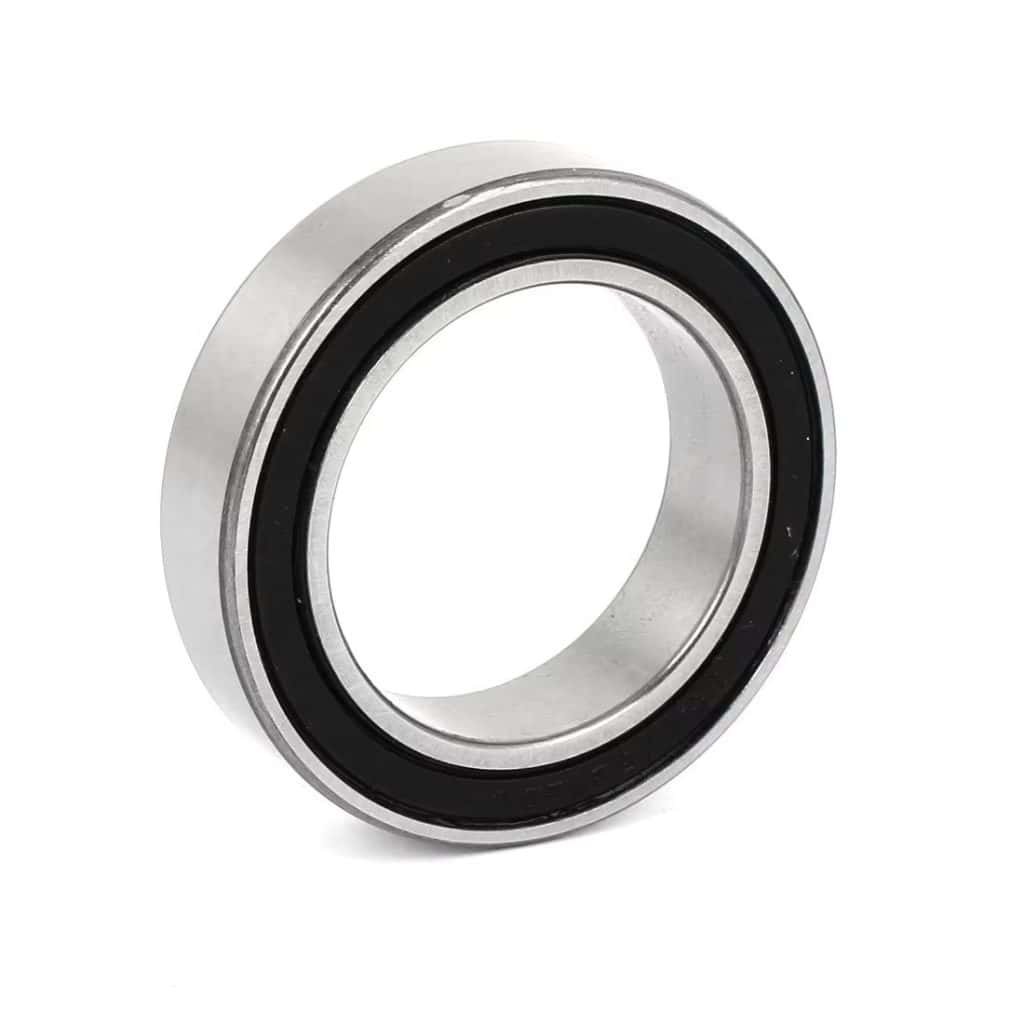

40BD5524DU Air Conditioning Compressor Bearings 40x55x24mm
Product: Air Conditioner Compresser Bearings 40BD5524DU
ID: 40mm
OD: 55mm
Width: 24mm
Weight: 0.37kg
Reference number: NSK 4608-3AC2RS, Nachi 40BGS40G
Application: Audi A4L
40BG05S2-2DS A/C Compressor Ball Bearing 40x57x24mm
Product: Air Conditioner Compresser Bearings 40BD219V
ID: 40mm
OD: 57mm
Width: 24mm
Weight: 0.43kg
Reference number: 40BD4ST12DU

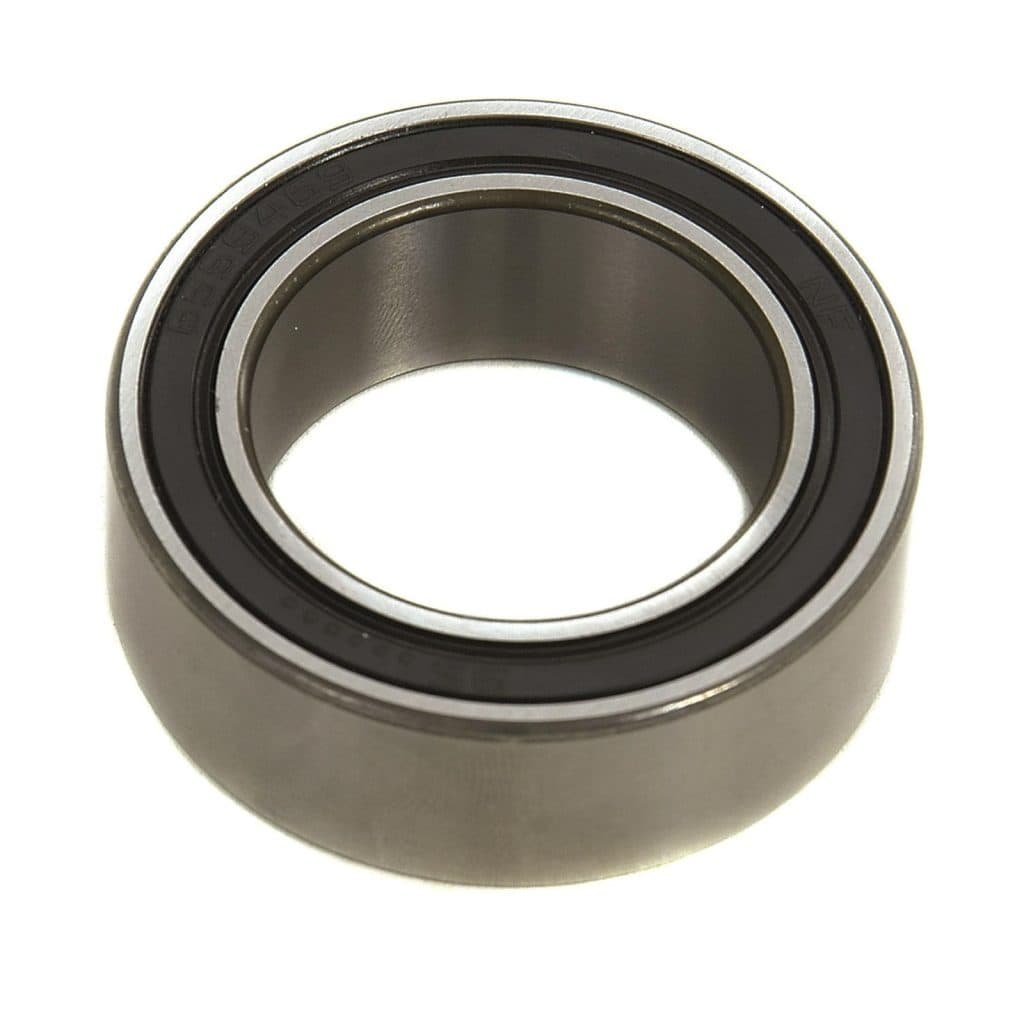

40BD6624DU Air Conditioning Compressor Bearings
Product: Air Conditioner Compresser Bearings 40BD6624DU
ID: 40mm
OD: 66mm
Width: 24mm
Weight: 0.49kg
Reference number: Nachi : 40BGS39G-2DST
Application: MITSU HYUNDAI

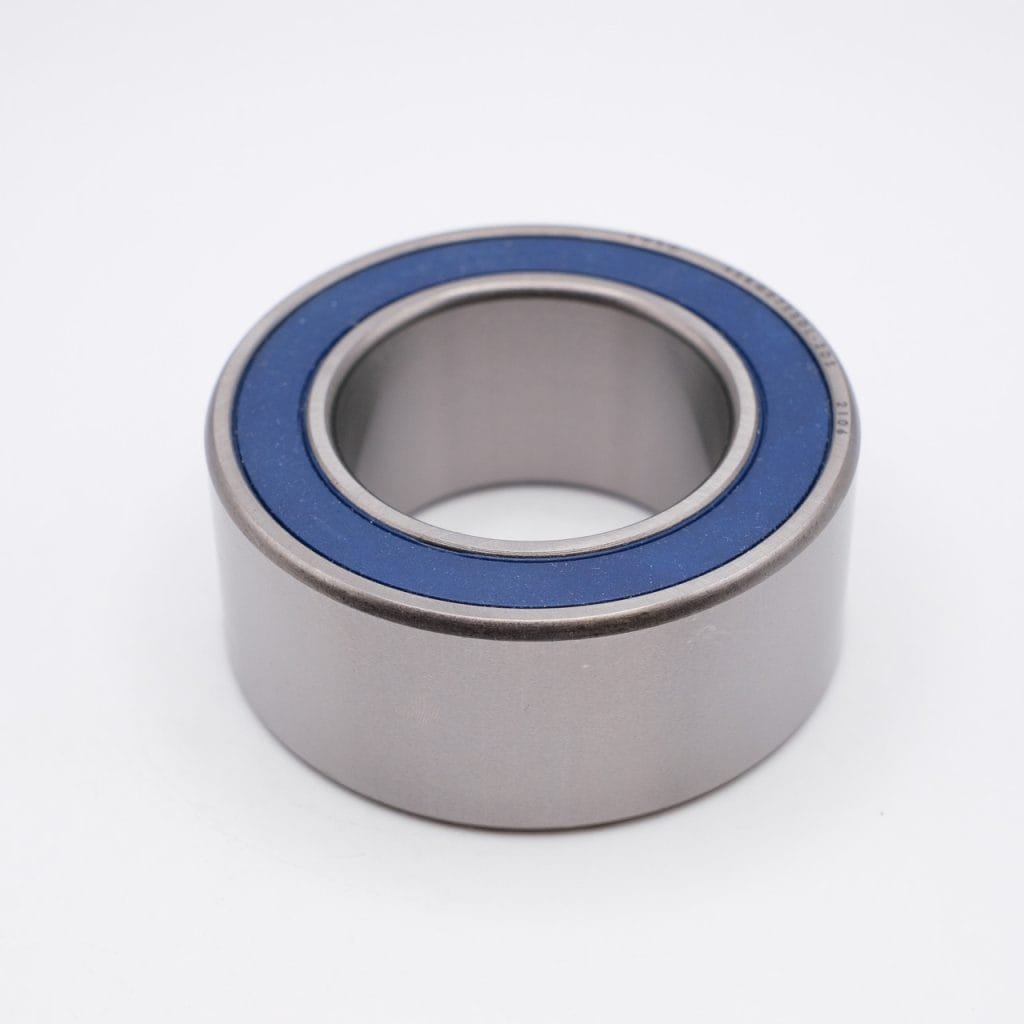

40BG06S30G-2DS, 40BD6830DUK Compressor Pulley Bearing Quality PFI 40x68x30mm
Product: Air Conditioner Compressor Bearings 40BD6830DUK
ID: 40mm
OD: 68mm
Width: 30mm
Weight: 0.51kg
Cross Reference number: PC40680030CS ,40BG06S30G-2DS, 40BD6830DUK
Application: TAMA TM31HD
Compressor Bearing Compatible With Fuso Trucks 949100-4800, 45BD7532DUK
Product: Air Conditioner Compressor Bearings 45BD7532DUK
ID: 45mm
OD: 75mm
Width: 32mm
Weight: 0.56kg
Cross Reference number: PFI PC45750032CS, Nachi 45BG07S5G-2DST2F ,Nippon denso 949100-4800, NSK 45BD7532DUK
Application: FUSO TRUCK All models
30BD4712-2DST Automotive A/C Compressor Ball Bearing
Product: Air Conditioner Compressor Bearings 30BD4712DU
ID: 30mm
OD: 47mm
Width: 12mm
Weight: 0.26kg
Cross Reference number: DG304712, DAC304700012, 30BX04S1-2DST
Application: Mazda M3

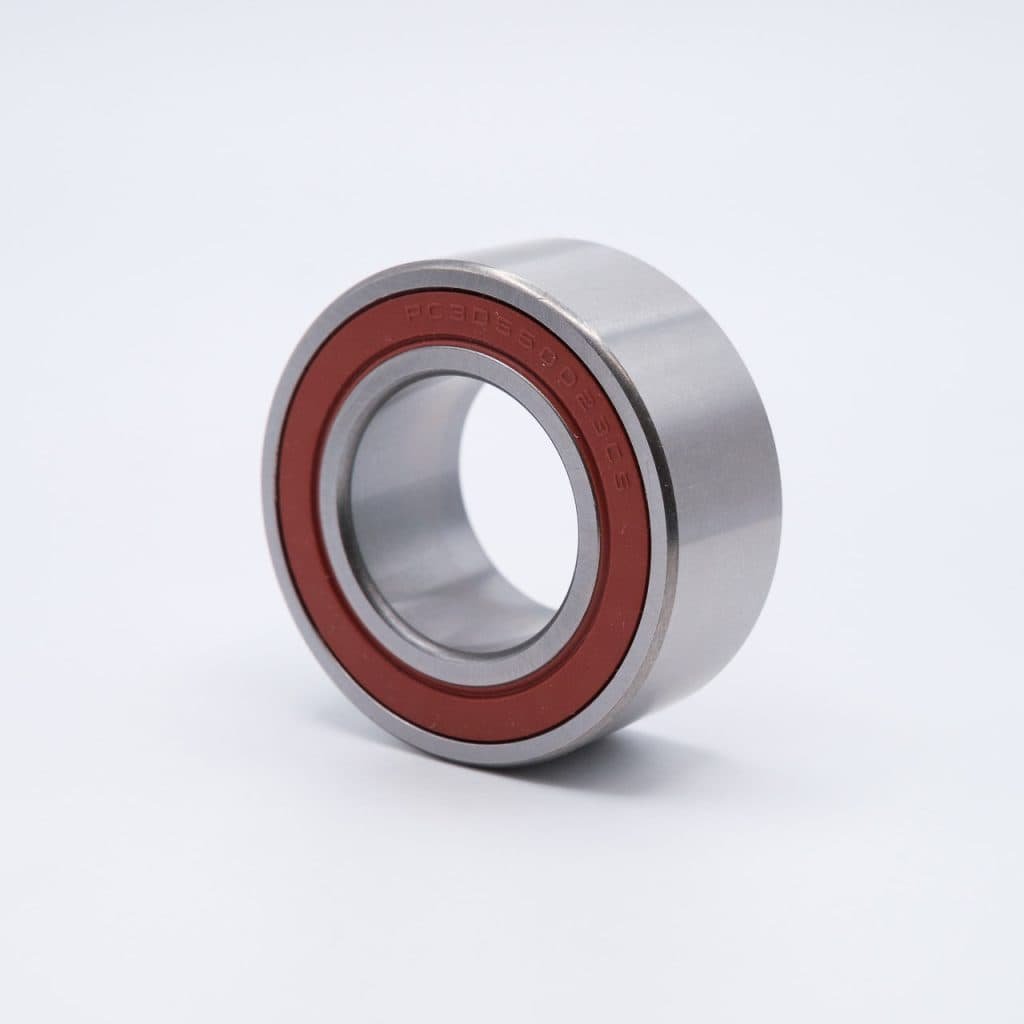

30BD4720DU Auto Conditioner Compressor Bearing
Product: Air Conditioner Compressor Bearings 30BD4720DU
ID: 30mm
OD: 47mm
Width: 20mm
Weight: 0.29kg
Cross Reference number: DAC30470020
Application: Chevrolet Malibu XL 15-22

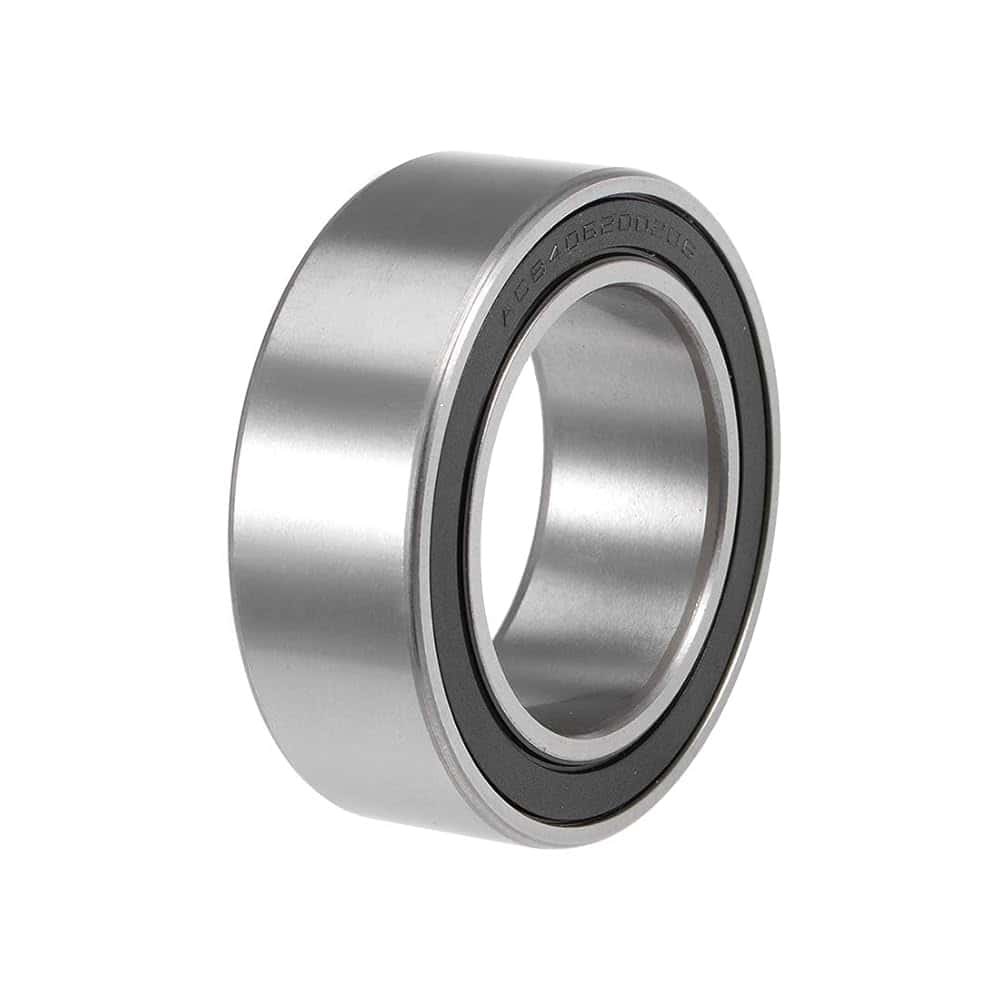

40mm x 62mm x 20.6mm A/C Compressor Bearing 907257A
Product: Air Conditioner Compressor Bearings 907257A
ID: 40mm
OD: 62mm
Width: 20.60mm
Weight: 0.34kg
Cross Reference number: 907257A, 907257 RS, 907257-2RS,83A5518
Application: GMC Jimmy (1992-2001)
GMC Savana 2500 (1996-2002)
GMC G2500 (1980-1995)
GMC G1500 (1980)
Chevrolet Venture (1997-2002)

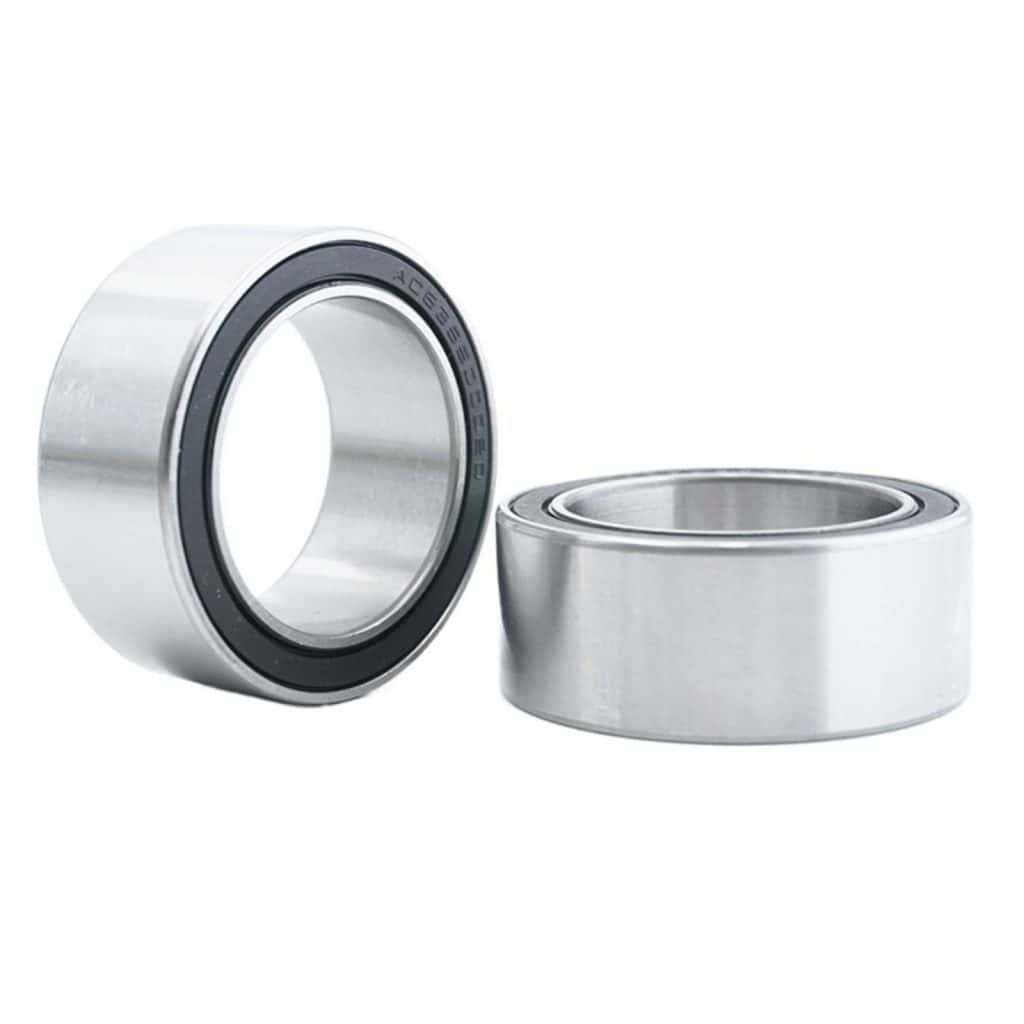

40BD219T12DDU Air Conditioner Compressor Bearing
Product: Air Conditioner Compressor Bearings 40BD219DU
ID: 40mm
OD: 62mm
Width: 24mm
Weight: 0.38kg
Cross Reference number: ACB40x62x24,83A551B4,40BD219DU
Application: MITSU SANTANA
Comprehensive Guide to Air-conditioner Compressor Bearings: Understanding Types, Manufacturing Process, and Maintenance
For more information about products, the company, or shipping, you can also check out our other FAQs!
Experience the difference with our AC compressor bearing, made for the high demands of commercial and industrial air conditioning systems. Engineered for durability and performance, these bearings ensure your compressors run smoothly and efficiently.
With reduced friction and extended wear life, they are the ideal choice for maintaining optimal operation in your HVAC systems. Trust in our bearings for a cooler, more reliable performance that keeps your business running without a hitch.
What is an Air-Conditioner Compressor Bearing?
An air conditioner compressor bearing is a specialized type of bearing designed to handle the high-speed rotational motion and support the load of compressor rotors within an air conditioning system. These bearings are crucial for the smooth operation of the AC compressor, which is responsible for circulating refrigerant and transferring heat in the system.
If a bearing fails, it can lead to compressor malfunction, which is why regular inspection and maintenance are important to ensure the longevity and proper functioning of the air conditioning system.
How Does a Compressor Bearing Work?
In a screw compressor, which is a type of machine in your air conditioner that helps cool the air, rolling bearings are super important. They’re like the precise guides that ensure the spinning parts, called rotors, stay in the right place and move the way they should, side-to-side and up and down. These bearings take the weight off the rotors, too, so they don’t get bogged down.
You’ll find these bearings at both ends of the compressor—the end where the air gets sucked in and the end where it gets pushed out. How many you need and how they’re set up can change. It all depends on how much weight they need to handle and what the compressor needs to do.
How Much Air Conditioner Compressor Bearing Cost?
On average, swapping out the bearing in your AC compressor will set you back about $20 to $100 for the part itself. If you’re paying someone to do the job, the work will cost you around $100 to $200. And for the parts you need, expect to shell out between $150 and $300.
Types of AC Compressor Bearing
Compressor bearings come in many styles, but the ones you’ll see the most are needle roller bearings and tapered roller bushings. Needle bearings are great for high-speed jobs where you want to keep friction low. Tapered bushings are good for quickly moving a lot of power, but they don’t last as long as needle bearings, especially if they get shaken or struck, like from air pressure changes.
Some companies make hybrid bearings that mix needle and tapered types into one. They have a bunch of different bearings, including ball bearings, thrust bearings, tapered roller bearings made of chromium copper, deep groove ball bearings, angular contact ball bearings, white metal Babbitt bearings, journal bearings, polymer bearings, single row angular contact bearings, tilting pad thrust bearings, and hydrodynamic bearings.
How do I know if my AC bearings are bad?
If your air compressor bearing is going bad, you’ll probably notice some of these signs:
Loud Noises
When you turn on the AC and hear a loud grinding or squealing noise, it’s often a sign that the bearing is worn out.
AC Isn’t Cold
If the AC isn’t blowing cold air, it could be because the compressor isn’t working right due to a bad bearing.
Compressor Clutch Not Moving
The compressor has a clutch that engages and disengages it. If the bearing is bad, the clutch might not move like it should.
Metal Shavings
If you find metal shavings around the compressor, it’s a sign that something inside, like the bearing, is breaking down.
Car Vibrates
A failing bearing can cause your whole car to vibrate, especially when the AC is on.
Can You Replace a Bearing on an Air Compressor Bearing?
When swapping out bearings in a compressor, you often have to remove the end cover, which lets the refrigerant out. It’s quicker and simpler to just pull the whole compressor and fix it on a workbench. Usually, the issue is that the clutch bearing is worn out.
Why BYWB Bearing is the Best Choice for Air Conditioner Compressor Bearing?
Are you looking for a reliable and budget-friendly AC compressor bearing? Check out BYWB Bearing. We’re not just about the usual stuff; we can custom-make bearings to fit your needs.
We’re proud to offer various bearings at great prices, thanks to our strong ties with leading suppliers. Here’s why BYWB stands out:
- A huge selection of bearings
- Built to meet ISO standards
- We keep 40% of our bearings in stock, ready to go
- Low minimum order quantity – you can get standard items starting from just 100 pieces
- Top-notch materials like 304 stainless steel and GCR15
- A solid two-year warranty on our products
- Customization to fit your specific needs
- We serve customers in over 20 countries
Some Maintenance Tips!
To keep your air conditioner compressor bearings running smoothly for a long time, follow these simple tips:
Lubrication
Just like oil in a car, the bearings need to be lubricated to reduce friction. Use the proper lubricant and follow the manufacturer’s instructions on how often to apply it.
Regular Check-Ups
Have a professional check your air conditioner regularly. They can spot issues before they become big problems.
Listen for Noises
Pay attention to any strange noises coming from your AC. Grinding or squealing could mean the bearings are in trouble.
Replace Filters
Keep your air filters clean. Dirty filters make the compressor work harder, which can put extra stress on the bearings.
Proper Installation
If bearings are replaced, make sure they’re installed correctly. Poor installation can lead to early failure.
Watch for Leaks
Refrigerant leaks can cause the compressor to overheat, which isn’t suitable for the bearings.
Air Compressor Bearing Size Chart
| AIR COMPRESSOR BEARING | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| BEARING NO. | Dimensions(mm) | ||||||||
| Model | Model | Application | |||||||
| BYWB No. | NACHI | d | D | B | C | ||||
| 30BD4718DU | / | Mazda 83A693A KOYO | 30 | 47 | 18 | 18 | |||
| 83A693 | 30BG04SA8G-2DS | Mazda 83A693 KOYO | 30 | 47 | 21 | 18 | |||
| 30BD4722DU | 30BG4S13-2DST2 | TOYOTA | 30 | 47 | 22 | 22 | |||
| 30BD5220DU | 101.007 | TOYOTA 101.007 | 30 | 52 | 20 | 20 | |||
| 30BD5222DUUM6 | 30BGS10G-2DST2 | Ford Honda HONGDA TOYOTA | 30 | 52 | 22 | 22 | |||
| 30BD40DU | 30BG05S5G-2DS | Ford BLUEBIRD | 30 | 55 | 23 | 23 | |||
| W5206 | 30BGS1-2NSL | Chrysler | 30 | 62 | 27 | 27 | |||
| 32BD4718DUK | 32BG04S3G | Mazda 96BEARING CHANGAN | 32 | 47 | 18 | 18 | |||
| 2TS2-DF0676H | / | BENZ 560 | 32 | 52 | 20 | 18 | |||
| 32BD45DU | 32BG05S1-2DST | MITSU MAZDA 959 XIALI | 32 | 55 | 23 | 23 | |||
| 35BD4820DUM6 | / | TOYOTA | 35 | 48 | 20 | 20 | |||
| 35BD5020DU | 35BGS5S07G-2DS7 | MITSU 706/ | 35 | 50 | 20 | 20 | |||
| 35BD5212DU | 35BD5212DU | 35 | 52 | 12 | 12 | ||||
| 35BD5220DU | 101.011 | TOYOTA PASSAT | 35 | 52 | 20 | 20 | |||
| 35BD5222DFX7 | 35BD5222DFX7 | PASSAT | 35 | 52 | 22 | 22 | |||
| 35BD5223DU | 35DG05S6G | TOYOTA | 35 | 52 | 23 | 23 | |||
| 35BD219DU | 35BG05S10G-2DST2 | TOYOTA JD CHERY 83694, 507 ,GM505 | 35 | 55 | 20 | 20 | |||
| 35BD6221DU | 35BG06G-2DS | 35 | 62 | 21 | 21 | ||||
| 35BD6224DV | DF0789 | AUDI A6 V6 | 35 | 62 | 24 | 24 | |||
| 35BD210DDV | / | 35 | 62 | 28 | 28 | ||||
| 38BD5417DU | 38BG05S2G-2DS | DAEWOO/SUZUKI | 38 | 54 | 17 | 17 | |||
| 101.007 | 30 | 52 | 20 | ||||||
| 101.008 | 101.008 | TOYOTA | 38 | 62 | 24 | 24 | |||
| 101.011 | 35 | 52 | 20 | ||||||
| 101.006 | 35 | 52 | 22 | ||||||
| 40BD5524DU | 40BGS40G | AUDI 100 | 40 | 55 | 24 | 24 | |||
| 40BD45DU | / | NISSAN SANTANA | 40 | 57 | 24 | 24 | |||
| 40BD49 | 40BG05S2G-2DS | AUDI 100 | 40 | 57 | 24 | 20 | |||
| 40BD219V | 40BG05S1DS | MITSU SANTANA | 40 | 57 | 24 | 24 | |||
| 40BD49DUK8A | 6557684/6559496 | BUICK | 40 | 62 | 20.6 | 20.6 | |||
| 40BD49AWT12DDU | 40BGS12G-2DS | TOYOTA FORD AUDI 80 | 40 | 62 | 24 | 20.6 | |||
| 40BD219DU | 40BGS35G-2DST | CHRYSLER FORD MAZDA 508 | 40 | 62 | 24 | 24 | |||
| 40BD6624DU | 40BGS39G-2DST | MITSU HYUNDAI | 40 | 66 | 24 | 24 | |||
| 40BD6830DUK | / | /32C BUS | 40 | 68 | 30 | 30 | |||
| DF0957 | / | 45 | 68 | 20 | 20 | ||||
| DF0954 | 45 | 68 | 20 | 20 | |||||
| 45BD7532DU | 45BG07S5G-2DST | 30C BUS | 45 | 75 | 32 | 32 | |||
| 5210-2RS | BUS | 50 | 90 | 30 | 30 | ||||
| 75BG02GS | 75BG02GS | BUS | 75 | 130 | 50 | 50 | |||
| 30BD4712DU | 30 | 47 | 12 | ||||||
| 30BD4720DU | 30 | 47 | 20 | ||||||
| NUP210E | BUS | 90 | 50 | 20 | |||||
| 907257A | 40 | 62 | 20.625 | ||||||
Conclusion
Taking care of your air compressor bearing is key to keeping your AC running smoothly and efficiently. Regular maintenance, proper lubrication, and timely checks can go a long way in extending the life of your AC bearings. Remember, a little attention can prevent big problems down the road.
If you need top-quality bearings for your air conditioner, you can trust BYWB Bearing to have what you need. With our reliable and durable bearings, you’ll have peace of mind knowing your AC is in good hands!
© COPYRIGHT NOTICE
Copyright of the pictures belong to the owner, not allow to copy or use without permission, the owner have the rights to pursue legal action, if you find infringement, please email us we will handle or remove immediately.
Get A Quote Now !
Air Conditioner Bearing 30BD4718DU
Product: AIR COMPRESSOR BEARING DAC30470018
ID: 30mm
OD: 47mm
Width: 18 mm
Weight: 0.098kg
Reference number: NSK 30BD4718DUM1, Nachi 30BG04S8G-2DS
Application: TOYOTA YARIS 1.5 NCP91 88310-52481 8831052202
