Miniature Ball Bearing Manufacturer
We deal in miniature ball bearings of all kinds and sizes in various materials to meet your needs. Connect to us for OEM/ ODM services to ensure you get exactly what suits your requirements.
Ask for A quick quote
We will contact you within 1 working day, please pay attention to the email with the suffix “@bywbbearing.com”
Top Miniature Ball Bearing Reviews
Let us review some of the top Miniature Ball Bearings that we provide to our customers.
Miniature Bearing 682 size 2mmx5mmx1.5mm
Reference number: 618/2, L-520, MR682, R-520
ID: 2mm
OD: 5mm
Width: 1.50mm
Weight: 0.15g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed:
Grease Lubrication: 98,000 RPM
Oil Lubrication: 110,000 RPM

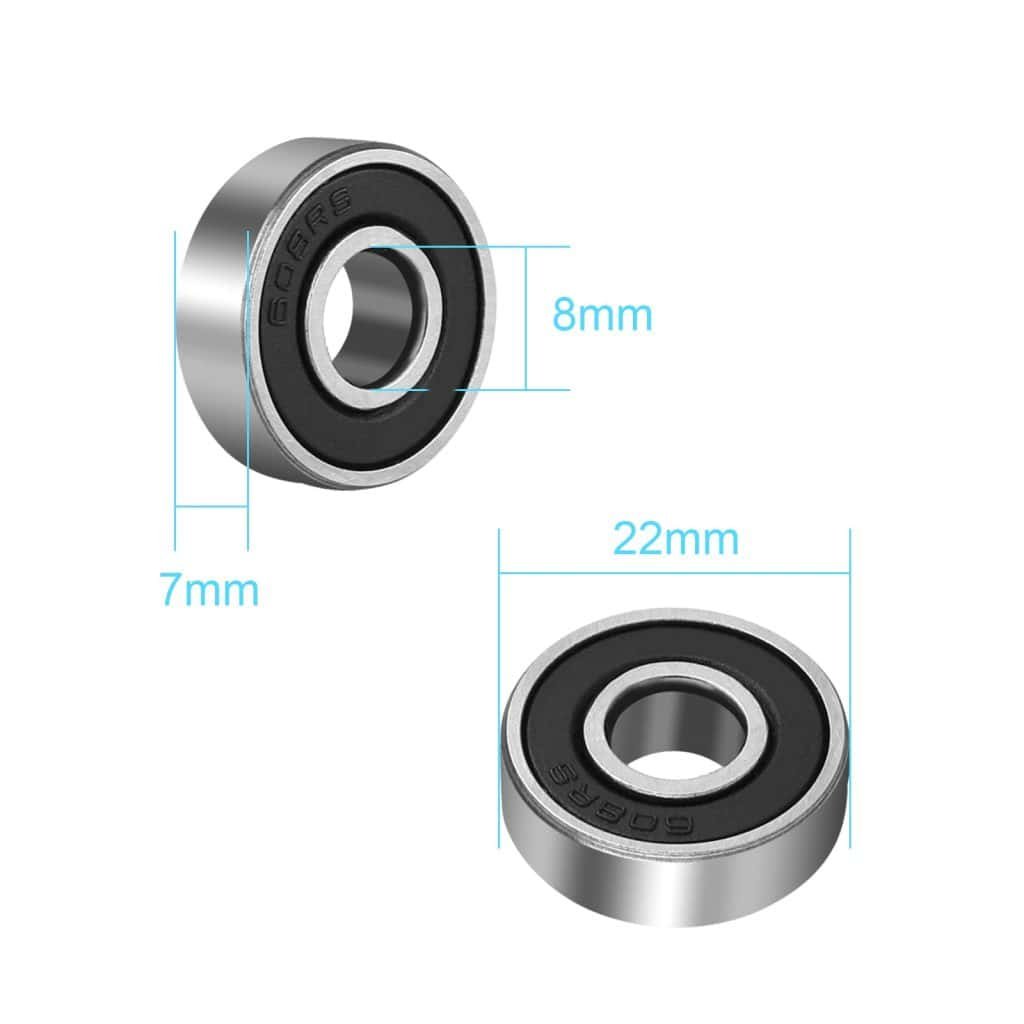

10 Pack 608-RS Ball Bearing 8x22x7mm
Reference number: 608RS, MR608-2RS, 38PP, R2280-2RS, R2280LL, 608.2RS1, 608-2NSE, 608LLB, 608DDU, 608-2NSL, 608VV, 608FF, 9908, 5972K501, 49DD46, 608-2RSPRX, 31171504, 97038RS, 9036RSN
ID: 8mm
OD: 22mm
Width: 7mm
Weight: 15g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 34,000 RPM
Miniature Bearing 623ZZ
Reference number: R1030ZZ, L-1030ZZ , 623Z, 623.2ZJ1, 623-2Z , 623SS, MR623ZZ
ID: 3mm
OD: 10mm
Width: 4mm
Weight: 0.20g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 52,000 RPM

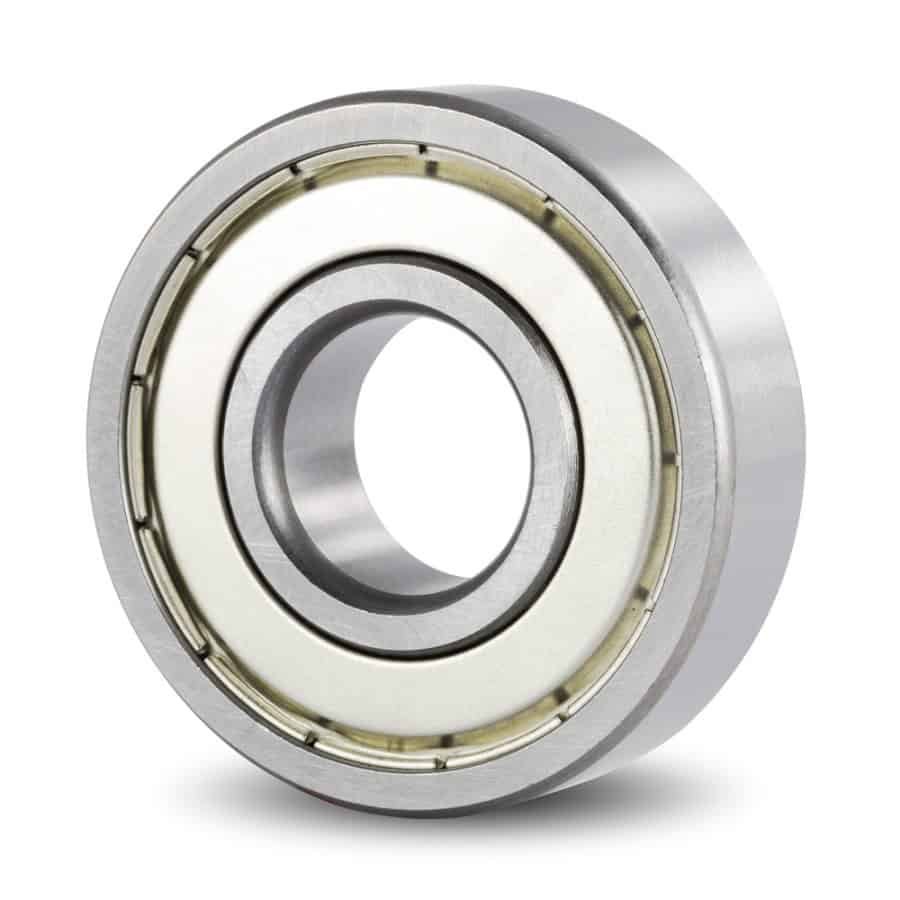

Mini Bearing MR104ZZ
Reference number: MR104CZZ, SSL-1040ZZCGR, MR-104CZZ, R-1040ZZCG, WML1040ZZGC
ID: 4mm
OD: 10mm
Width: 3mm
Weight: 1.0g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 48,000 RPM

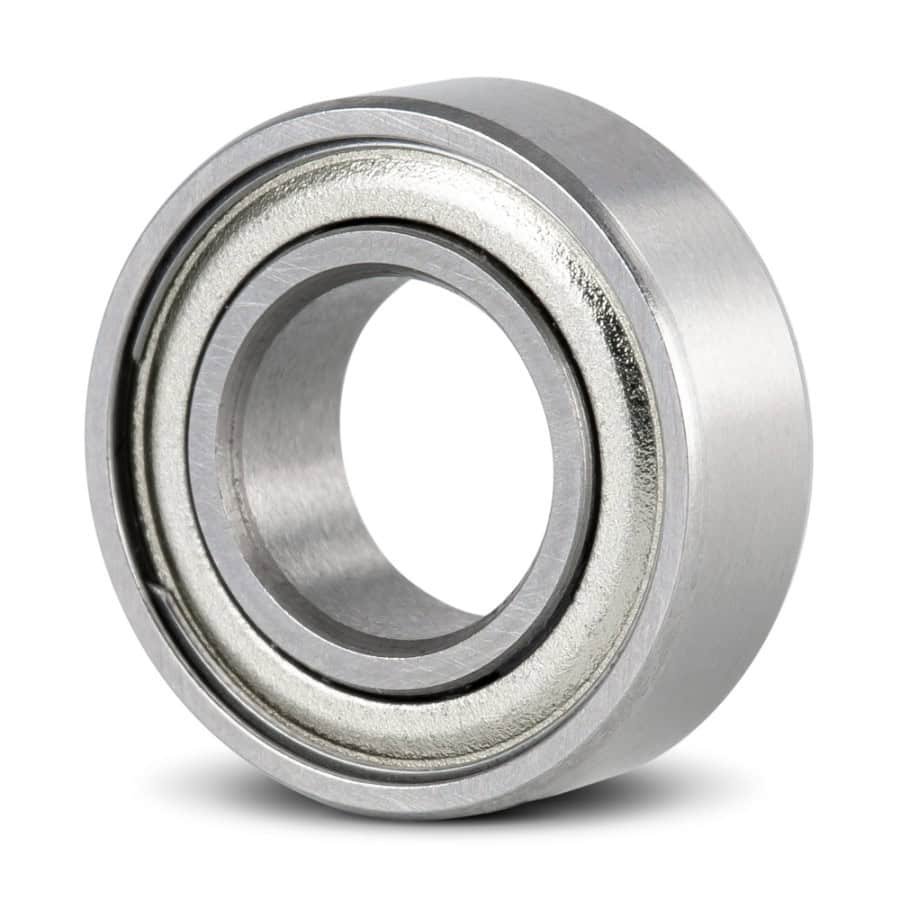

Small MR105 Ball Bearings 5mmx10mmx3mm
Reference number: L1050ZZ, MR-105Z, R1050ZZ, WML5010ZZ, H60063, MR105ZZ, MR105.2Z
ID: 5mm
OD: 10mm
Width: 3mm
Weight: 0.88g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Oil Lubrication: 50,000 RPM
628-2RS Miniature Ball Bearing 8x24x8mm Rubber Sealed
Reference number: 628RS, 628DDU, 628LLU, 628VV, 628LLB, 628-2RU, MR628-2RS, 628.2RS1
ID: 8mm
OD: 24mm
Width: 8mm
Weight: 16g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 28,000 RPM

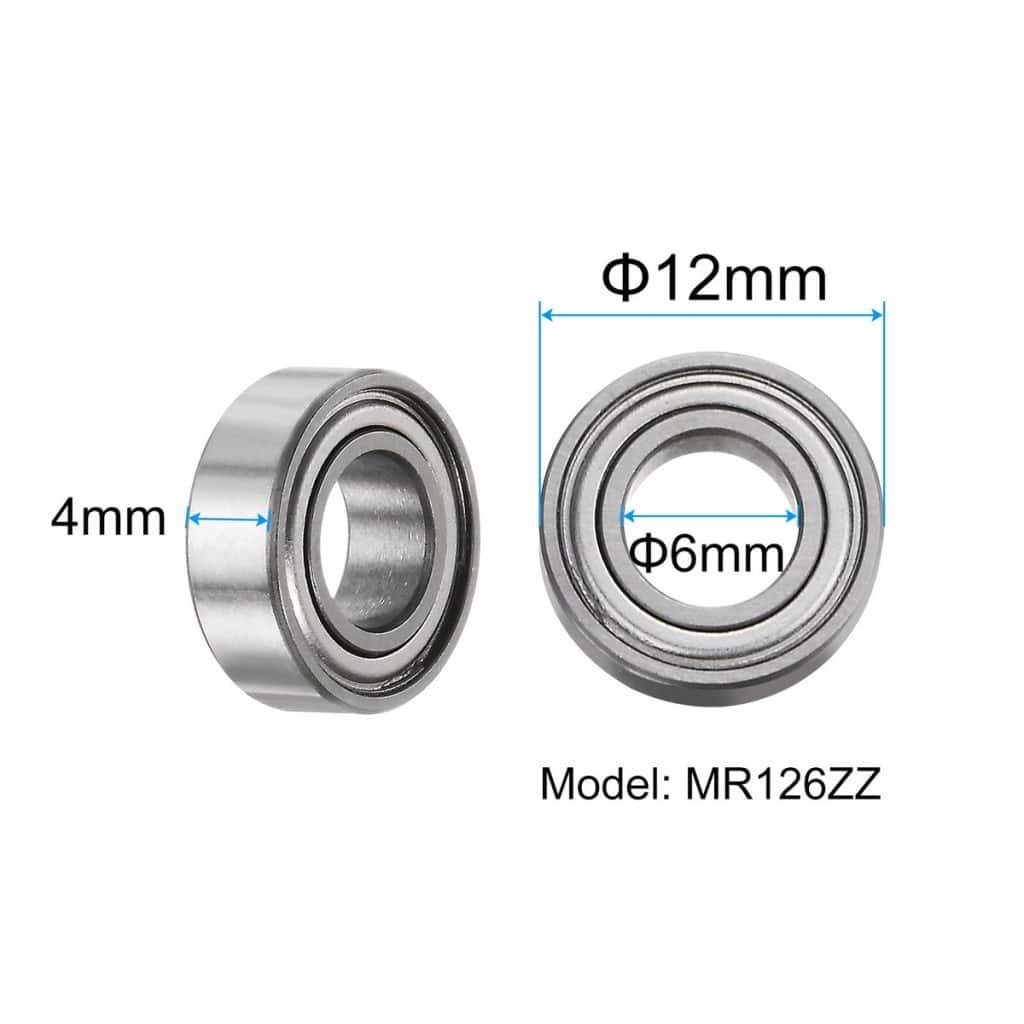

MR126ZZ Shielded Miniature Bearing 6mmx12mmx4mm
Reference number: MR126Z, L-1260ZZ, MR126.2ZJ1, R-1260ZZ, WML6012ZZ, H50065
ID: 6mm
OD: 12mm
Width: 4mm
Weight: 1.5g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 49,000 RPM

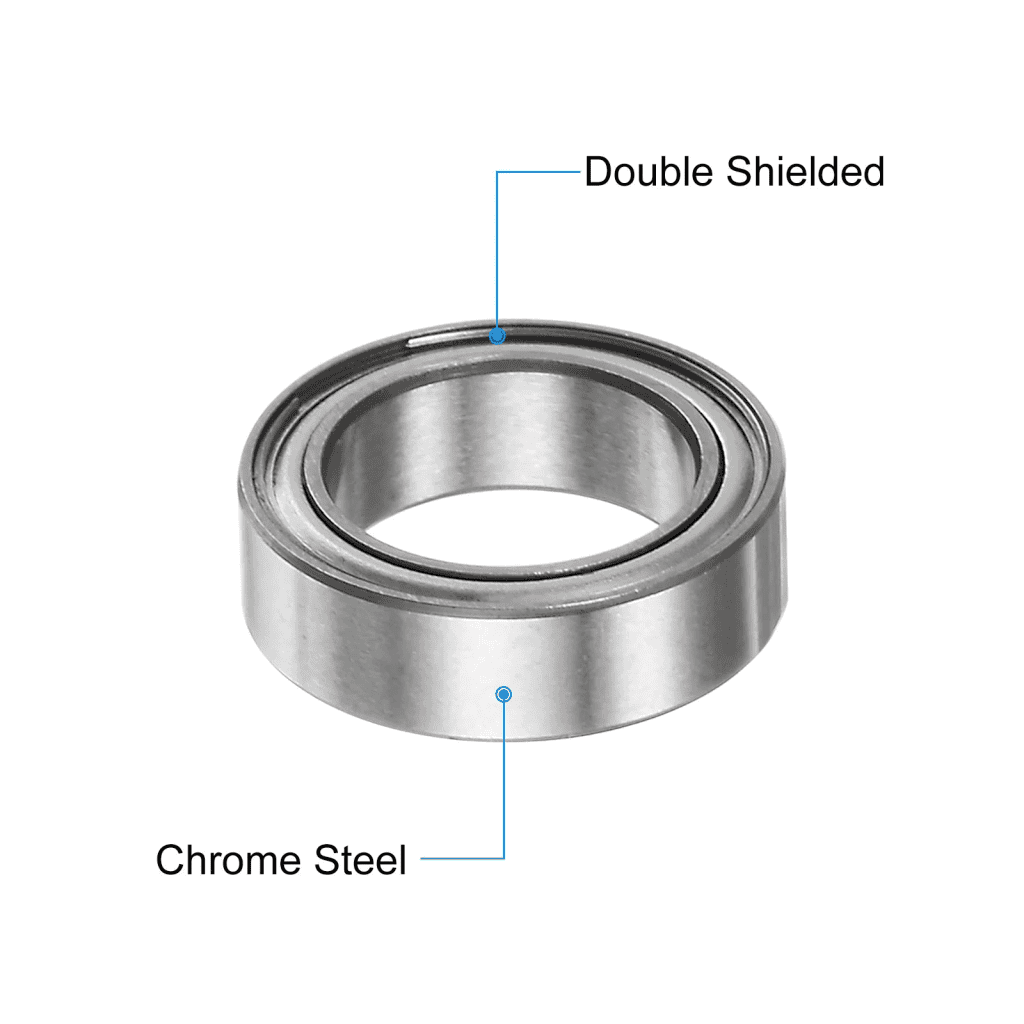

MR128ZZ Shielded Ball Bearings 8mm x 12mm x 3.5mm
Reference number: WML8012ZZ,MR128ZZS, L-1280ZZ
ID: 8mm
OD: 12mm
Width: 3.5mm
Weight: 0.75g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 40,000 RPM

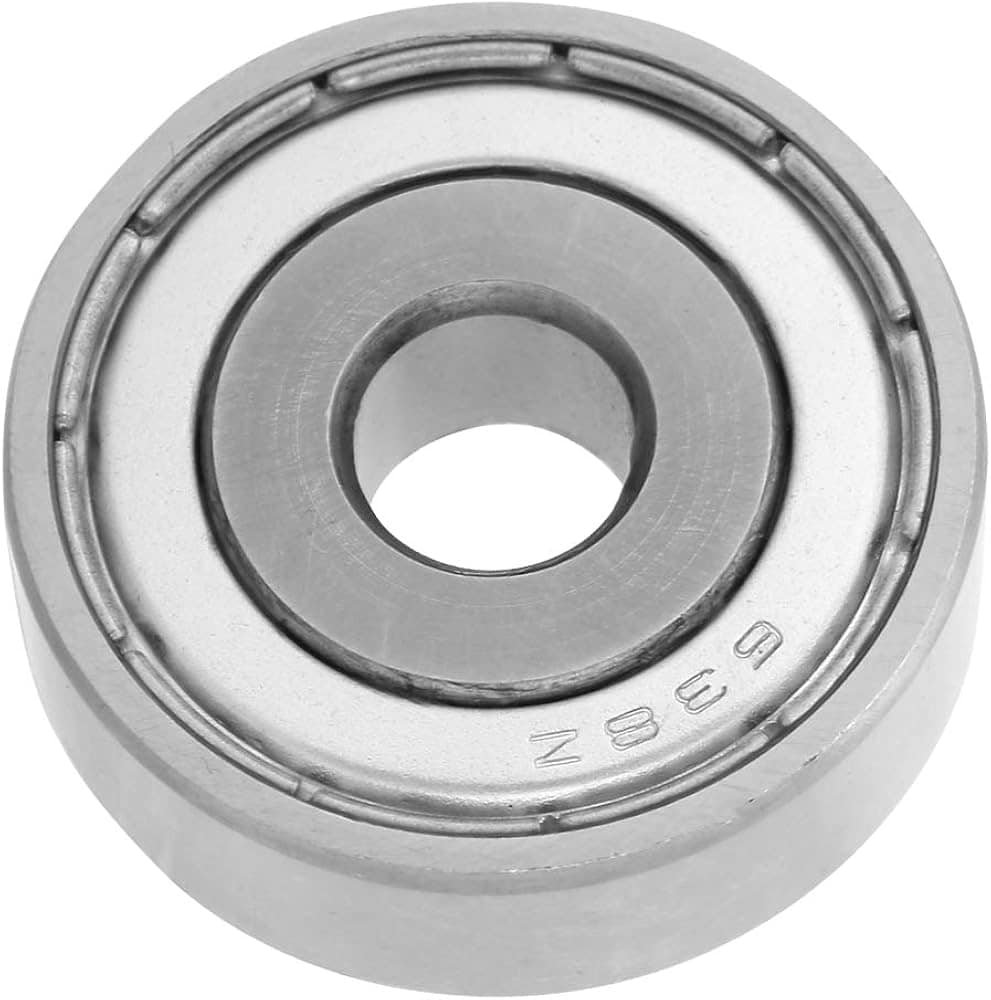

638-ZZ Shielded Miniature Ball Bearing 8x28x9mm
Reference number: MR638-ZZ, 638-ZZ, 638ZZ, 638-2Z
ID: 8mm
OD: 28mm
Width: 9mm
Weight: 30g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 30,000 RPM

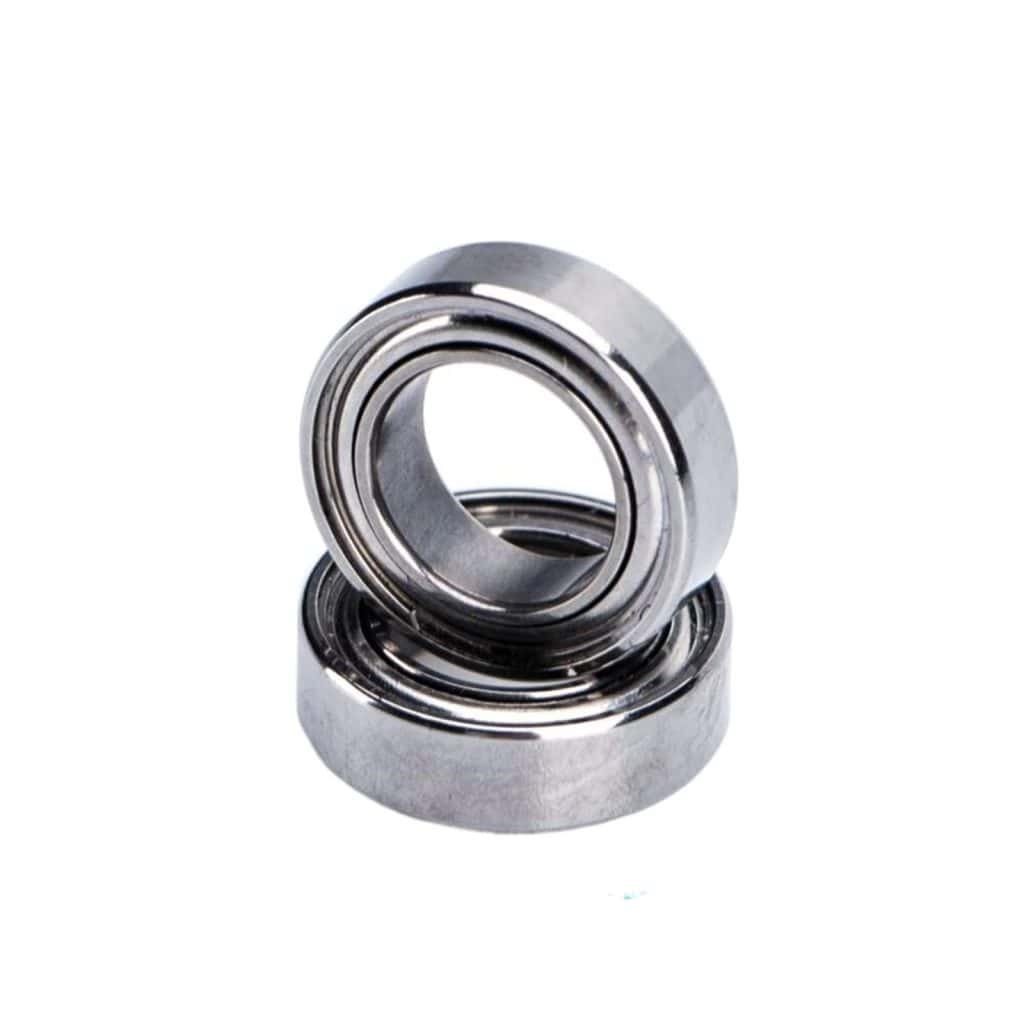

MR169-ZZ Mini Ball Bearing 9x16x5 Shielded
Reference number: 679-ZZ-16, MR169Z, L-1690ZZ, R-1690ZZ, WML9016ZZ, H60002
ID: 9mm
OD: 16mm
Width: 5mm
Weight: 15g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 38,000 RPM
609ZZ Miniature Ball Bearing 9x24x7
Reference number: 609Z, 609ZZ, MR609-ZZ, 609.2Z1
ID: 9mm
OD: 24mm
Width: 7mm
Weight: 16g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 30,000 RPM
629-2RS Mini Ball Bearing 9x26x8 Sealed
Reference number: 629DDU, 629DD, 629RS, 629LLU, 629VV, 629LLB, 629.2RS, 629RU, 629-2SNE, 39PP, 39LL, 1LO37, 39NPP, 39ZZ, 629LLB, 039750001020, 6153K73, MR629-2RS
ID: 9mm
OD: 26mm
Width: 8mm
Weight: 19g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 30,000 RPM

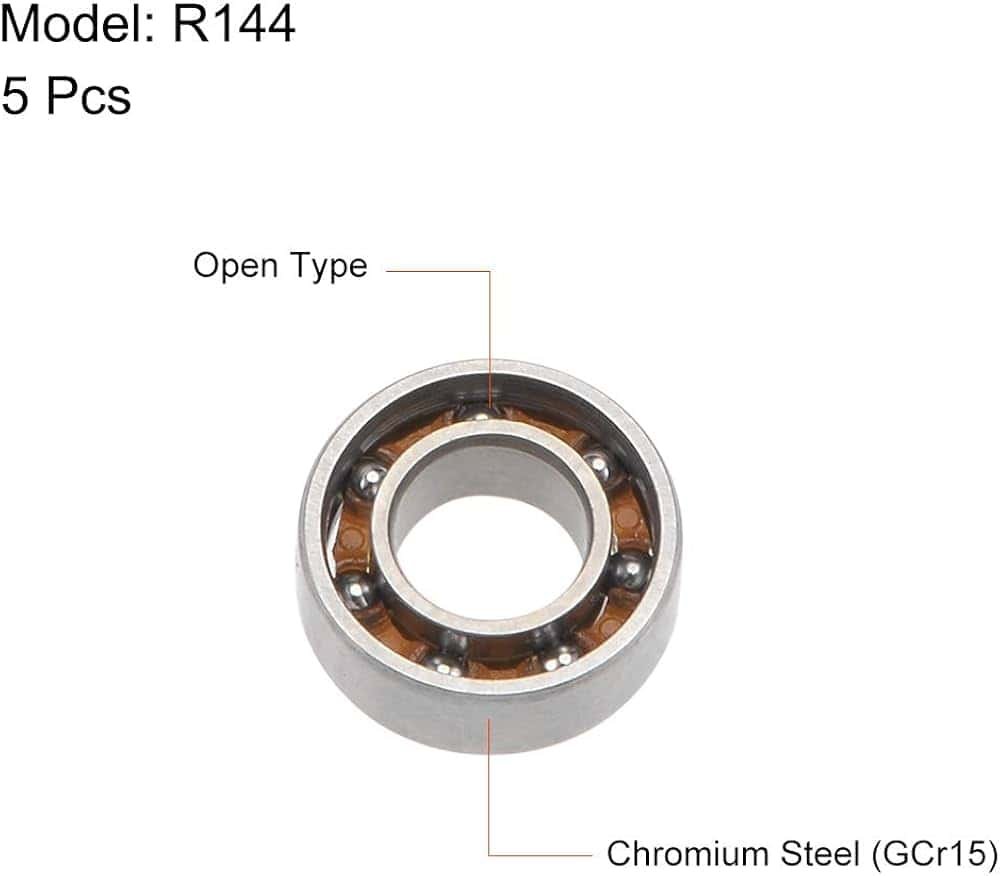

1/8 Bore R144 Mini Ball Bearing
Reference number: R144, RI-418, S418C, R-144, UL4008X
ID: 1/8″
OD: 1/4″
Width: 3/32″
Weight: 0.1g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 80,000 RPM

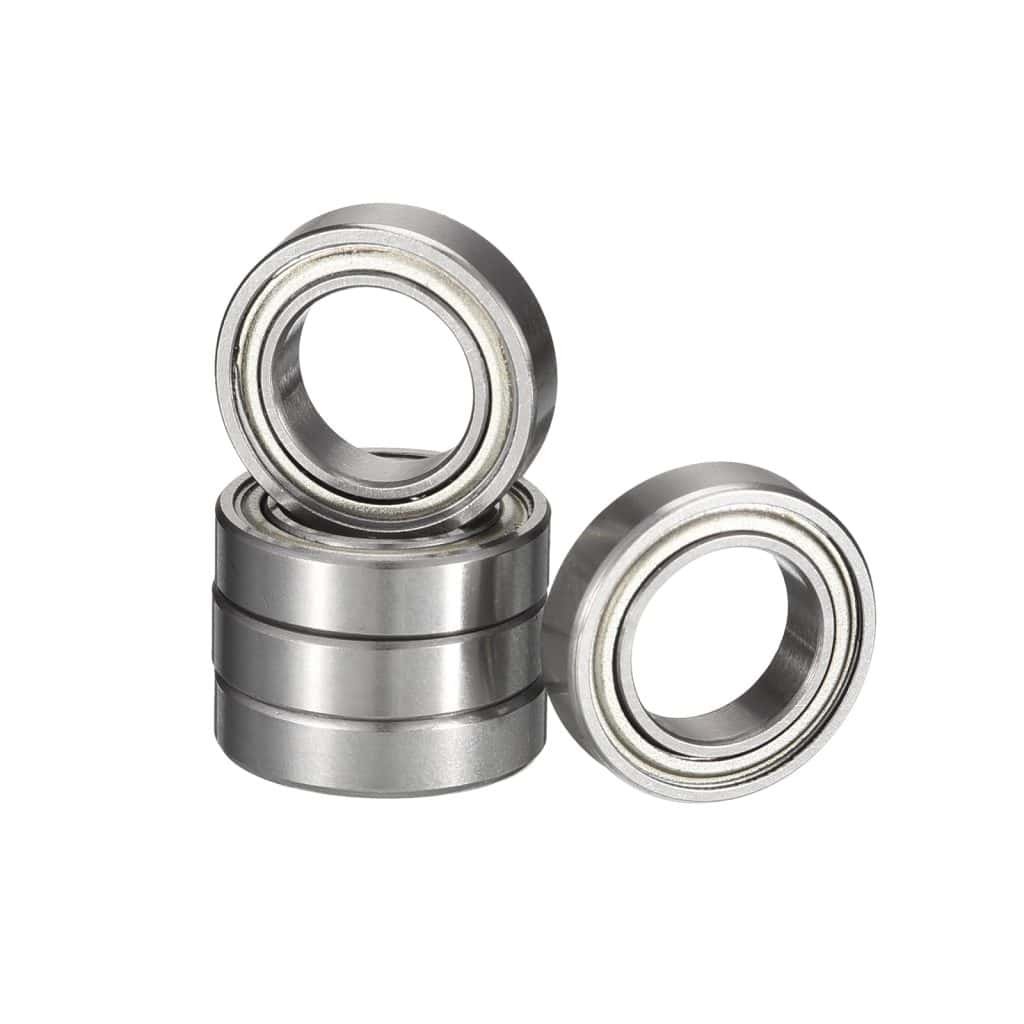

3/32 Bore R133ZZ Mini Ball Bearing
Reference number: R133ZZ, R133Z, RI-3332ZZ, S3332CHH, R133SS, ULZ3006X, R133PP, 77R133
ID: 3/32″
OD: 3/16″
Width: 3/32″
Weight: 0.1g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 80,000 RPM

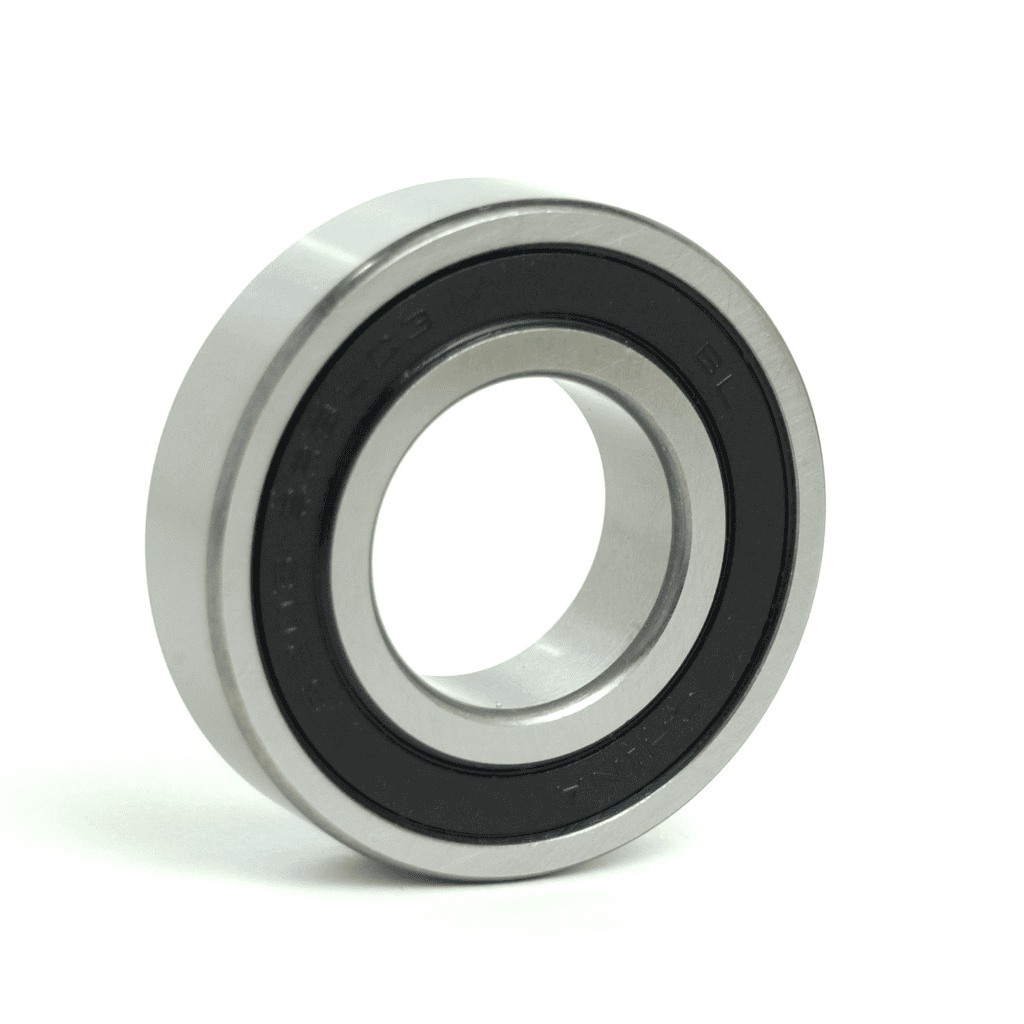

R155-2RS Mini Ball Bearing
Reference number: RI5532DD, RI-5532-2RS, 5632CDD, R155FF, UL5010X, R155RS , R155LL , R155-2RS, R155RS, 99R155, 5532CHH
ID: 5/32″
OD: 5/16″
Width: 1/8″
Weight: 0.95g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 53,000 RPM
R166-ZZ Miniature Ball Bearing 3/16 Bore
Reference number: RI6632ZZ, RI-6632ZZ, SSRI6632ZZ, S6316CHH, R166SS, ULZ6012X, R166ZZ, R166Z, R166 2Z, R166 ZZ ,77R166, R166PP, 6316CHH
ID: 3/16″
OD: 3/8″
Width: 1/8″
Weight: 1.5g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 50,000 RPM

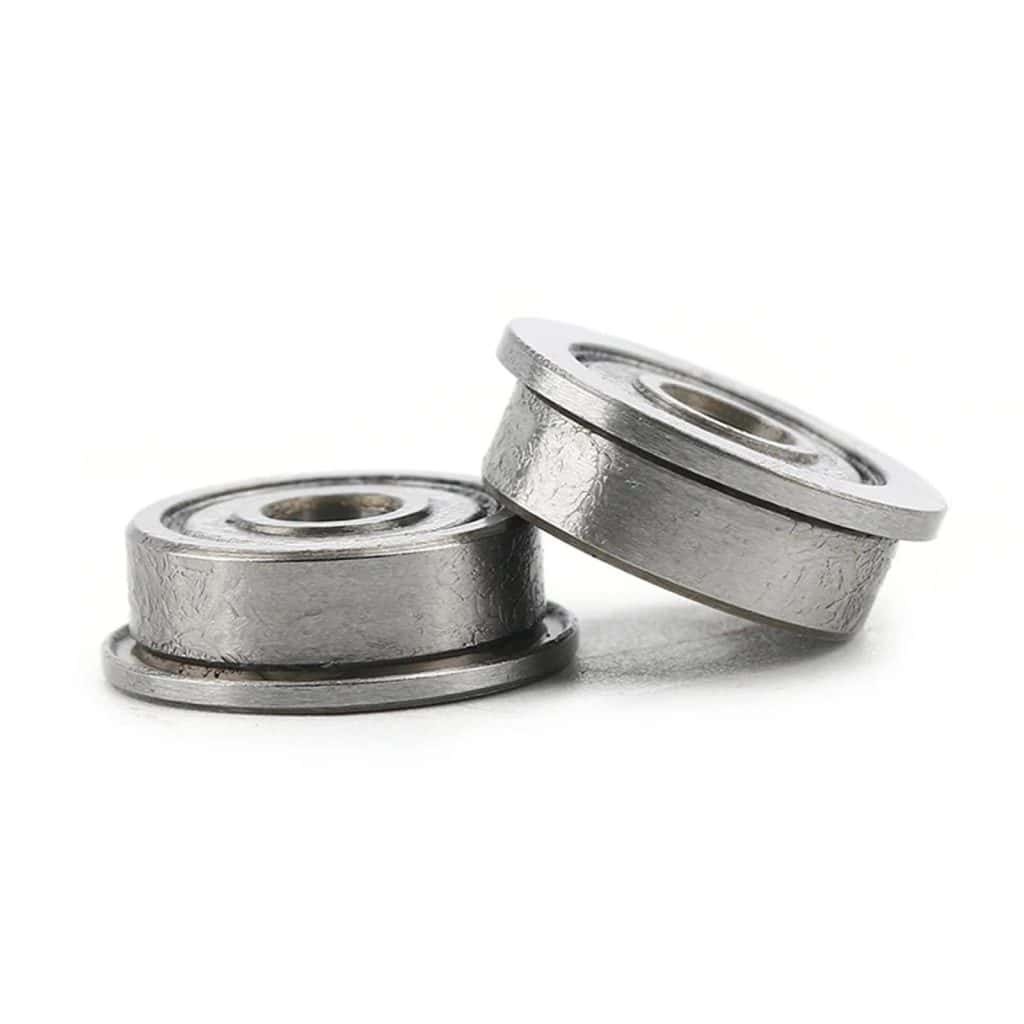

FR133ZZ Flange Mini Ball Bearing 3/32x3/16x1/16
Reference number: RIF-3332ZZ, 3332FCHH, FR133SS, ULKZ3006X, FR-133Z, FR133PP, LKZ3006X
ID: 3/32″
OD: 3/16″
Width: 1/16″
Weight: 0.13g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 80,000 RPM
FR144-ZZ Flanged Miniature Ball Bearing 1/8x1/4x7/64 Shielded RIF-418ZZ
Reference number: FR-144-ZZ, FR144Z, RIF-418ZZ, 418CFHH, FR144SS, ULKZ4008X, FR144PP, 77FR144, LK4008X
ID: 1/8″
OD: 1/4″
Width: 7/64″
Weight: 0.48g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 67,000 RPM

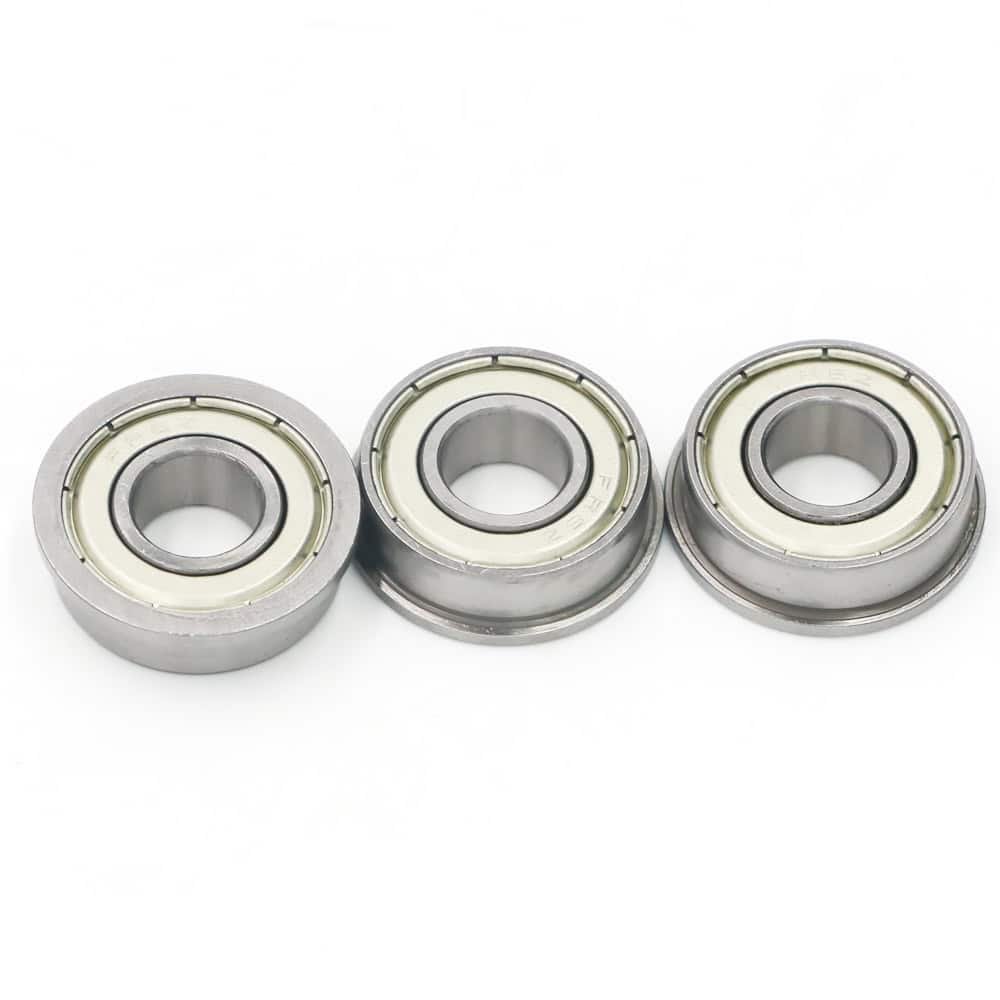

FR155-ZZ Flange Mini Ball Bearing 5/32x5/16x1/8 Shielded RIF-5532ZZ
Reference number: FR155Z, RIF-5532ZZ, 5532CFHH, FR155ZZ, ULK5010SS, FR-155ZZ
ID: 5/32″
OD: 5/16″
Width: 1/8″
Weight: 0.72g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 53,000 RPM

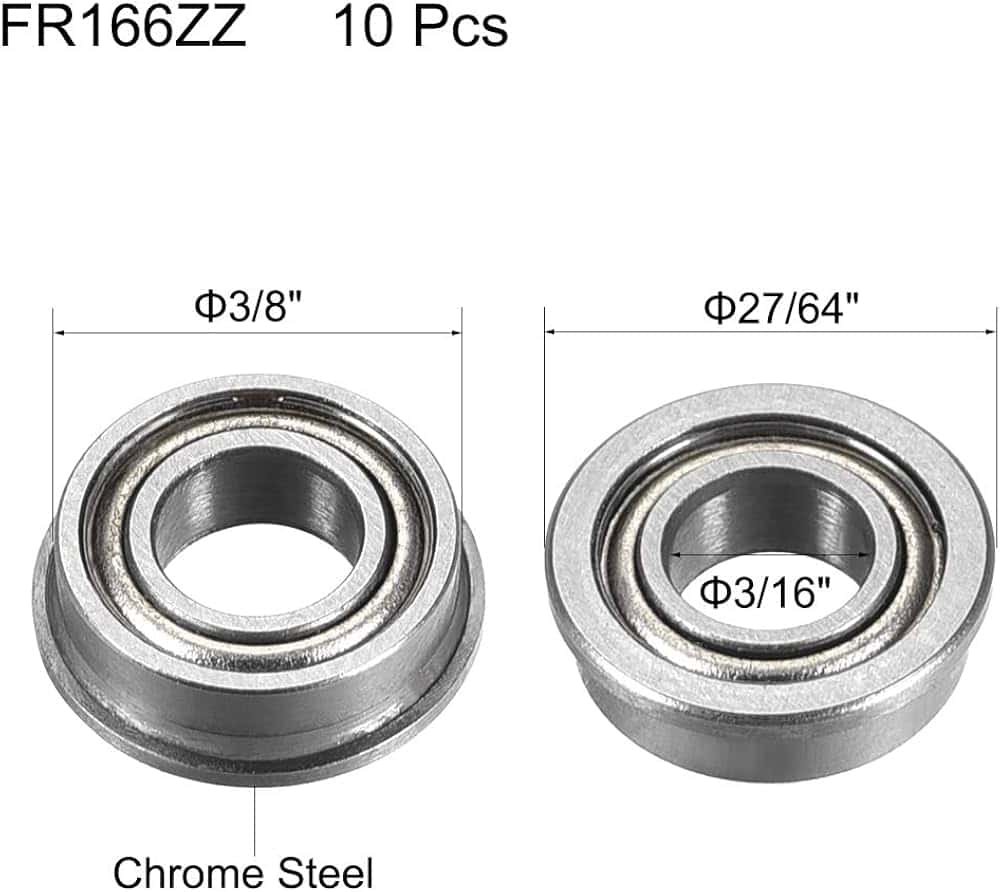

FR166-ZZ Flanged Miniature Ball Bearing 3/16x3/8x1/8 Shielded RIF6632ZZ
Reference number: RIF-6632ZZ, RF166ZZ, FR-166ZZ, S6316FCHH, FR166SS, ULKZ6012X, SFR166ZZ, SFR166DD
ID: 3/16″
OD: 3/8″
Width: 1/8″
Weight: 0.97g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 50,000 RPM
Mini Ball Bearing 604ZZ 4x12x4 Shielded
Reference number: MR604ZZ, L-1240ZZ, R1240-ZZ, 604Z
ID: 4mm
OD: 12mm
Width: 4mm
Weight: 2.60g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 48,000 RPM

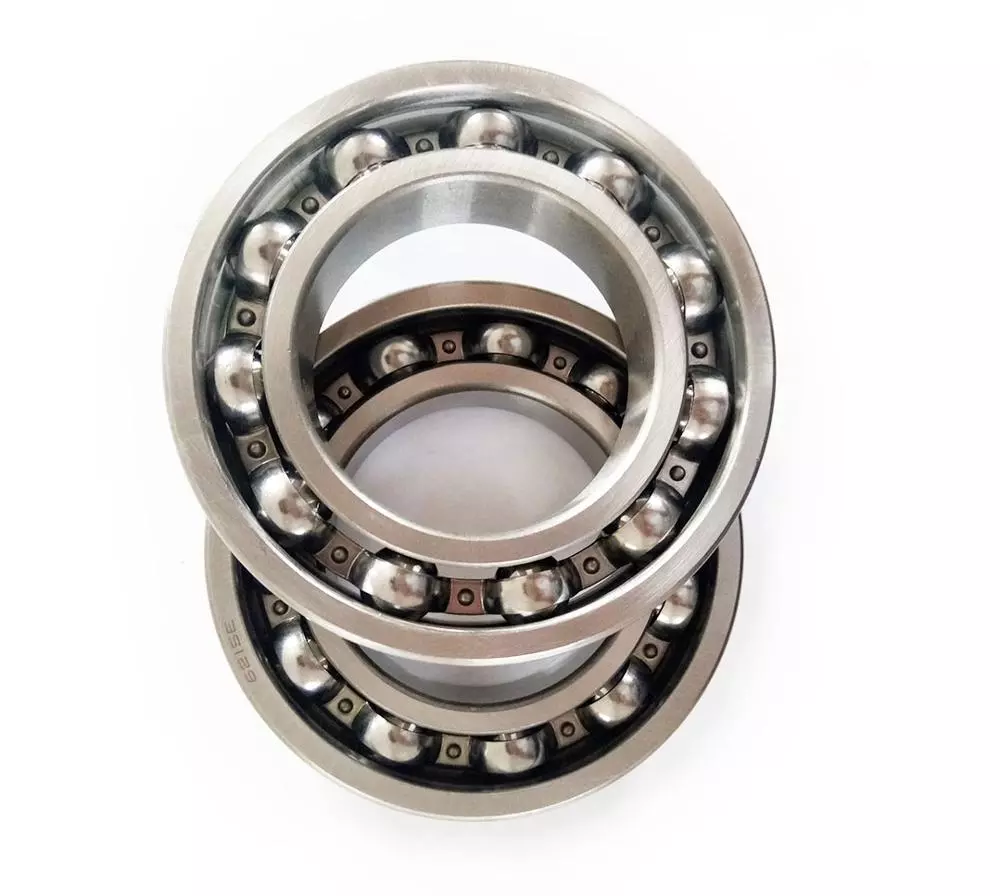

605 Miniature Ball Bearing 5x14x5mm Open MR605
Reference number: R1450-2RS,605RS, 605DU, 605VV, 605LU, 605LB, 605-2RSR, 605-2RS1, R1450PP
ID: 5mm
OD: 14mm
Width: 5mm
Weight: 4.50g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 43,000 RPM

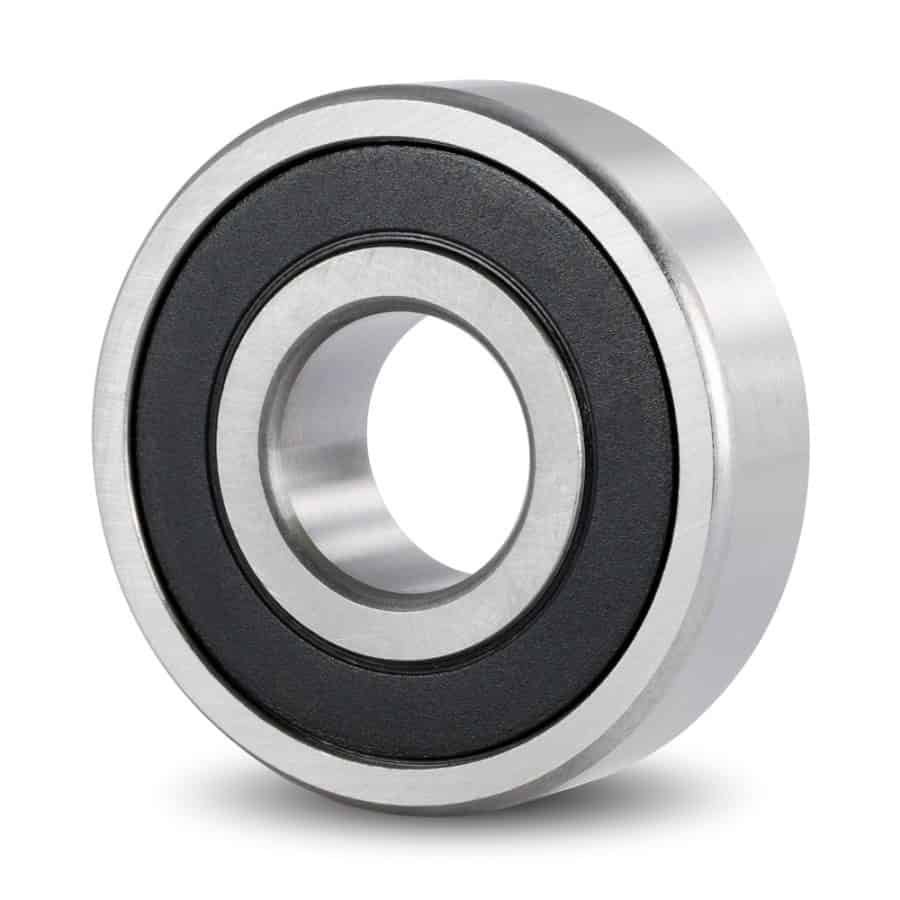

606-2RS Miniature Ball Bearing
Reference number: 606-ZZ, R-1760ZZ, MR606ZZ, 606.2ZJ1
ID: 6mm
OD: 17mm
Width: 6mm
Weight: 6g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 38,000 RPM

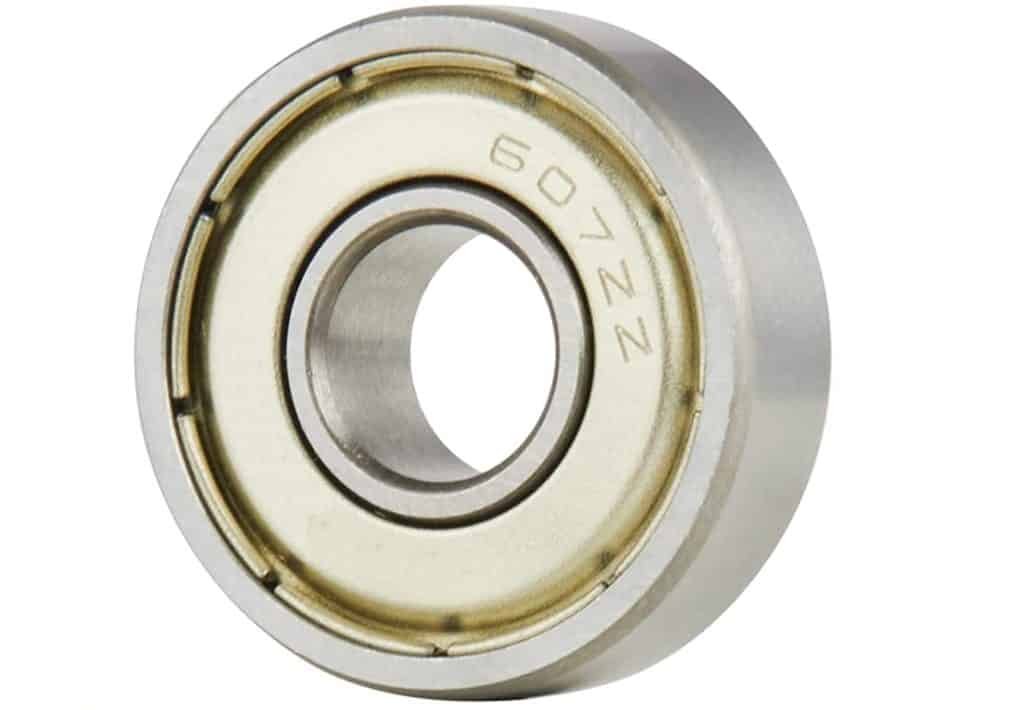

607-ZZ Mini Ball Bearing 7x19x6 Shielded
Reference number: MR607, MR607-ZZ, R1970ZZ, MP40WES, L-1970ZZ
ID: 7mm
OD: 19mm
Width: 6mm
Weight: 7g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Grease Lubrication: 36,000 RPM
Comprehensive Guide to Miniature Ball Bearings: Understanding Types, Manufacturing Process, and Maintenance
For more information about products, the company, or shipping, you can also check out our other FAQs!
Looking for the smallest ball bearing size for specific applications? We have got you covered!
BYWB Bearing offers a wide variety of bearings, including miniature ball bearings. We ensure you get the right kind of miniature bearings in high-quality material for your needs. Besides custom solutions, our bearings start at 3mm and go up to 12 mm. Choose from high-speed radial, radial retainer, thrust, angular contact, full ball complement, and pivot bearings.
Our ball bearings suit all commercial, industrial, and consumer requirements. You can select from various materials, including chrome steel, stainless steel, and ceramic ball bearings. The extensive variety of sizes, materials, and types allows you to choose the right ball bearing small size for the desired application. Our products are built to last and offer long-term usability without frequent replacements.

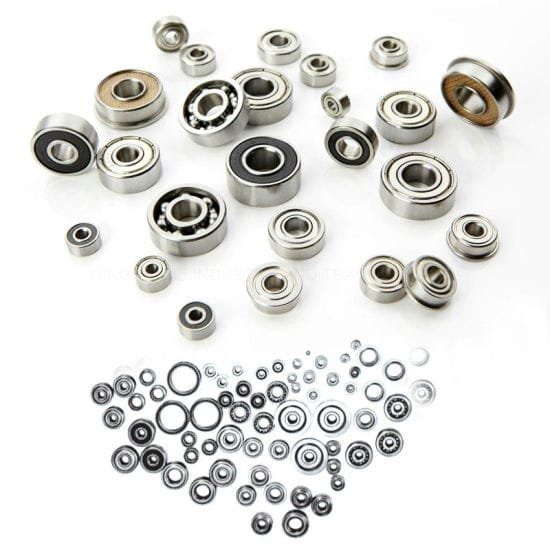

What is a Miniature Ball Bearing?
Miniature ball bearings are small bearings with balls. The bearings are called miniature because of their size. The outer diameter of these bearings is no more than 12.7 mm. The outside-to-inside diameter ratio is equal to or less than two. They are the smallest ball bearing type.
These bearings are also called micro bearings or instrument bearings. Some sizes may also range up to 20 mm and 1/8th of an inch in diameter. 0.0400 is the smallest ball bearing size required in unique applications because of its small size. However, you can find these bearings in various sizes within the range.
Where is the Miniature Ball Bearing?
Miniature ball bearings are typically used in tight spaces where you cannot use larger ball bearings. They perform the same function as standard-size ball bearings. These small bearings help reduce friction between parts that move independently without asking for a lot of space.
Utilization of small ball bearings generally includes smaller loads. However, they can take both radial and thrust loads. Miniature ball bearings are found in various pieces of equipment, including medical instruments and semiconductors. They are also used in robotic applications like human assist.
How Miniature Ball Bearing Works?
Small bearings help reduce the friction among freely moving parts in tight spaces. The bearing allows the machine to roll easily. As they reduce the friction, the parts move easily in a linear or rotational motion according to need. This eventually improves efficiency and speed.

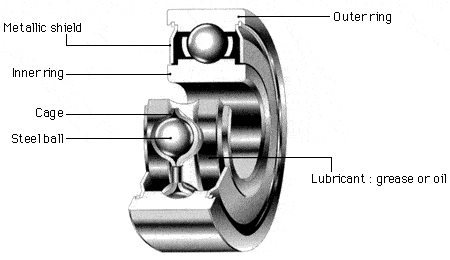

The four main components and their functions in a ball bearing are:
Outer ring: It provides a pathway to the balls for movement and plays a supporting role
Inner ring: The inner ring is the rotating element that rotates with the axis
Balls: The balls are present between the inner and the outer ring
Retainer: It separates balls and prevents them from falling out
Lubricant: It reduces friction, prevents rust, and facilitates longer life
All these parts work together to ensure the miniature ball bearing works fine to boost efficiency. One of the rings is usually immovable and moves as the other rotates. The lubricant increases the ball bearing’s durability and smooth functioning.
The balls carry the weight of the load that pushes the bearing to rotate. The load can be radial or axial, and the thrust load. Most ball bearing small size work on one load at a time, but some might carry both axial and thrust loads. Thrust loads are linear loads that do not involve rotation. Radial loads put weight on the bearings, causing them to rotate.
What is The Miniature Ball Bearing Price?
The price of miniature ball bearings may depend on the size, material, and type. You can find miniature ball bearings between $3.50 and $20. Moreover, you can get them for lower prices when buying in bulk. The price for 50 pieces may range from $10 to $20 or more for 50 pieces of small ball bearing sizes, depending on the quality and build.
Why BYWB Bearing Is the Best Choice for Miniature Bearing?
BYWB is a popular name in the bearing industry for our reliable and durable ball bearing solutions. We specialize in standard items as well as customized pieces to meet your needs. You can get miniature ball bearings in various materials and sizes to ensure that you get the best pick.
Here’s why selecting BYWB is the best choice:
- Wide variety of sizes and materials
- ISO standard construction
- 40% of the bearings range in stock
- Premium-quality raw materials
- Lower MOQs (as low as 100 pieces)
- Economical prices
- 2-year product warranty
- OEM/ ODM customization available
- Offering services in over 20 countries worldwide

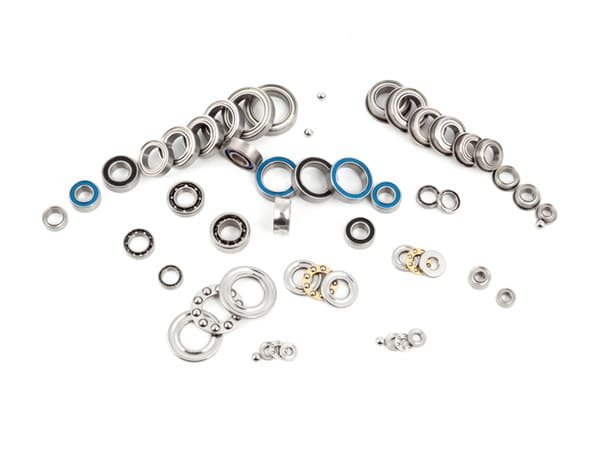

Types of Miniature Ball Bearings
Angular Contact Ball Bearings
The raceways of the inner and outer rings in angular contact ball bearings are displaced relative to each other in the direction of the bearing axis. So they can take radial and axial loads together. Angular contact ball bearings also act as retainers for lubricants. We have angular contact miniature ball bearings made from stainless steel, plastic, cadmium, or ceramic and plated with chrome, etc.
Thrust Ball Bearings
Thrust small bearings are specifically designed for axial loads and do not support radial loads. They are widely used in applications involving high speeds as they allow smooth operation. They can be single-directional or bi-directional.
High-Speed Radial Ball Bearings
High-speed radial ball bearings are a type of high-speed bearings that carry loads around their axis. The speed of these ball bearings must be equal to or more than 60 meters per second.
Full Ball Complement Bearings
These bearings have the outer and inner ring raceways filled to the maximum capacity with balls. It enables them to handle humongous radial and axial load but in one direction. The raceways have small cuts that allow the balls to be in a concentric position when aligned.
Pivot Ball Bearings
Pivot ball bearing small size comprises an outer ring and balls, and has a conical section, usually 60-degree on the rotating shaft, giving it the name. They have a smaller friction torque because of the ball’s smaller diameter and conical shape.
Miniature Ball Bearing Size Chart
| Bearing No. Open | Boundary dimensions | Basic load ratings | Limiting speeds | Mass | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KN | RPM | g | ||||||||||||
| d | D | B | B1 | D1 | D2 | C1 | C2 | rmin | dynamic Cr | static Cor | Grease | Oil | ||
| ZZ 2RS | open | |||||||||||||
| 618/2(682) | 2 | 5 | 1.5 | 2.3 | 6.1 | 6.1 | 0.5 | 0.6 | 0.1 | 0.13 | 0.05 | 38000 | 48000 | 0.15 |
| 628/2(MR52) | 2 | 5 | 2 | 2.5 | 6.2 | 6.2 | 0.6 | 0.6 | 0.1 | 0.15 | 0.05 | 38000 | 48000 | 0.22 |
| 619/2(692) | 2 | 6 | 2.3 | 3 | 7.5 | 7.5 | 0.6 | 0.8 | 0.1 | 0.25 | 0.08 | 38000 | 48000 | 0.3 |
| MR62 | 2 | 6 | 2.5 | - | 7.2 | - | 0.6 | - | 0.1 | 0.25 | 0.08 | 38000 | 48000 | 0.3 |
| 629/2 | 2 | 6 | 2.8 | 2.8 | - | - | - | - | 0.15 | 0.25 | 0.08 | 38000 | 48000 | 0.4 |
| 639/2 | 2 | 6 | 3 | 3 | - | - | - | - | 0.15 | 0.28 | 0.09 | 38000 | 48000 | 0.5 |
| 602 | 2 | 7 | 2.8 | 3.5 | 8.5 | 8.5 | 0.7 | 0.9 | 0.15 | 0.29 | 0.12 | 38000 | 48000 | 0.7 |
| MR72 | 2 | 7 | 2.5 | 3 | 8.2 | 8.2 | 0.6 | 0.6 | 0.15 | 0.29 | 0.12 | 38000 | 48000 | 0.7 |
| 618/2.5 | 2.5 | 6 | 1.8 | 2.6 | 7.1 | 7.1 | 0.5 | 0.8 | 0.15 | 0.15 | 0.06 | 38000 | 48000 | 0.25 |
| 628/2.5 | 2.5 | 6 | 2.5 | 2.5 | 7.2 | - | 0.7 | - | 0.15 | 0.15 | 0.06 | 38000 | 48000 | 0.3 |
| 619/2.5 | 2.5 | 7 | 2.5 | 3.5 | 8.5 | 8.5 | 0.7 | 0.9 | 0.15 | 0.29 | 0.12 | 38000 | 48000 | 0.6 |
| 639/2.5 | 2.5 | 7 | 3.5 | 3.5 | 8.5 | - | 0.7 | - | 0.15 | 0.29 | 0.12 | 38000 | 48000 | 0.65 |
| MR82/2.5 | 2.5 | 8 | 2.5 | - | 9.2 | - | 0.6 | - | 0.15 | 0.29 | 0.12 | 38000 | 48000 | 0.7 |
| 602/2.5 | 2.5 | 8 | 2.8 | 4 | 9.5 | 9.5 | 0.7 | 0.9 | 0.15 | 0.28 | 0.1 | 38000 | 48000 | 0.8 |
| 673(MR63) | 3 | 6 | 2 | 2.5 | 7.2 | 7.2 | 0.6 | 0.6 | 0.05 | 0.15 | 0.06 | 38000 | 48000 | 0.2 |
| 618/3(683) | 3 | 7 | 2 | 3 | 8.1 | 8.1 | 0.5 | 0.8 | 0.15 | 0.29 | 0.12 | 38000 | 48000 | 0.33 |
| 628/3 | 3 | 7 | 2.5 | 2.5 | 8.2 | - | 0.7 | - | 0.15 | 0.29 | 0.12 | 38000 | 48000 | 0.4 |
| MR83 | 3 | 8 | 2.5 | 3 | 9.2 | - | 0.6 | - | 0.15 | 0.29 | 0.12 | 38000 | 48000 | 0.52 |
| 619/3(693) | 3 | 8 | 3 | 4 | 9.5 | 9.5 | 0.7 | 0.9 | 0.15 | 0.44 | 0.15 | 38000 | 48000 | 0.8 |
| 639/3 | 3 | 8 | 4 | 4 | - | - | - | - | 0.15 | 0.44 | 0.15 | 38000 | 48000 | 0.9 |
| MR93 | 3 | 9 | 2.5 | 4 | 10.2 | 10.6 | 0.6 | 0.8 | 0.15 | 0.44 | 0.15 | 38000 | 48000 | 0.71 |
| 603 | 3 | 9 | 3 | 5 | 10.5 | 10.5 | 0.7 | 1 | 0.15 | 0.65 | 0.22 | 38000 | 48000 | 1.5 |
| 623 | 3 | 10 | 4 | 4 | 11.5 | 11.5 | 1 | 1 | 0.15 | 0.65 | 0.22 | 38000 | 48000 | 2 |
| 633 | 3 | 13 | 5 | 5 | 15 | - | 1 | - | 0.15 | 0.85 | 0.4 | 38000 | 48000 | 3 |
| MR74(674) | 4 | 7 | 2 | 2.5 | 8.2 | 8.2 | 0.6 | 0.6 | 0.1 | 0.25 | 0.1 | 38000 | 48000 | 0.28 |
| MR84 | 4 | 8 | 2 | 3 | 9.2 | 9.2 | 0.6 | 0.6 | 0.1 | 0.28 | 0.1 | 38000 | 48000 | 0.38 |
| 618/4(684) | 4 | 9 | 2.5 | 4 | 10.3 | 10.3 | 0.6 | 1 | 0.15 | 0.65 | 0.22 | 38000 | 48000 | 0.65 |
| 628/4 | 4 | 9 | 3.5 | 3.5 | 10.5 | - | 0.8 | - | 0.15 | 0.55 | 0.18 | 38000 | 48000 | 0.8 |
| MR104 | 4 | 10 | 3 | 4 | 11.2 | 11.6 | 0.6 | 0.8 | 0.15 | 0.65 | 0.22 | 38000 | 48000 | 1 |
| 619/4(694) | 4 | 11 | 4 | 4 | 12.5 | 12.5 | 1 | 1 | 0.15 | 0.95 | 0.35 | 36000 | 48000 | 2 |
| 639/4 | 4 | 11 | 5 | 5 | - | - | - | - | 0.15 | 0.95 | 0.35 | 38000 | 48000 | 2.3 |
| 604 | 4 | 12 | 4 | 4 | 13.5 | 13.5 | 1 | 1 | 0.2 | 0.95 | 0.35 | 38000 | 48000 | 2.6 |
| 624 | 4 | 13 | 5 | 5 | 15 | 15 | 1 | 1 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 3 |
| 634 | 4 | 16 | 5 | 5 | 18 | 18 | 1 | 1 | 0.3 | 1.88 | 0.68 | 32000 | 40000 | 5 |
| MR85(675) | 5 | 8 | 2 | 2.5 | 9.2 | 9.2 | 0.6 | 0.6 | 0.08 | 0.27 | 0.13 | 38000 | 48000 | 0.32 |
| MR95 | 5 | 9 | 2.5 | 3 | 10.2 | 10.2 | 0.6 | 0.6 | 0.1 | 0.49 | 0.2 | 38000 | 48000 | 0.55 |
| MR105 | 5 | 10 | 3 | 4 | 11.2 | 11.6 | 0.6 | 0.8 | 0.1 | 0.51 | 0.24 | 38000 | 48000 | 0.88 |
| 618/5(685) | 5 | 11 | 3 | 5 | 12.5 | 12.5 | 0.8 | 1 | 0.2 | 0.54 | 0.25 | 36000 | 45000 | 1.2 |
| 628/5 | 5 | 11 | 4 | 4 | 12.5 | - | 1 | - | 0.15 | 0.54 | 0.25 | 36000 | 45000 | 1.3 |
| 619/5(695) | 5 | 13 | 4 | 4 | 15 | 15 | 1 | 1 | 0.2 | 1.08 | 0.42 | 34000 | 43000 | 2.5 |
| 639/5 | 5 | 13 | 6 | 6 | - | - | - | - | 0.2 | 1.15 | 0.45 | 34000 | 43000 | 3 |
| 605 | 5 | 14 | 5 | 5 | 16 | 16 | 1 | 1 | 0.2 | 1.05 | 0.5 | 30000 | 38000 | 4.5 |
| 625 | 5 | 16 | 5 | 5 | 18 | 18 | 1 | 1 | 0.3 | 1.88 | 0.68 | 32000 | 40000 | 4 |
| 635 | 5 | 19 | 6 | 6 | 22 | 22 | 1.5 | 1.5 | 0.3 | 2.8 | 1.02 | 28000 | 36000 | 8 |
| MR106(676) | 6 | 10 | 2.5 | 3 | 11.2 | 11.2 | 0.6 | 0.6 | 0.1 | 0.54 | 0.25 | 34000 | 43000 | 0.65 |
| MR126 | 6 | 12 | 3 | 4 | 13.2 | 13.6 | 0.6 | 0.8 | 0.15 | 0.83 | 0.36 | 34000 | 43000 | 1.3 |
| 618/6(686) | 6 | 13 | 3.5 | 5 | 15 | 15 | 1 | 1.1 | 0.2 | 0.83 | 0.38 | 34000 | 43000 | 1.6 |
| 628/6 | 6 | 13 | 5 | 5 | - | - | - | - | 0.15 | 1.08 | 0.42 | 34000 | 43000 | 2.1 |
| 619/6(696) | 6 | 15 | 5 | 5 | 17 | 17 | 1.2 | 1.2 | 0.2 | 1.48 | 0.6 | 32000 | 40000 | 4.5 |
| 639/6 | 6 | 15 | 7 | 7 | - | - | - | - | 0.2 | 1.6 | 0.65 | 32000 | 40000 | 6.5 |
| 606 | 6 | 17 | 6 | 6 | 19 | 19 | 1.2 | 1.2 | 0.3 | 1.95 | 0.72 | 30000 | 38000 | 6 |
| 626 | 6 | 19 | 6 | 6 | 22 | 22 | 1.5 | 1.5 | 0.3 | 2.8 | 1.05 | 28000 | 36000 | 8 |
| 636 | 6 | 22 | 7 | 7 | - | - | - | - | 0.3 | 3.3 | 1.3 | 25000 | 33000 | 10 |
| MR117(677) | 7 | 11 | 2.5 | 3 | 12.2 | 12.2 | 0.6 | 0.6 | 0.1 | 0.45 | 0.2 | 32000 | 40000 | 0.67 |
| MR137 | 7 | 13 | 3 | 4 | 14.2 | 14.6 | 0.6 | 0.8 | 0.15 | 0.88 | 0.39 | 32000 | 40000 | 1.4 |
| 618/7(687) | 7 | 14 | 3.5 | 5 | 16 | 16 | 1 | 1.1 | 0.15 | 0.9 | 0.45 | 32000 | 40000 | 2.1 |
| 628/7 | 7 | 14 | 5 | 5 | 11 | - | 1 | - | 0.15 | 1.18 | 0.5 | 32000 | 40000 | 2.4 |
| 619/7(697) | 7 | 17 | 5 | 5 | 19 | 19 | 1.2 | 1.2 | 0.3 | 2.02 | 0.8 | 30000 | 38000 | 5.7 |
| 629/7 | 7 | 17 | 6 | 6 | - | - | - | - | 0.3 | 1.74 | 0.79 | 30000 | 38000 | 7.2 |
| 607 | 7 | 19 | 6 | 6 | 22 | 22 | 1.5 | 1.5 | 0.3 | 2.88 | 1.08 | 28000 | 36000 | 7 |
| 627 | 7 | 22 | 7 | 7 | 25 | 25 | 1.5 | 1.5 | 0.3 | 3.28 | 1.35 | 26000 | 34000 | 1.4 |
| 637 | 7 | 26 | 9 | 9 | 29 | - | 2 | - | 0.3 | 3.6 | 1.5 | 26000 | 34000 | 3.4 |
| MR128(678) | 8 | 12 | 2.5 | 3.5 | 13.2 | 13.6 | 0.6 | 0.8 | 0.1 | 0.5 | 0.25 | 28000 | 36000 | 0.75 |
| MR148 | 8 | 14 | 3.5 | 4 | 15.6 | 15.6 | 0.8 | 0.8 | 0.15 | 0.88 | 0.39 | 28000 | 36000 | 1.8 |
| 618/8(688) | 8 | 16 | 4 | 5 | 18 | 18 | 1 | 1.1 | 0.3 | 1.37 | 0.7 | 30000 | 38000 | 3.1 |
| 628/8 | 8 | 16 | 5 | 5 | - | - | - | - | 0.2 | 1.32 | 0.65 | 30000 | 38000 | 4 |
| 619/8(698) | 8 | 19 | 6 | 6 | 22 | 22 | 1.5 | 1.5 | 0.3 | 2.25 | 0.92 | 28000 | 36000 | 8.5 |
| 629/8 | 8 | 19 | 7 | 7 | - | - | - | - | 0.3 | 2.35 | 0.92 | 28000 | 36000 | 10 |
| 608 | 8 | 22 | 7 | 7 | 25 | 25 | 1.5 | 1.5 | 0.3 | 3.32 | 1.38 | 26000 | 34000 | 15 |
| 628 | 8 | 24 | 8 | 8 | - | - | - | - | 0.3 | 3.35 | 1.4 | 24000 | 32000 | 16 |
| 638 | 8 | 28 | 9 | 9 | 30.25 | - | 2.25 | - | 0.3 | 3.95 | 1.6 | 24000 | 30000 | 30 |
| 679 | 9 | 14 | 3 | 4.5 | - | - | - | - | 0.1 | 0.92 | 0.47 | 36000 | 42000 | 0.98 |
| 618/9(689) | 9 | 17 | 4 | 5 | 19 | 19 | 1 | 1.1 | 0.2 | 1.37 | 0.72 | 28000 | 36000 | 3.3 |
| 628/9 | 9 | 17 | 5 | 5 | - | - | - | - | 0.2 | 1.6 | 0.72 | 28000 | 36000 | 4.2 |
| 619/9(699) | 9 | 20 | 6 | 6 | 23 | 23 | 1.5 | 1.5 | 0.3 | 2.48 | 1.08 | 27000 | 34000 | 9.2 |
| 629/9 | 9 | 20 | 7 | 7 | - | - | - | - | 0.3 | 2.5 | 1.08 | 27000 | 34000 | 10 |
| 609 | 9 | 24 | 7 | 7 | - | - | - | - | 0.3 | 3.35 | 1.4 | 22000 | 30000 | 16 |
| 629 | 9 | 26 | 8 | 8 | - | - | - | - | 0.3 | 4.45 | 1.95 | 22000 | 30000 | 19 |
| 639 | 9 | 30 | 10 | 10 | - | - | - | - | 0.3 | 4.95 | 2.3 | 22000 | 30000 | 35 |
| aaa | 9 | 30 | 10 | 10 | - | - | - | - | 0.3 | 4.95 | 2.3 | 22000 | 30000 | 35 |
| 639 | 9 | 30 | 10 | 10 | - | - | - | - | 0.3 | 4.95 | 2.3 | 22000 | 30000 | 35 |
Conclusion
Miniature ball bearings are the smallest ball bearings used in semiconductor instruments and medical equipment. They are suitable for applications with less space for ball bearings. These are immensely small in size, as small as 3mm to as much as 20mm. Their diameter is typically 1/8th of an inch. However, besides being incredibly handy, these small ball bearing sizes offer vast utilization. You can choose miniature ball bearings in different materials and types, like angular contact, pivot, full ball complement, high-speed radial ball bearings, etc. Ball bearings are reasonable, and you can find them for $3.50 on average.
Apart from the standard miniature ball bearing sizes and built, we also offer OEM/ODM services. You can get bearings according to your preferences and requirements.
FAQ
What is The Application of Miniature Ball Bearings?
Miniature ball bearings are used in a variety of applications due to their small size and high precision. Here are some common applications:
Small Electric Motors: They are used a lot in small electric motors found in household appliances, power tools, and other devices where you need a really small bearing to fit in a tight spot and you need it to run smoothly.
Computer Peripherals: They are critical for the smooth and precise operation of computer peripherals such as disk drives, printers, and scanners.
Medical Equipment: They are used in all sorts of medical devices including dental tools, surgical instruments, and diagnostic equipment where you need high precision and reliability.
Automotive Components: They are used in various automotive applications including actuators, sensors, and small motors that control mirrors, seats, and windows.
Aerospace: They are used in aerospace applications for instruments and control mechanisms where low weight and reliability are critical.
Robotics: They are used a lot in robotics for joint and actuator mechanisms because they can handle both radial and axial loads efficiently while maintaining precision.
Toys and Hobbies: They are used in model trains, remote-controlled cars, drones, and other hobby equipment to make them perform better and last longer.
These bearings are used when you don’t have a lot of space but you can’t compromise on performance. They can handle both radial and axial loads and run at high speeds, making them perfect for many applications.
© COPYRIGHT NOTICE
Copyright of the pictures belong to the owner, not allow to copy or use without permission, the owner have the rights to pursue legal action, if you find infringement, please email us we will handle or remove immediately.
