Top Spherical Roller Bearing Reviews
Let us review some of the top spherical roller bearings that we provide to our customers.

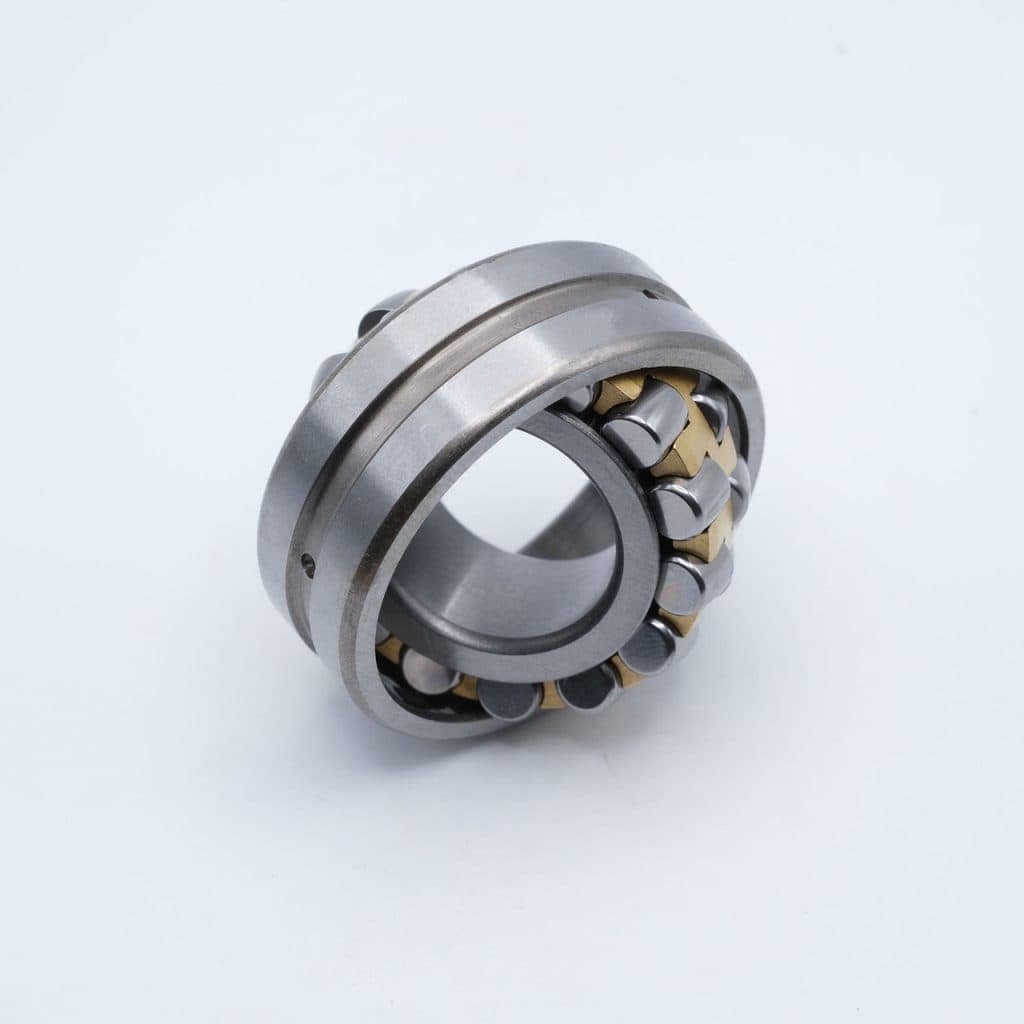

22205CA/C3W33 Spherical Roller Bearing
Reference number: 22205CAME4C3, 22205YMC3W33, 22205.MB.C3.S, 22205RRC3W33, 22205RC3W33
ID: 25mm
OD: 52mm
Width: 18mm
Weight: 190g
Limiting Speed: Sealed Grease/8,500 RPM, Open oil /11,000RPM

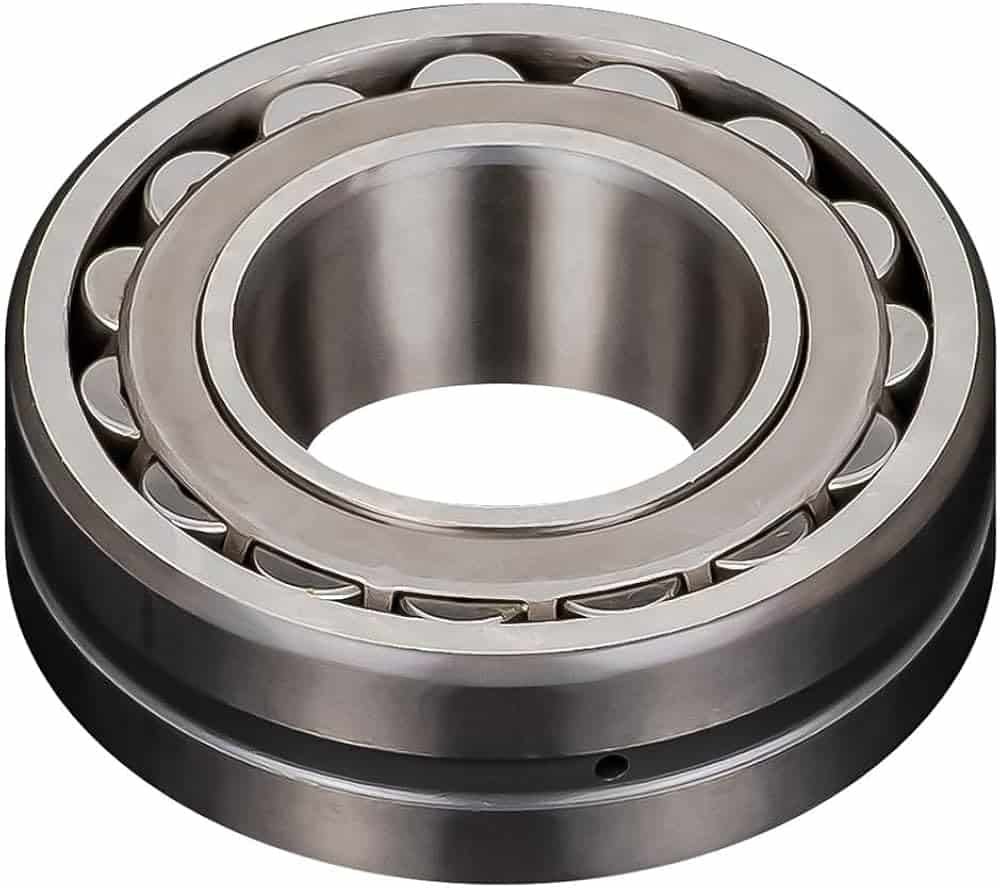

22206CA/W33 Spherical Roller Bearing
Reference number: 22206MW33, 22206-EA1-M, 22206CAME4, 22206CA/W33, 22206MBW33, 22206RRW33, 22206YMW33, 22206MB.S
ID: 30mm
OD: 62mm
Width: 20mm
Weight: 500g
Limiting Speed: Sealed Grease/5,300 RPM, Open oil /6,700RPM
22207CAW33 Spherical Roller Bearing Brass Cage 35x72x23
Reference number: 22207MB/W33, 22207ECAW33, 22207EJW33, 22207EXW33, 22207EM/W33, 22207RHRW33, 22207YMW33, 22207AME4, 22207.MB.W33
ID: 35mm
OD: 72mm
Width: 23mm
Weight: 450g
Limiting Speed: Sealed Grease/5,500 RPM, Open oil /6,500RPM
22208CAC3W33 Spherical Roller Bearing Brass Cage
Reference number: 22208CAC3ME4, 22208YMC3W33, 22208.MB.C3.S, 22208RRC3W33, 22208RC3W33, 22208-EA1-MC3, 22208RHRC3W33, 22208MBC3S
ID: 40mm
OD: 80mm
Width: 23mm
Weight: 550g
Limiting Speed: Sealed Grease/4,500 RPM, Open oil /5,600RPM

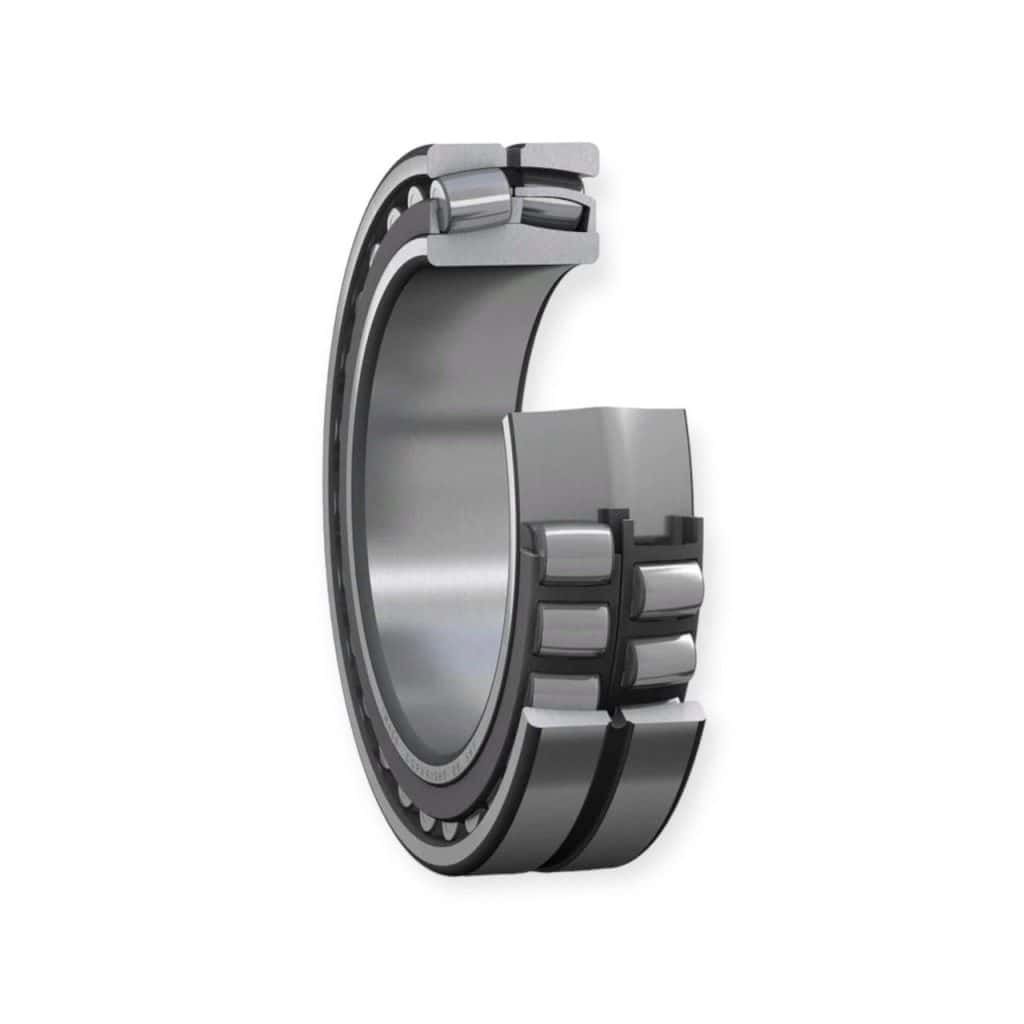

22308CCW33 Spherical Roller Bearing Steel Cage 40x90x33mm
Reference number: 22308, 22308ESTVPB, 22308R, SB22308, 22308E, 22308HL, 22308EB33, 22308VCF
ID: 40mm
OD: 90mm
Width: 33mm
Weight: 1030g
Limiting Speed: Sealed Grease/4,000 RPM, Open oil /5,000RPM
22209CAKW33 Spherical Roller Tapered Bore 45x85x23
Reference number: 22209MBK/W33, 22209ECAC3, 22209EJKW33, 22209EXKW33, 22209EMK/W33, 22209CAMKE4, 22209YMKW33, 22209MBKS
ID: 45mm
OD: 85mm
Width: 23mm
Weight: 590g
Limiting Speed: Sealed Grease/4,000 RPM, Open oil /5,000RPM

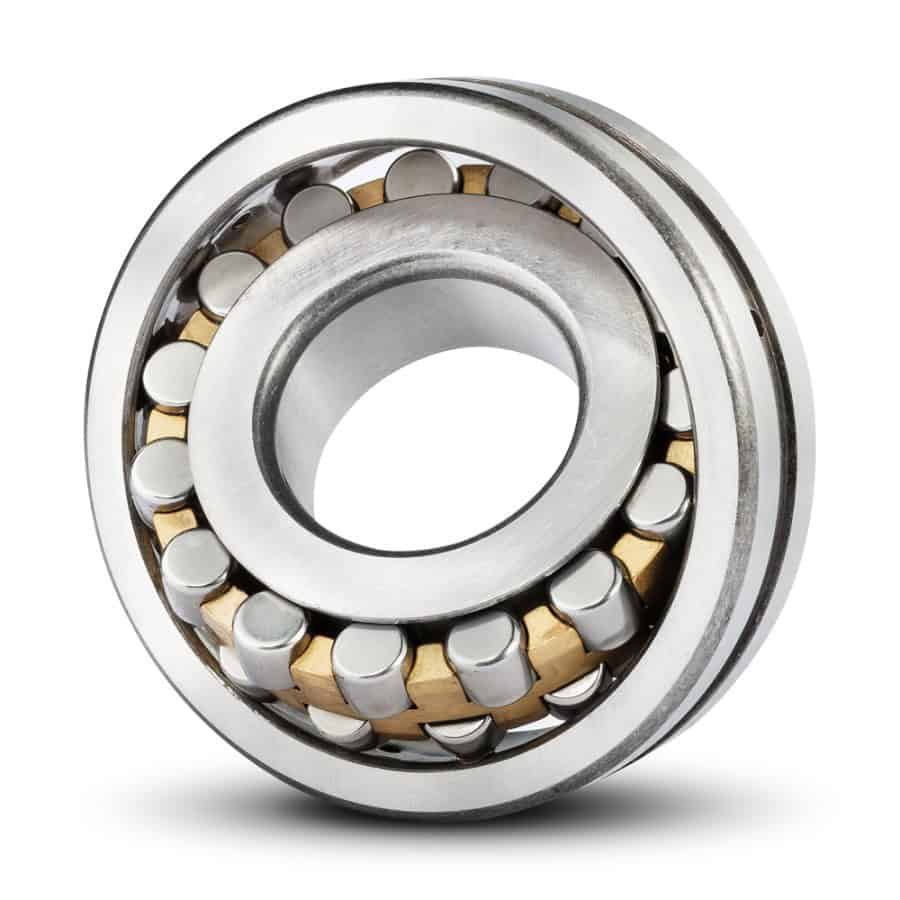

21309RHW33C3 Spherical Roller Bearing Steel Cage 45x100x25mm
Reference number: 21309RHW33C3, 21309RHC3W33, 21309RZW33C3
ID: 45mm
OD: 100mm
Width: 25mm
Weight: 1020g
Limiting Speed: Sealed Grease/4,000 RPM, Open oil /5,000RPM
22210CAC3W33 Spherical Roller Bearing
Reference number: 22210MBC3/W33, 22209ECAC3, 22209EJC3W33, 22209EXC3W33, 22209EMC3/W33, 22209CAMC3E4, 22209YMC3W33, 22209MBC3S
ID: 50mm
OD: 90mm
Width: 23mm
Weight: 870g
Limiting Speed: Sealed Grease/3,800 RPM, Open oil /4,800RPM
22310MBW33C3 Spherical Roller Bearing Double Brass Cage
Reference number: 22310, 22310ESTVPB, 22310R, SB22310, 22310E, 22310HL, 22310EB33, 22310VCF
ID: 50mm
OD: 110mm
Width: 40mm
Weight: 1085g
Limiting Speed: Sealed Grease/3,400 RPM, Open oil /4,300RPM

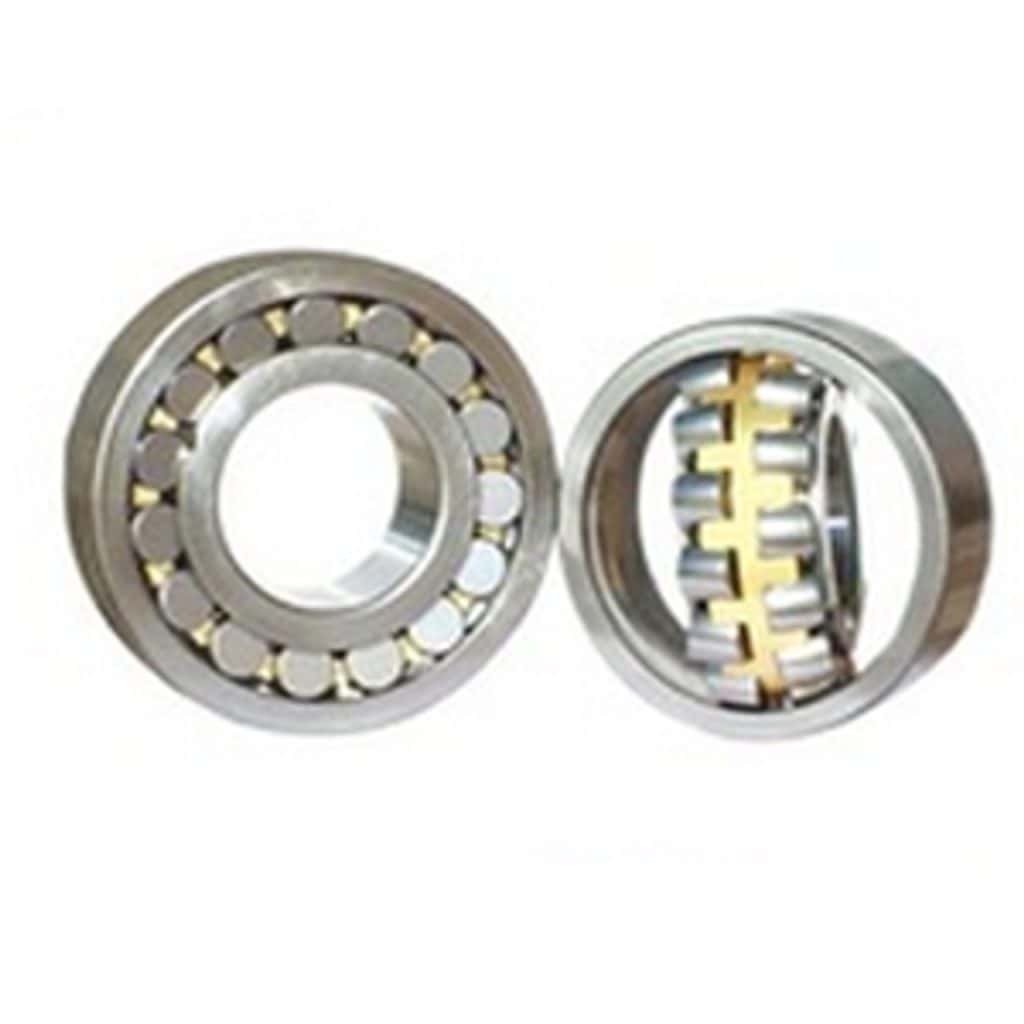

22211CAKC3W33 Spherical Roller Bearing Tapered Bore Brass Cage 55x100x25mm
Reference number: 22211,22211ESTVPB,22211R,SB22211,22211E,22211HL,22211EB33,22211VCF
ID: 55mm
OD: 110mm
Width: 25mm
Weight: 860g
Limiting Speed: Sealed Grease/3,400 RPM, Open oil /4,300RPM

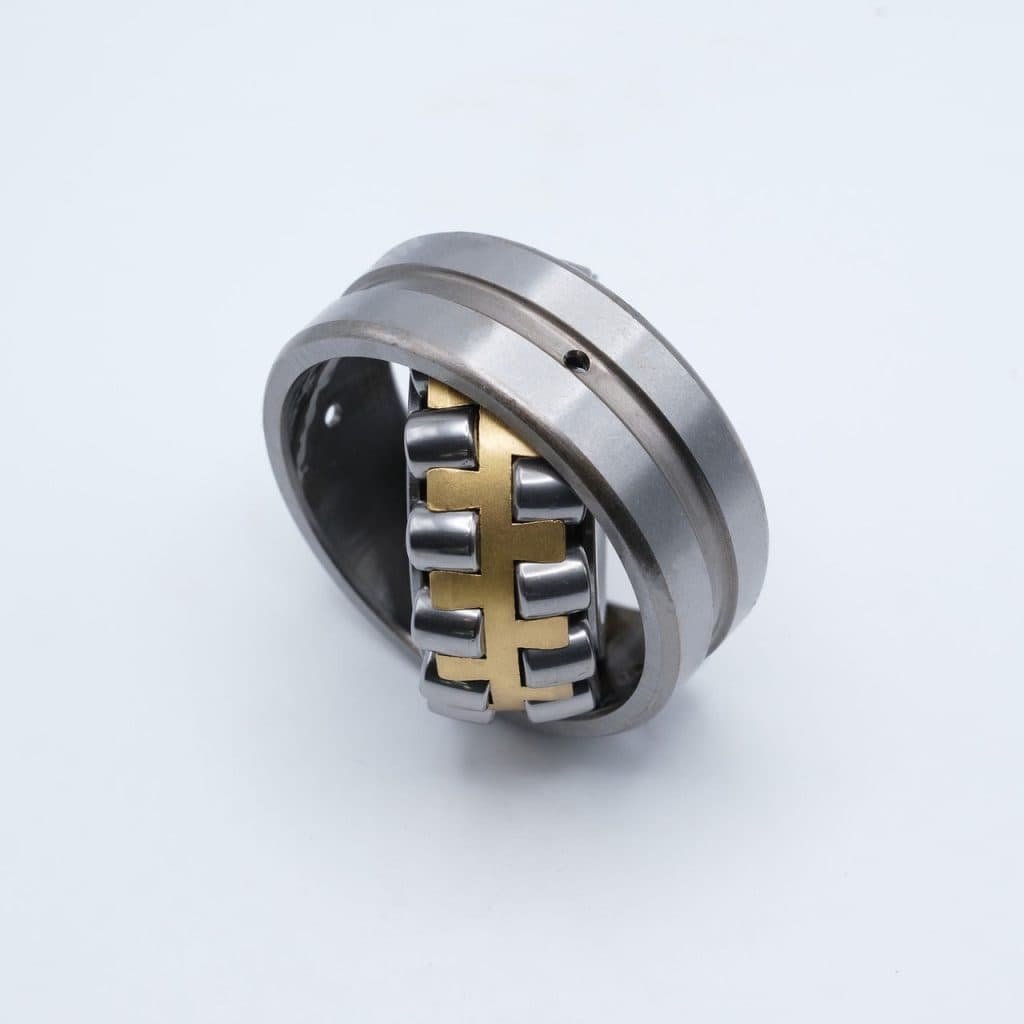

22311MBW33 Spherical Roller Bearing Brass Cage 55x120x43
Reference number: 22311, 22311ESTVPB, 22311R,SB22311, 22311E, 22311HL, 22311EB33, 22311VCF
ID: 55mm
OD: 120mm
Width: 43mm
Weight: 1650g
Limiting Speed: Sealed Grease/2,600 RPM, Open oil /3,400RPM
22312CA/C3W33 Spherical Roller Bearing
Reference number: 22311, 22311ESTVPB, 22311R,SB22311, 22311E, 22311HL, 22311EB33, 22311VCF
ID: 60mm
OD: 130mm
Width: 31mm
Weight: 2080g
Limiting Speed: Sealed Grease/2,400 RPM, Open oil /3,200RPM

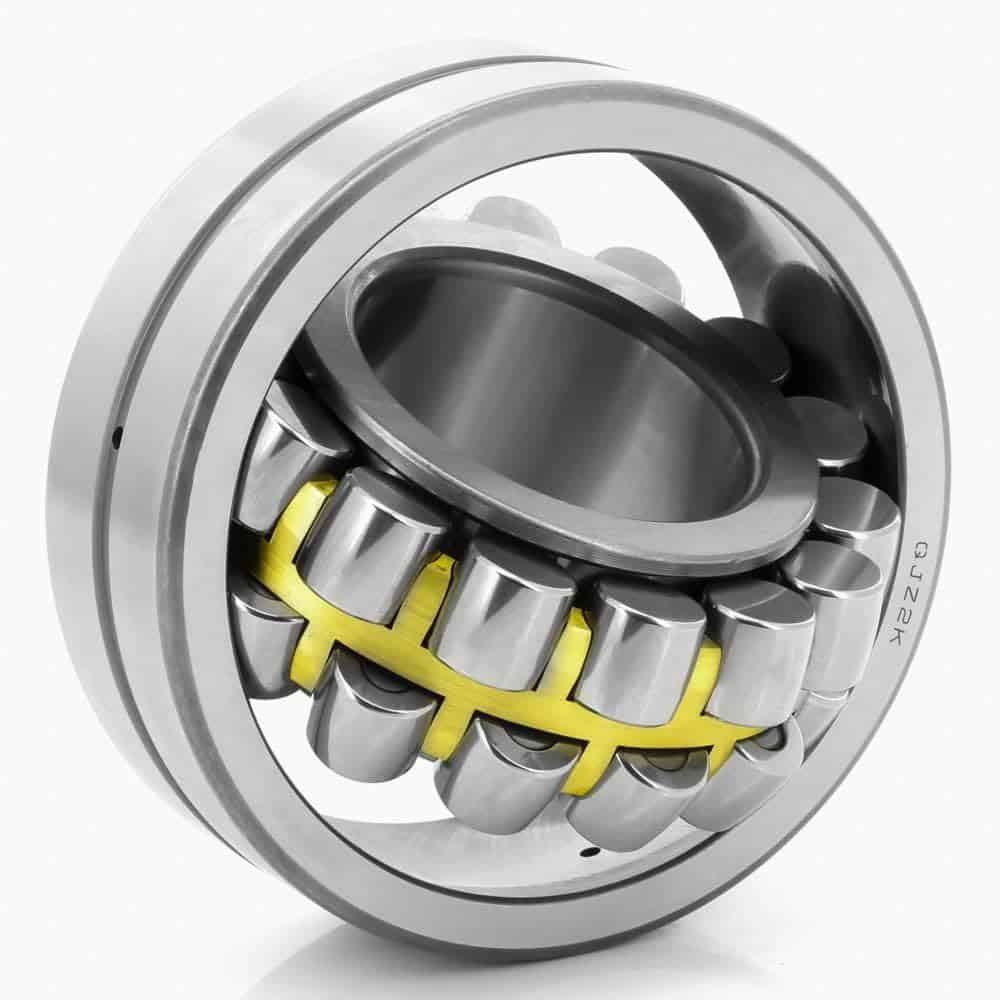

22211CAC3W33 Spherical Roller Bearing
Reference number: 22211MBC3/W33, 22211ECAC3, 22211EJC3W33, 22211MBC3S
ID: 55mm
OD: 100mm
Width: 25mm
Weight: 860g
Limiting Speed: Sealed Grease/3,400 RPM, Open oil /4,300RPM
22212-E1-XL Spherical Roller Bearing
Reference number: 22212E, 22212EAW33 , 22212CW33
ID: 60mm
OD: 110mm
Width: 28mm
Weight: 1020g
Limiting Speed: Sealed Grease/3,600 RPM, Open oil /4,500RPM

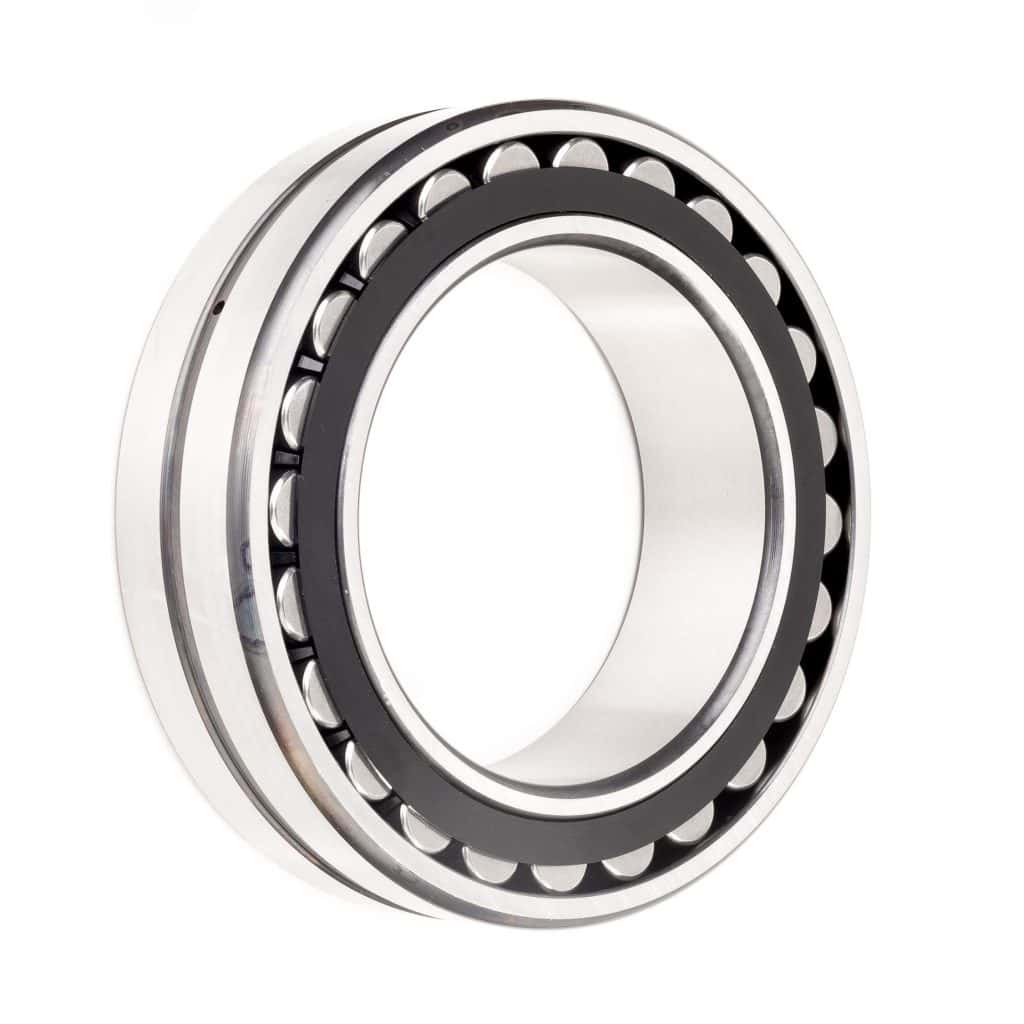

22312-E1-XL-K Spherical Roller Bearing
Reference number: 22312EK, 22312EAK D1 , 22312CK W33
ID: 60mm
OD: 130mm
Width: 46mm
Weight: 3000g
Limiting Speed: Sealed Grease/2,600 RPM, Open oil /3,000RPM
22213CAC3W33 Spherical Roller Bearing Brass Cage
Reference number: 22213,22213ESTVPB,22213R,SB22213,22213E,22213HL,22213EB33,22213VCF
ID: 65mm
OD: 120mm
Width: 31mm
Weight: 1520g
Limiting Speed: Sealed Grease/2,800 RPM, Open oil /3,600RPM
22313CAC3W33 Spherical Roller Bearing Brass Cage 65x140x48mm
Reference number: 22313, 22313ESTVPB, 22313R, SB22313, 22313E, 22313HL, 22313EB33, 22313VCF
ID: 65mm
OD: 140mm
Width: 48mm
Weight: 3060g
Limiting Speed: Sealed Grease/2,400 RPM, Open oil /3,200RPM
22214CCW33 Spherical Roller Bearing Steel Cage 70x125x31mm
Reference number: 22214,22214ESTVPB,22214R,SB22214,22214E,22214HL,22214EB33,22214VCF
ID: 70mm
OD: 125mm
Width: 31mm
Weight: 1660g
Limiting Speed: Sealed Grease/2,600 RPM, Open oil /3,400RPM

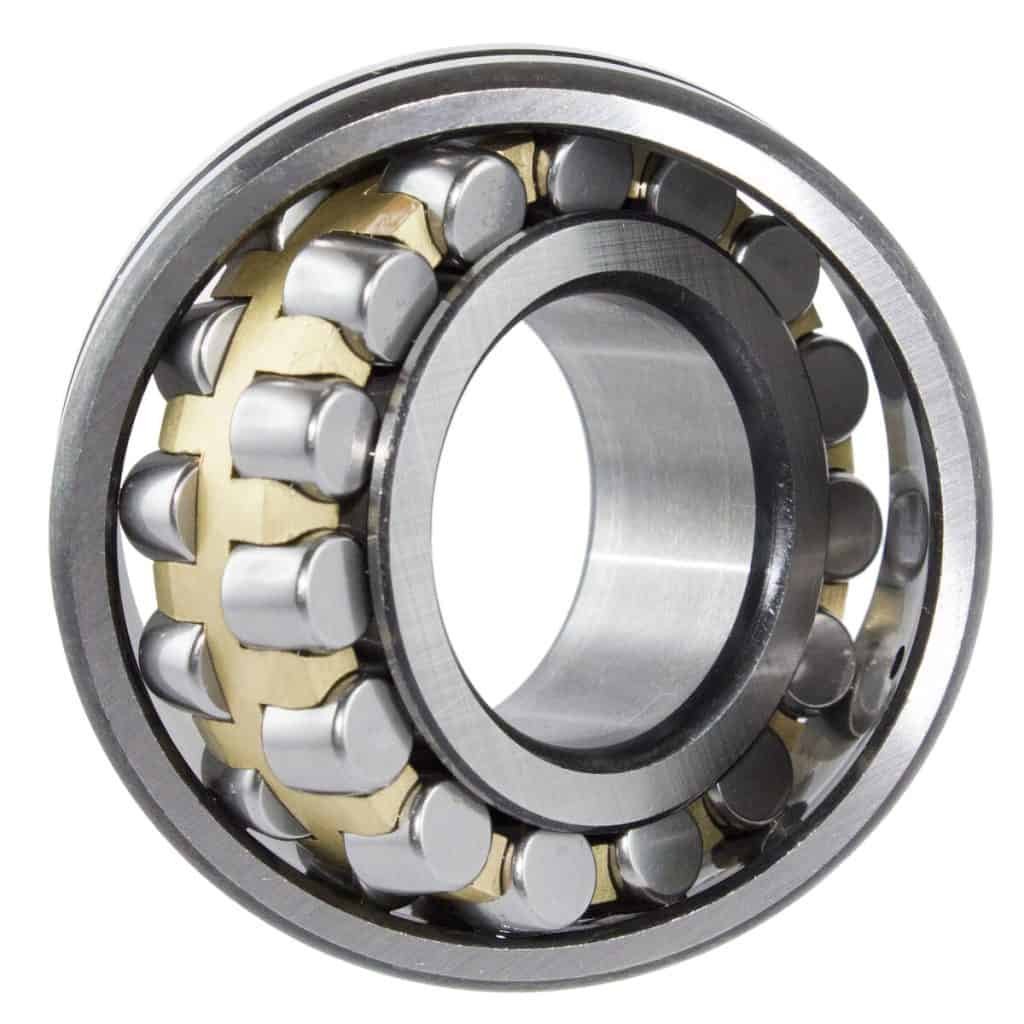

22314CAC3W33 Spherical Roller Bearing Brass Cage 70x150x51mm
Reference number: 22314, 22314ESTVPB, 22314R, SB22314, 22314E, 22314HL, 22314EB33, 22314VCF
ID: 70mm
OD: 150mm
Width: 51mm
Weight: 4200g
Limiting Speed: Sealed Grease/2,200 RPM, Open oil /3,000RPM
22215CAKC3W33 Spherical Roller Bearing Tapered Bore Brass Cage 75x130x31mm
Reference number: 22314, 22314ESTVPB, 22314R, SB22314, 22314E, 22314HL, 22314EB33, 22314VCF
ID: 75mm
OD: 130mm
Width: 31mm
Weight: 1730g
Limiting Speed: Sealed Grease/2,400 RPM, Open oil /3,200RPM

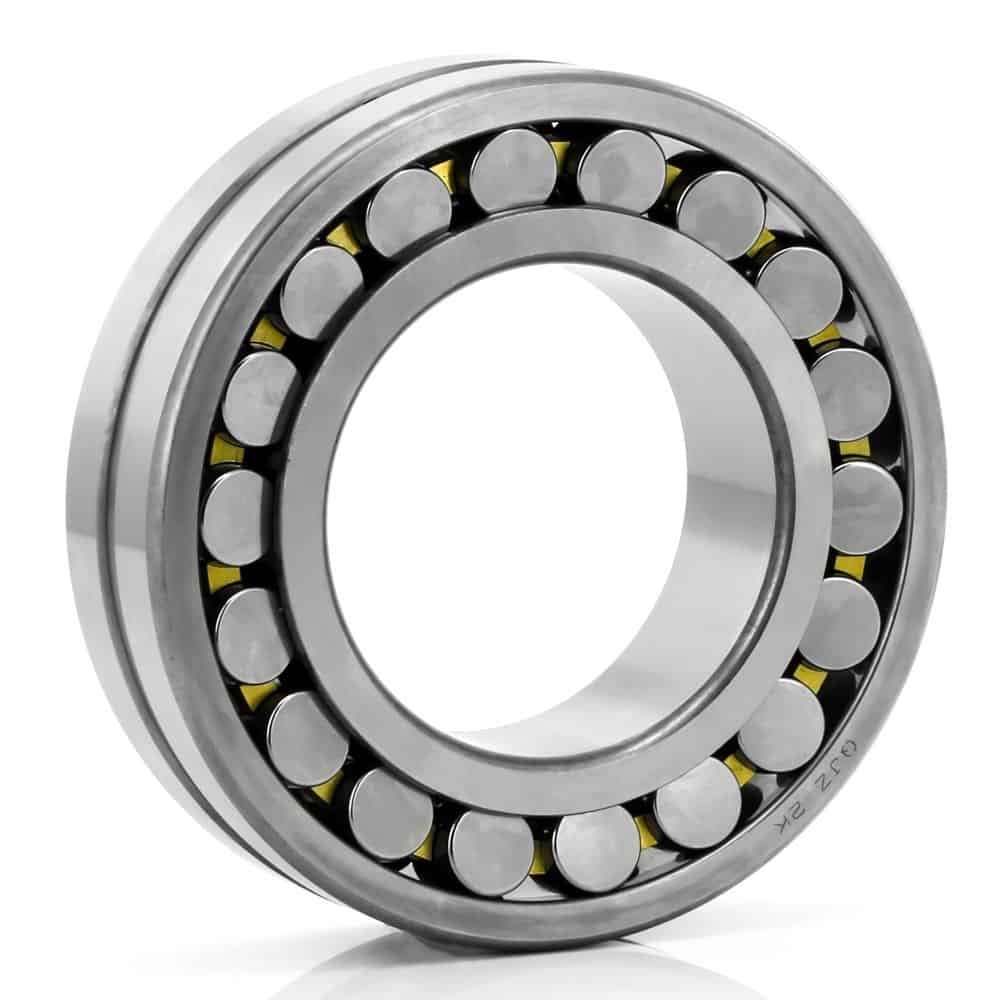

22315CAC3W33 Spherical Roller Bearing Brass Cage 75x160x55mm
Reference number: 22315, 22315ESTVPB, 22315R, SB22315, 22315E, 22315HL, 22315EB33, 22315VCF
ID: 75mm
OD: 160mm
Width: 55mm
Weight: 5230g
Limiting Speed: Sealed Grease/2,000 RPM, Open oil /2,800RPM

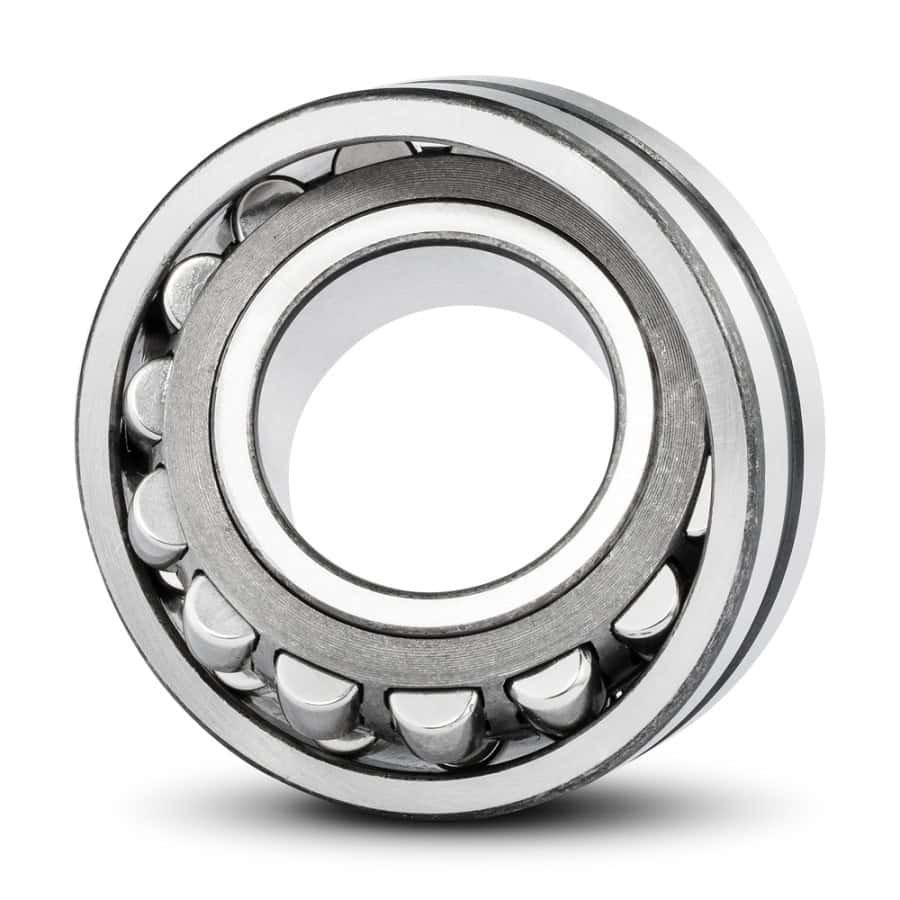

22217CCW33 Spherical Roller Bearing Steel Caged 85x150x36mm
Reference number: 22217, 22217ESTVPB, 22217R, SB22217, 22217E, 22217HL, 22217EB33, 22217VCF
ID: 85mm
OD: 150mm
Width: 36mm
Weight: 2830g
Limiting Speed: Sealed Grease/2,000 RPM, Open oil /2,800RPM
22218MBW33 Spherical Roller Bearing Double Brass Caged 90x160x40mm
Reference number: 22218, 22218ESTVPB, 22218R, SB22218, 22218E, 22218HL, 22218EB33, 22218VCF
ID: 90mm
OD: 160mm
Width: 40mm
Weight: 4000g
Limiting Speed: Sealed Grease/1,900 RPM, Open oil /2,600RPM

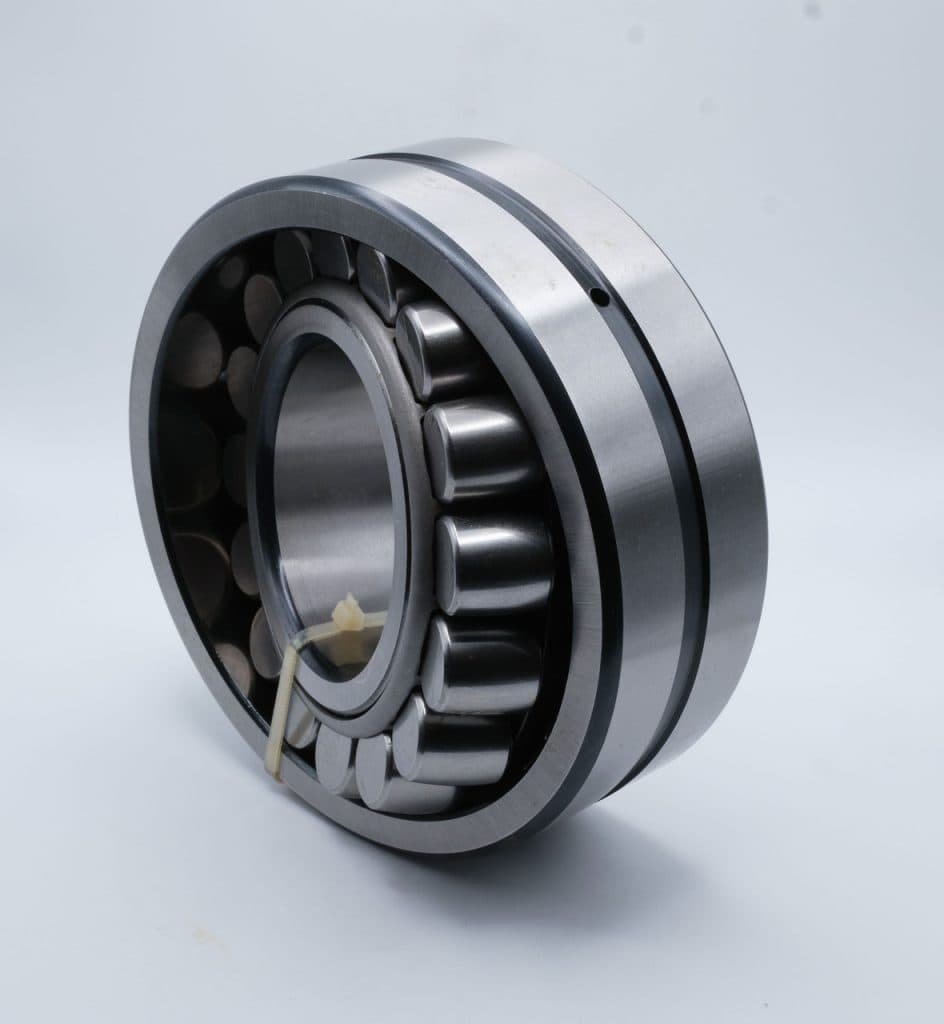

22318EW33 Explorer Spherical Roller Bearing 90x190x64mm
Reference number: 22318EW33, 22318E, 22318, 22318ESTVPB, 22318R, SB22318, 22318HL, 22318EB33, 22318VCF
ID: 90mm
OD: 190mm
Width: 64mm
Weight: 8880g
Limiting Speed: Sealed Grease/1,700 RPM, Open oil /2,200RPM
Comprehensive Guide to Spherical Roller Bearings: Understanding Types, Manufacturing Process, and Maintenance
For more information about products, the company, or shipping, you can also check out our other FAQs!
In mechanical components, bearings are pivotal in reducing friction between moving parts. Among various types, spherical roller bearings stand out for their unique capabilities and applications.
This comprehensive guide aims to demystify spherical roller bearings for business audiences, addressing key questions and highlighting their significance in various industries.

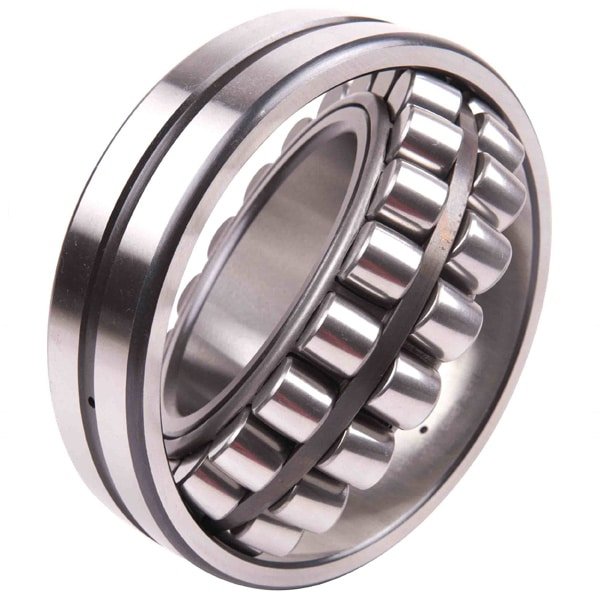

What is a Spherical Roller Bearing?
https://youtu.be/jCv-chQI1wQ?si=uP__p8tYfpYuUqDs
Spherical roller bearings are a type of rolling-element bearing that can handle heavy loads while accommodating misalignment. Unlike other bearings, spherical roller bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring, which has a spherical raceway.
This design allows the bearing to manage both radial and axial loads and to align itself correctly in the presence of shaft misalignment or bending.
Spherical Roller Bearing Nomenclature
Understanding the numbering system of spherical roller bearings is crucial for proper identification and selection. The spherical roller bearings number typically includes series, bore size, and additional features.
For instance, in the number 22220, ‘222’ indicates the bearing series, and ’20’ represents the bore size in millimeters.
Spherical Roller Bearing Material and Temperature Limits
Bearing rings and rolling elements can be made of a number of different materials, but the most common is “chrome steel”.Cage Materials – Available in steel, brass, or polyamide depending on the requirements of the application.
But it’s not just the steel itself that’s important. The way it’s treated and processed can make a big difference. Some spherical roller bearings go through a process called “hardening,” which is like a boot camp for steel, making it even tougher and more resistant to wear and tear. This extra step ensures that the bearings can withstand even the most challenging conditions.
Temperature Limits
Now, let’s talk about how spherical roller bearings handle the heat. Just like you and me, these bearings have a comfort zone regarding temperature. They’re designed to work best within a specific range of temperatures. If things get too cold or too hot, it can spell trouble.
When the temperature exceeds these limits, it’s like stressing the bearings. The materials can start breaking down, and the lubricant (like the oil in your car’s engine) can stop doing its job.
This is a big deal because the lubricant is what keeps everything moving smoothly. Without it, the bearings can get damaged, leading to all sorts of problems in the machinery they’re a part of.
Knowing these temperature limits is important because they tell you where spherical roller bearings can work their best. If you’re using them in a place that’s too hot or too cold, you might need to look at special types of spherical roller bearings that are made to handle those extreme temperatures. This way, you can ensure your machinery keeps running smoothly, regardless of weather or working conditions.
What is a spherical roller bearing used for?
spherical roller bearings are versatile and used in various sectors, including mining, construction, paper mills, wind turbines, and marine applications. Their ability to handle heavy loads and misalignment makes them ideal for applications with challenging operating conditions.
Advantages of Spherical Roller Bearings
The primary advantages of spherical roller bearings include:
- High load capacity
- Tolerance to misalignment
- Suitable for both radial and axial loads
- Robust in harsh environments
Why is BYWB Spherical Roller Bearing the Best Choice for You?
Need a trusted and well-known spherical roller bearing supplier? Look no further!
At BYWB, we specialize in producing various sizes of spherical roller bearings. We take pride in serving customers across over 20 countries with our high-quality products. Our bearings are crafted with precision and care. What’s more, we can tailor-make bearings for those special, one-of-a-kind projects. Our customers choose us for many reasons:
- A broad selection to choose from
- Compliance with ISO standards for quality
- Rigorous quality control processes
- Keeping a large stock (40%) for fast shipping
- Using premium materials for durability
- Providing custom sizing options
- Low minimum orders – just 100 units for standard items
- A strong 2-year warranty guarantee
Spherical Roller Bearings Price
The cost of spherical roller bearings varies based on size, material, and specific design features. Generally, they are more expensive than standard ball bearings due to their complexity and material quality.
However, BYWB Bearing offers spherical roller bearings at prices ranging from $5 to $1500, with a minimum order requirement of 1-1000 pieces.

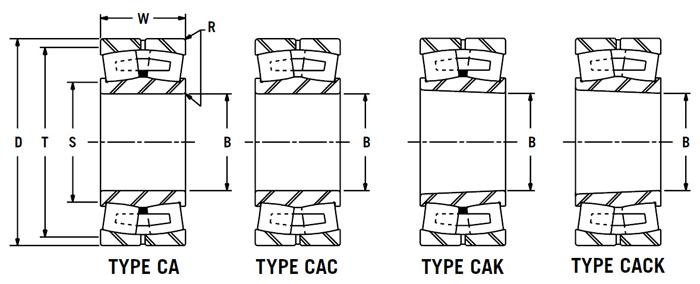

Types of Spherical Roller Bearings
Spherical roller bearings come in various types, each designed to meet specific needs and applications. Let’s break down these types in simple terms:
1. Spherical Roller Thrust Bearings
These are the go-to guys for handling heavy pushing or pulling forces, known as axial loads. Imagine them as the muscle in applications where parts need to move in a straight line, either up and down or side to side. They’re built tough to support these heavy loads without flinching.
2. Split Spherical Roller Bearings
Think of these as the convenient, time-saving heroes in the bearing world. They’re designed to be split in half, making them super easy to install and replace – especially in tight spots or where machinery is tough to take apart. This feature is a real game-changer in places where regular maintenance or replacement could be a headache.
3. Sealed Spherical Roller Bearings
These bearings come with their own built-in seals. Why is this cool? Because these seals keep bad stuff like dirt and dust out and the good stuff like lubricant in. This means they need less maintenance, last longer, and are more reliable, especially in dirty or gritty environments.
4. Spherical Roller Joint Bearings
These are the flexible acrobats of the bearing world. They’re designed to handle angles and bends, making them perfect for jobs where parts need to move in a straight line, tilt, or angle. Think of them like joints in the body – they allow for movement in different directions.
Each type of spherical roller bearing has its own unique strengths, making them suitable for a wide range of applications. Whether it’s handling heavy loads, fitting into tight spaces, working in dirty environments, or allowing for angular movement, there’s a spherical roller bearing designed to meet those specific challenges. This versatility makes spherical roller bearings valuable in many industrial and mechanical applications.
If you wanna see our Spherical Roller Bearing sample, please check our youtube channel
Spherical Roller Bearing Structure
Let’s break down the structure of a spherical roller bearing in simple terms:
1. Inner Ring with Two Raceways
The inner ring is a central part of the bearing. It has two grooved tracks, known as raceways. These raceways are where the magic happens – they provide a path for the rollers to move along.
2. Barrel-Shaped Rollers
The rollers in spherical roller bearings aren’t your typical cylinders; they’re barrel-shaped. This unique shape is key to how these bearings work. Because they’re rounded, they can handle loads coming from different directions, not just straight down. This makes spherical roller bearings really versatile and great at dealing with all sorts of pressure.
3. Cage
The cage in a spherical roller bearing is like a manager that keeps everyone in line – in this case, the barrel-shaped rollers. It holds these rollers in place and at equal distances from each other. This is important because it ensures that the load is evenly distributed across all the rollers, which helps the bearing run smoothly and last longer.
4. Outer Ring with a Spherical Raceway
The outer ring is the outermost part of the bearing and has a spherical raceway. This isn’t just a fancy term – it means that the track where the rollers sit is curved, like a part of a sphere. This curvature allows the bearing to self-align, which means it can adjust itself to handle misalignment.
Misalignment happens when the shafts the bearing is supporting aren’t perfectly straight. This spherical raceway allows spherical roller bearings to tolerate this misalignment without a hitch.
Spherical Roller Bearings vs. Ball Bearings
When comparing spherical roller bearings with ball bearings, there are distinct differences in their design and suitability for various applications:
Load Handling
Spherical roller bearings are the heavy lifters in the bearing world. They’re designed to handle heavy loads, making them ideal for industrial machinery and applications where the equipment has to bear a lot of weight or force.
Ball bearings, in contrast, are more suited for lighter loads. They work well in applications with less intense loads, like in smaller machinery or household appliances.
Misalignment Tolerance
Misalignment happens when the shafts that the bearings support are not perfectly aligned. Spherical roller bearings are particularly good at dealing with this. Their design allows them to adjust to slight misalignments without causing much trouble.
Ball Bearings, however, are less tolerant of misalignment. They work best when everything is perfectly aligned and can face issues if there’s a significant misalignment.
Speed Capability
When it comes to high-speed applications, Ball Bearings are usually the better choice. They are designed to easily handle higher speeds, making them suitable for applications like electric motors or automotive components. Due to their heavier design and load capacity, spherical roller bearings are not as efficient in very high-speed scenarios.
Design Differences
The fundamental design difference lies in the rolling elements. Spherical roller bearings use barrel-shaped rollers, which allow them to manage heavy loads and misalignments. Ball Bearings, as the name suggests, use spherical balls. These balls can rotate smoothly and quickly, excelling in high-speed applications.
What is the difference between spherical and cylindrical roller bearings?
The key difference lies in the roller shape and load handling. Spherical roller bearings have barrel-shaped rollers that can handle radial and axial loads. The main difference between these two types of roller bearings is the surface area that comes into contact with the inner and outer rings. Spherical roller bearings have a greater surface area than cylindrical roller bearings. This gives them the ability to handle higher loads.
Difference Between Tapered Roller and Spherical Roller Bearings
When comparing tapered roller bearings and spherical roller bearings, there are a few key differences to note:
Load Direction
Tapered roller bearings are built to manage large loads, but there’s a catch – they’re really good at handling these loads in one direction. This direction can be either radial (up and down) or axial (side to side), but not both simultaneously. Spherical roller bearings, on the other hand, are more versatile.
They can handle big loads coming from both radial and axial directions simultaneously. This makes them a more flexible option when you’re not sure which way the load will come from.
Handling Misalignment
Misalignment occurs when the parts a bearing supports aren’t perfectly lined up. Spherical roller bearings shine in these situations. Thanks to their spherical design, they can adjust themselves to accommodate misalignments.
This means they keep working smoothly even if things aren’t perfectly aligned. Tapered roller bearings, however, are not as forgiving when it comes to misalignment. They need things to be more precisely aligned to function effectively.
Roller Shape
The shape of the rollers in these bearings is also different. Tapered roller bearings have rollers that are tapered, meaning they are narrow at one end and wider at the other.
This shape is part of what allows them to handle loads in a specific direction. Spherical roller bearings, with their barrel-shaped rollers, are designed to spread the load over a larger area, so they can handle loads from different directions.
So, the main differences between tapered roller bearings and spherical roller bearings lie in the direction of the loads they can handle and their ability to deal with misalignment. Tapered roller bearings are great for one-directional loads and need precise alignment, while spherical bearings can take on loads from multiple directions and are more tolerant of misalignment.
Spherical Roller Bearing Size Chart
| Bearing | Boundary dimensions | Basic load Rationgs | Limiting speeds | Mass | |||||
|---|---|---|---|---|---|---|---|---|---|
| No. | mm | KN | RPM | kg | |||||
| Cylindrical | Tapered | d | D | B | Dynamic | Static | Grease | Oil | KG |
| bore | bore | Cr | Cor | ||||||
| 21304CA | - | 20 | 52 | 15 | 30.8 | 31.2 | 6000 | 7000 | 0.17 |
| 22205CC | - | 25 | 52 | 18 | 38.9 | 40.8 | 8500 | 11000 | 0.19 |
| 22205CA | - | 25 | 52 | 18 | 38.9 | 40.8 | 8000 | 10000 | 0.19 |
| 22205CTN1 | - | 25 | 52 | 18 | 41 | 43.7 | 8000 | 10000 | 0.19 |
| 21305CA | - | 25 | 62 | 17 | 41.5 | 44.2 | 5500 | 6800 | 0.28 |
| 22206 | 22206K | 30 | 62 | 20 | 30 | 21.8 | 5300 | 6700 | 0.5 |
| 22206CC | 22206CCK | 30 | 62 | 20 | 46 | 33.5 | 6500 | 8000 | 0.3 |
| 22206CA | 22206CAK | 30 | 62 | 20 | 51.8 | 56.8 | 6500 | 8000 | 0.33 |
| 21306CA | 21306CAK | 30 | 72 | 19 | 55.8 | 62 | 4500 | 6000 | 0.41 |
| 22207 | 22207K | 35 | 72 | 23 | 44.5 | 34 | 4800 | 6000 | 0.43 |
| 22207CC | 22207CCK | 35 | 72 | 23 | 59.5 | 44.5 | 5500 | 6500 | 0.45 |
| 22207CA | 22207CAK | 35 | 72 | 23 | 68.5 | 78.9 | 5600 | 7000 | 0.45 |
| 21307CA | 21307CAK | 35 | 80 | 21 | 63.5 | 73.2 | 4000 | 5300 | 0.54 |
| 22208 | 22208K | 40 | 80 | 23 | 48.8 | 39.2 | 4500 | 5600 | 0.55 |
| 22208CC | 22208CCK | 40 | 80 | 23 | 70.2 | 53 | 5000 | 6000 | 0.54 |
| 22208CA | 22208CAK | 40 | 80 | 23 | 78.5 | 90.8 | 5000 | 6300 | 0.54 |
| 21308CA | 21308CAK | 40 | 90 | 23 | 86.2 | 90.4 | 3600 | 4500 | 0.74 |
| 22308 | 22308K | 40 | 90 | 33 | 72.2 | 55.5 | 4000 | 5000 | 1.03 |
| 22308CC | 22308CCK | 40 | 90 | 33 | 105 | 82 | 4300 | 5300 | 1 |
| 22308CA | 22308CAK | 40 | 90 | 33 | 115 | 126 | 4300 | 5300 | 1 |
| 22209 | 22209K | 45 | 85 | 23 | 51.2 | 41.8 | 4000 | 5000 | 0.59 |
| 22209CC | 22209CCK | 45 | 85 | 23 | 73.2 | 56.5 | 4500 | 5500 | 0.58 |
| 22209CA | 22209CAK | 45 | 85 | 23 | 80.5 | 95.2 | 4500 | 5500 | 0.58 |
| 21309CA | 21309CAK | 45 | 100 | 25 | 102 | 110 | 4000 | 5000 | 1.02 |
| 22309 | 22309K | 45 | 100 | 36 | 105 | 85.8 | 3600 | 4500 | 1.4 |
| 22309CC | 22309CCK | 45 | 100 | 36 | 128 | 100 | 3800 | 4800 | 1.38 |
| 22309CA | 22309CAK | 45 | 100 | 36 | 142 | 170 | 4000 | 5000 | 1.38 |
| 22210 | 22210K | 50 | 90 | 23 | 51.2 | 41.8 | 3800 | 4800 | 0.87 |
| 22210CC | 22210CCK | 50 | 90 | 23 | 75.5 | 59 | 4000 | 5000 | 0.62 |
| 22210CA | 22210CAK | 50 | 90 | 23 | 83.8 | 102 | 4300 | 5300 | 0.63 |
| 21310CA | 21310CAK | 50 | 110 | 27 | 120 | 140 | 2800 | 3800 | 1.3 |
| 22310 | 22310K | 50 | 110 | 40 | 125 | 105 | 3400 | 4300 | 1.9 |
| 22310CC | 22310CCK | 50 | 110 | 40 | 158 | 125 | 3400 | 4300 | 1.85 |
| 22310CA | 22310CAK | 50 | 110 | 40 | 178 | 212 | 3800 | 4800 | 1.79 |
| 22211 | 22211K | 55 | 100 | 25 | 58.8 | 49.8 | 3400 | 4300 | 0.86 |
| 22211CC | 22211CCK | 55 | 100 | 25 | 92.2 | 72.2 | 3600 | 4600 | 0.84 |
| 22211CA | 22211CAK | 55 | 100 | 25 | 106 | 126 | 3800 | 5000 | 0.85 |
| 21311CA | 21311CAK | 55 | 120 | 29 | 142 | 170 | 2600 | 3400 | 1.65 |
| 22311 | 22311K | 55 | 120 | 43 | 152 | 122 | 3000 | 3800 | 2.4 |
| 22311CC | 22311CCK | 55 | 120 | 43 | 185 | 150 | 3000 | 3800 | 2.35 |
| 22311CA | 22311CAK | 55 | 120 | 43 | 210 | 252 | 3400 | 4300 | 2.31 |
| 22212 | 22212K | 60 | 110 | 28 | 80.2 | 70.2 | 3200 | 4000 | 1.22 |
| 22212CC | 22212CCK | 60 | 110 | 28 | 110 | 88.2 | 3200 | 4000 | 1.2 |
| 22212CA | 22212CAK | 60 | 110 | 28 | 118 | 145.6 | 3600 | 4500 | 1.2 |
| 21312CA | 21312CAK | 60 | 130 | 31 | 162 | 195 | 2400 | 3200 | 2.08 |
| 22312 | 22312K | 60 | 130 | 46 | 165 | 138 | 2800 | 3600 | 3 |
| 22312CC | 22312CCK | 60 | 130 | 46 | 212 | 172 | 2800 | 3600 | 2.95 |
| 22312CA | 22312CAK | 60 | 130 | 46 | 244 | 295 | 3200 | 4000 | 2.92 |
| 22213 | 22213K | 65 | 120 | 31 | 86.8 | 73.5 | 2800 | 3600 | 1.63 |
| 22213CC | 22213CCK | 65 | 120 | 31 | 151 | 193 | 2800 | 3600 | 1.52 |
| 22213CA | 22213CAK | 65 | 120 | 31 | 151 | 193 | 3200 | 4000 | 1.51 |
| 21313CA | 21313CAK | 65 | 140 | 33 | 182 | 228 | 2200 | 3000 | 2.57 |
| 22313 | 22313K | 65 | 140 | 48 | 185 | 155 | 2400 | 3200 | 3.6 |
| 22313CC | 22313CCK | 65 | 140 | 48 | 232 | 188 | 2400 | 3200 | 3.55 |
| 22313CA | 22313CAK | 65 | 140 | 48 | 265 | 320 | 2400 | 3200 | 3.51 |
| 22214 | 22214K | 70 | 125 | 31 | 92.2 | 81.5 | 2600 | 3400 | 1.66 |
| 22214CC | 22214CCK | 70 | 125 | 31 | 151 | 195 | 3000 | 3800 | 1.6 |
| 22214CA | 22214CAK | 70 | 125 | 31 | 151 | 195 | 3000 | 3800 | 1.63 |
| 21314CA | 21314CAK | 70 | 150 | 35 | 212 | 268 | 2000 | 2800 | 3.1 |
| 22314 | 22314K | 70 | 150 | 51 | 225 | 315 | 2200 | 3000 | 4.2 |
| 22314CC | 22314CCK | 70 | 150 | 51 | 262 | 362 | 2200 | 3000 | 4.4 |
| 22314CA | 22314CAK | 70 | 150 | 51 | 300 | 362 | 2800 | 3400 | 4.32 |
| 22215 | 22215K | 75 | 130 | 31 | 95 | 142 | 2400 | 3200 | 1.73 |
| 22215CC | 22215CCK | 75 | 130 | 31 | 162 | 214 | 2400 | 3200 | 1.82 |
| 22215CA | 22215CAK | 75 | 130 | 31 | 162 | 214 | 3000 | 3800 | 1.69 |
| 21315CA | 21315CAK | 75 | 160 | 37 | 238 | 302 | 1900 | 2600 | 3.76 |
| 22315 | 22315K | 75 | 160 | 55 | 262 | 388 | 2000 | 2800 | 5.23 |
| 22315CC | 222315CCK | 75 | 160 | 55 | 348 | 446 | 2000 | 2800 | 5.28 |
| 22315CA | 22315CAK | 75 | 160 | 55 | 348 | 446 | 2600 | 3200 | 5.89 |
| 22216 | 22216K | 80 | 140 | 33 | 115 | 180 | 2200 | 3000 | 2.28 |
| 22216CC | 22216CCK | 80 | 140 | 33 | 174 | 233 | 2200 | 3000 | 2.13 |
| 22216CA | 22216CAK | 80 | 140 | 33 | 174 | 233 | 2800 | 3400 | 2.26 |
| 21316CA | 21316CAK | 80 | 170 | 39 | 260 | 332 | 1800 | 2400 | 4.47 |
| 22316 | 22316K | 80 | 170 | 58 | 288 | 405 | 1900 | 2600 | 6.3 |
| 22316CA | 22316CAK | 80 | 170 | 58 | 391 | 507 | 2400 | 3000 | 6.32 |
| 22217 | 22217K | 85 | 150 | 36 | 145 | 228 | 2000 | 2800 | 2.83 |
| 22217CC | 22217CCK | 85 | 150 | 36 | 212 | 282 | 2000 | 2800 | 2.67 |
| 22217CA | 22217CAK | 85 | 150 | 36 | 212 | 282 | 2600 | 3200 | 2.87 |
| 21317CA | 21317CAK | 85 | 180 | 41 | 298 | 385 | 1700 | 2200 | 5.23 |
| 22317 | 22317K | 85 | 180 | 60 | 308 | 440 | 2200 | 2800 | 7.36 |
| 22317CA | 22317CAK | 85 | 180 | 60 | 432 | 560 | 2200 | 2800 | 7.27 |
| 22218 | 22218K | 90 | 160 | 40 | 168 | 272 | 1900 | 2600 | 4 |
| 22218CC | 22218CCK | 90 | 160 | 40 | 248 | 337 | 1900 | 2600 | 3.28 |
| 22218CA | 22218CAK | 90 | 160 | 40 | 248 | 337 | 2400 | 3000 | 3.67 |
| 21318CA | 21318CAK | 90 | 190 | 43 | 320 | 420 | 1600 | 2200 | 6.17 |
| 22318 | 22318K | 90 | 190 | 64 | 365 | 542 | 1700 | 2200 | 8.88 |
| 22318CA | 22318CAK | 90 | 190 | 64 | 496 | 640 | 2200 | 2600 | 8.63 |
| 22219 | 22219K | 95 | 170 | 43 | 212 | 322 | 1800 | 2400 | 4.55 |
| 22219CA | 22219CAK | 95 | 170 | 43 | 282 | 390 | 2200 | 2800 | 4.57 |
| 21319CA | 21319CAK | 95 | 200 | 45 | 355 | 485 | 1700 | 2200 | 7.15 |
| 22319 | 22319K | 95 | 200 | 67 | 385 | 570 | 1600 | 2000 | 10.38 |
| 22319CA | 22319CAK | 95 | 200 | 67 | 530 | 705 | 2000 | 2600 | 9.97 |
| 23120CA | 23120CAK | 100 | 165 | 52 | 326 | 490 | 1700 | 2200 | 4.43 |
| 22220 | 22220K | 100 | 180 | 46 | 222 | 358 | 1700 | 2200 | 5.12 |
| 22220CA | 22220CAK | 100 | 180 | 46 | 316 | 435 | 2200 | 2600 | 5.05 |
| 23220CA | 23220CAK | 100 | 180 | 60.3 | 420 | 630 | 1600 | 2200 | 6.52 |
| 21320CA | 21320CAK | 100 | 215 | 47 | 385 | 530 | 1600 | 2000 | 8.81 |
| 22320 | 22320K | 100 | 215 | 73 | 450 | 668 | 1400 | 1600 | 13 |
| 22320CA | 22320CAK | 100 | 215 | 73 | 618 | 832 | 1900 | 2400 | 12.8 |
| 23022 | 23022K | 110 | 170 | 45 | 195 | 410 | 1400 | 1800 | 4.05 |
| 23122CA | 23122CAK | 110 | 180 | 56 | 376 | 578 | 1600 | 2000 | 5.58 |
| 24122CA | 24122CAK | 110 | 180 | 69 | 458 | 775 | 1600 | 2000 | 6.63 |
| 22222 | 22222K | 110 | 200 | 53 | 288 | 465 | 1500 | 1900 | 7 |
| 22222CA | 22222CAK | 110 | 200 | 53 | 410 | 588 | 1900 | 2400 | 7.32 |
| 23222CA | 23222CAK | 110 | 200 | 69.8 | 520 | 800 | 1500 | 1900 | 9.46 |
The Bottom Line
Spherical roller bearings are essential in many industrial applications due to their robust design and ability to handle heavy loads and misalignment. Understanding their types, applications, and differences from other bearings is crucial for making informed decisions in angular contact bearings. We provide you the best bearing solutions besides offering the skilled professional team experience!
© COPYRIGHT NOTICE
Copyright of the pictures belong to the owner, not allow to copy or use without permission, the owner have the rights to pursue legal action, if you find infringement, please email us we will handle or remove immediately.
