Single-row Angular Contact Ball Bearing Manufacturer
Buy single-row angular contact ball bearings for high-precision and high-speed requirements at BYWB. Choose from our extensive range or get OEM/ ODM services.
Ask for A quick quote
We will contact you within 1 working day, please pay attention to the email with the suffix “@bywbbearing.com”
Top Single-row Angular Contact Ball Bearing Reviews
Let us review some of the top single-row angular contact ball bearings that we provide to our customers.

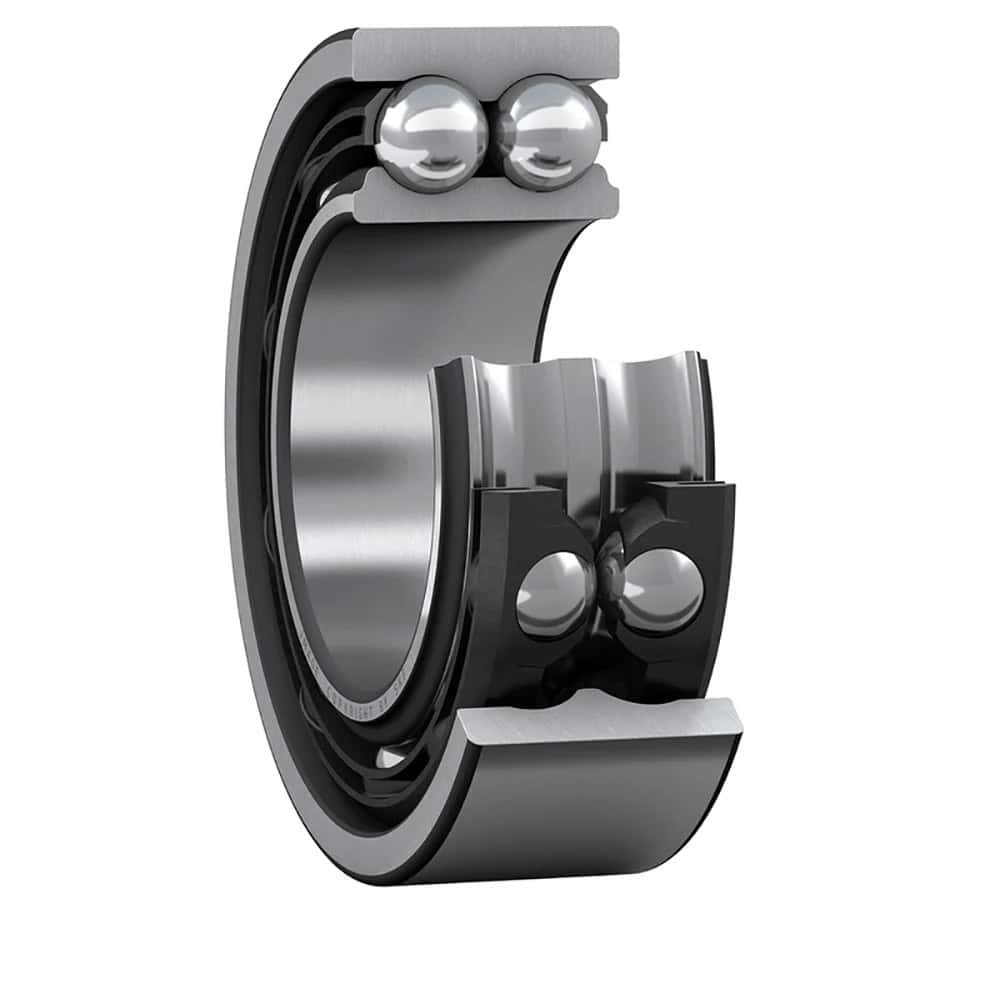

7200 BEP Phenolic Caged Angular Ball Bearing 10x30x9
Reference number: 7200BEP, 7200WN, 7200BE, 7200BXU, 7200BT1G, 7200BT1, 7200B, S6200BTA, 7200BPT
ID: 10mm
OD: 30mm
Width: 9mm
Weight: 29g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/24,000 RPM, Open oil / 32,000RPM

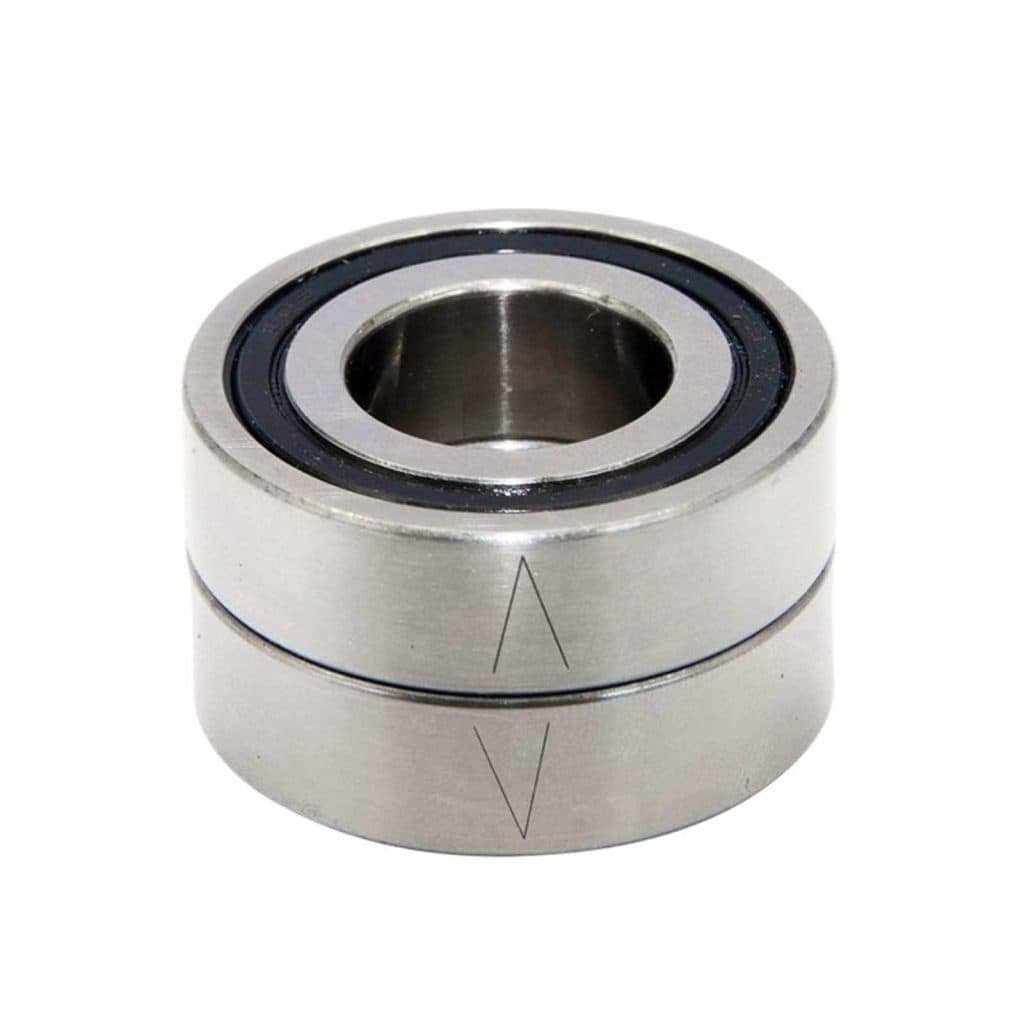

7201-B-XL-2RS-TVP Angular Contact Ball Bearing
Reference number: 7201, 7201B, 7201C, 7201H, 506302
ID: 12mm
OD: 32mm
Width: 10mm
Weight: 35g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/21,000 RPM, Open oil / 28,000RPM
7301 BEP Single Row Angular Contact Ball Bearing
Reference number: H20301, 7301B, 7301, 7301B, 7301B-TVP
ID: 12mm
OD: 37mm
Width: 12mm
Weight: 44g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/19,000 RPM, Open oil / 26,000RPM

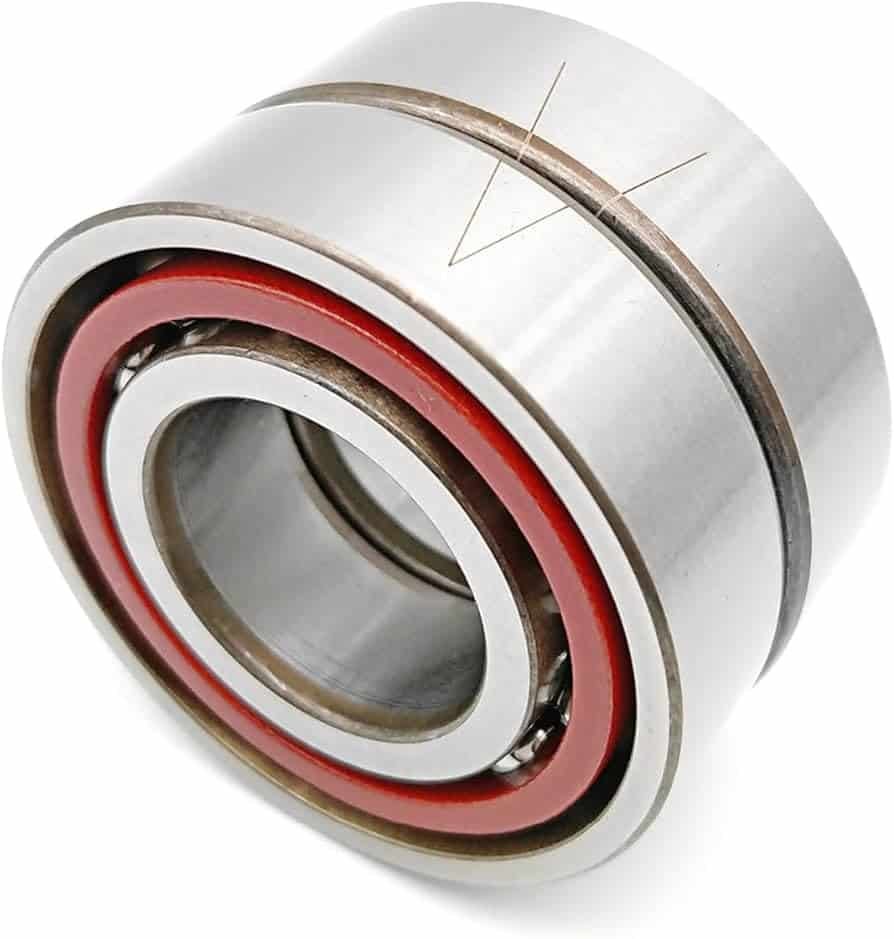

7006C Angular Contact Ball Bearing
Reference number: B7006C, 106KR-BKE, 7006X2, 7006DGL, 9106WI-CR, 7006CTL, 7006C, 7006X2TA, S6006CTA, EX30CEL, QOl06DRL7
ID: 30mm
OD: 55mm
Width: 13mm
Weight: 135g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/12,000 RPM, Open oil / 16,000RPM

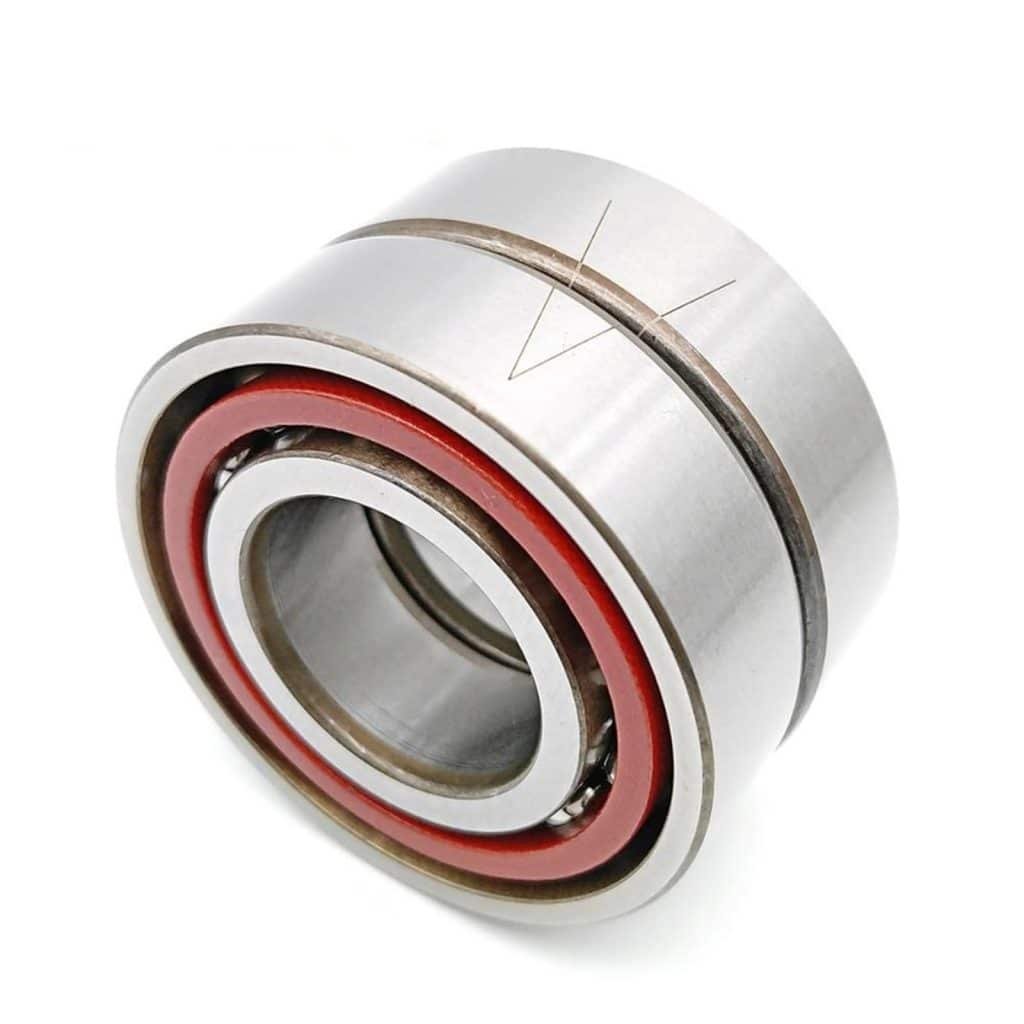

7203C Single Row Angular Contact Ball Bearing
Reference number: 7203CP5, 7203 C
ID: 17mm
OD: 40mm
Width: 12mm
Weight: 64g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/17,000 RPM, Open oil / 22,000RPM
7004-2RS Rubber Sealed Single Row Angular Contact Ball Bearing
Reference number: B7004C, 104KR, 7004X2, 7004DGL, 9104WI-CR, 7004CT1, 7004C, 7004X2TA, S6004CTAa, EX20CE1
ID: 20mm
OD: 42mm
Width: 12mm
Weight: 80g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/17,000 RPM, Open oil / 23,000RPM
7205 BE-2RZP Single Row Angular Contact Ball Bearing
Reference number: 7205BEP, 7205BE, 7205WN, 7205BYUGL, 7205BT1, 7205BT, S6205BTA, 7205B
ID: 25mm
OD: 52mm
Width: 15mm
Weight: 125g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/12,000 RPM, Open oil / 16,000RPM

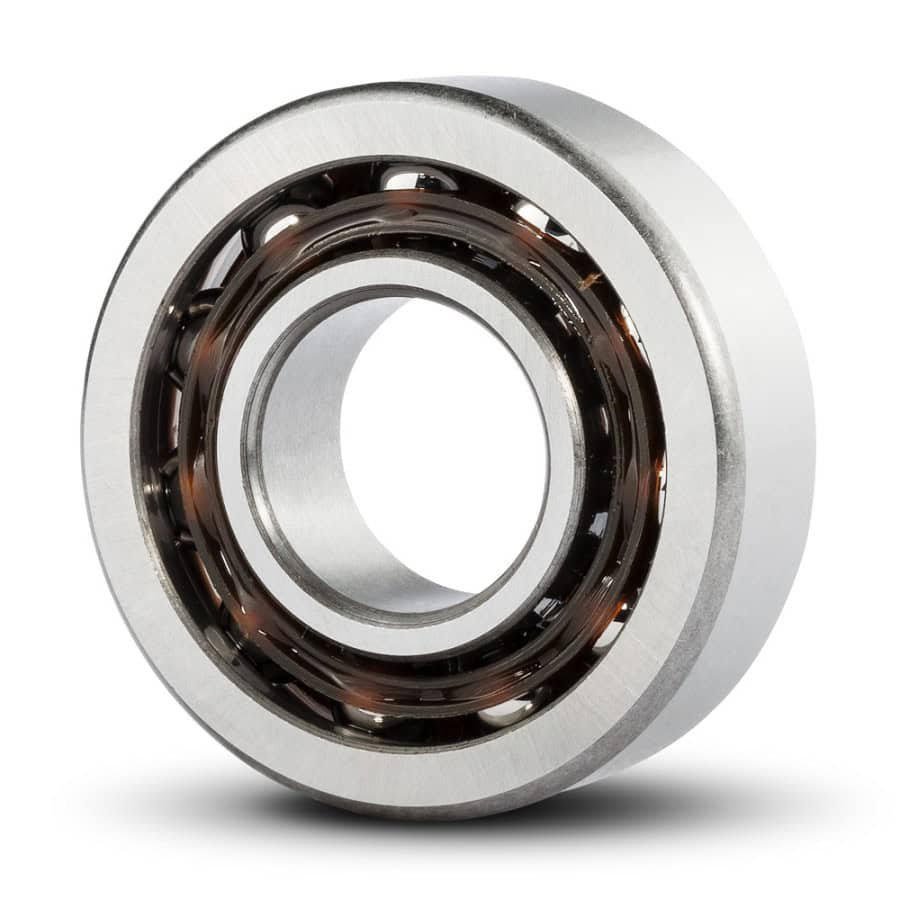

7207B Precision 40 Degree Angular Ball Bearing 35x72x17mm
Reference number: B7207E, 7207W, 7207PJ, 7207BTN9, 7207BTSU
ID: 30mm
OD: 72mm
Width: 17mm
Weight: 281g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/9,300 RPM, Open oil / 12,000RPM
7308C Precision 15 Degree Angular Contact Ball Bearing
Reference number: 7308C.T.P4A.UL, 7308CTGAP4, 308HDL, 2MMV308WICRDUL, ME1308DL, 7308C.T.P4A.UL, S6308CTAP4UL, 308KRDS-BKE#7, 2MM308WICRDUL
ID: 40mm
OD: 90mm
Width: 23mm
Weight: 625g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/7,400 RPM, Open oil / 9,900RPM

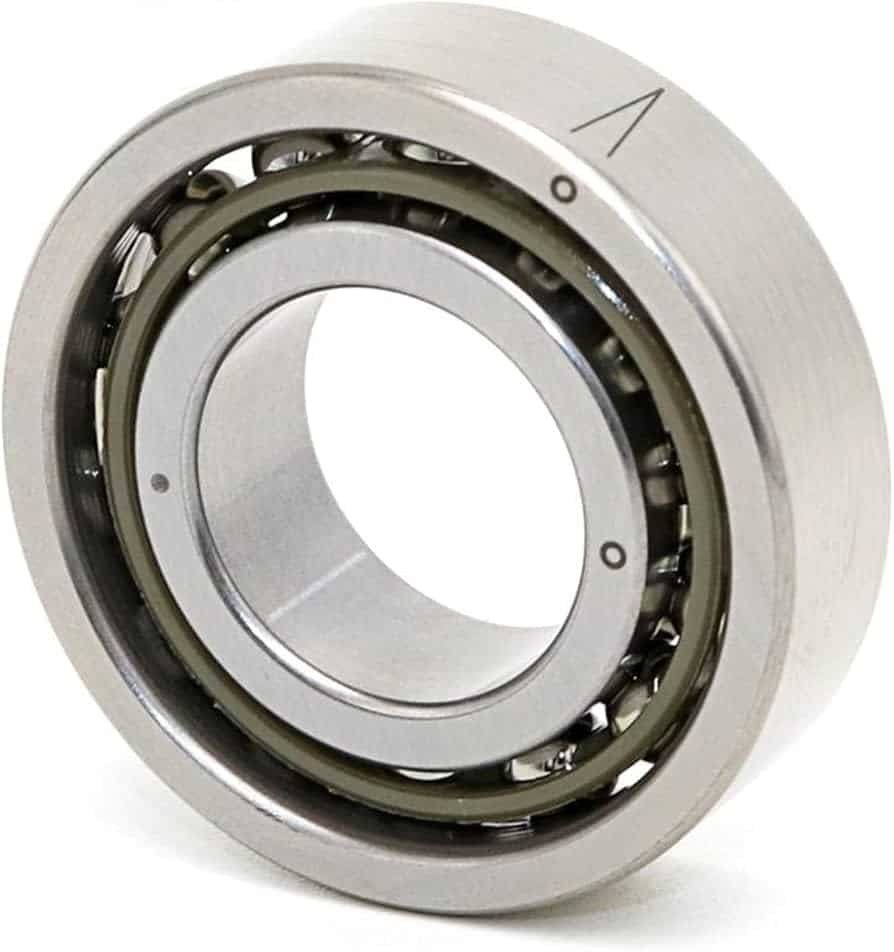

7009C Angular Contact Ball Bearing
Reference number: 7009.C.T.P2H.UL, 7009CTGAP4, 109HDL, 2MMV9109WICRDUL, B7009C.T.P4S.UL, ME1109DL, 7009CTYNSULP4, EX457CE1UL, 7009 CDGA/P4A, S6009CTAP4UL, 109KRDS-BKE#7, 2MM9109WICRDUL, 7009C-5GLFP4
ID: 45mm
OD: 75mm
Width: 16mm
Weight: 262g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/8,700 RPM, Open oil / 12,000RPM

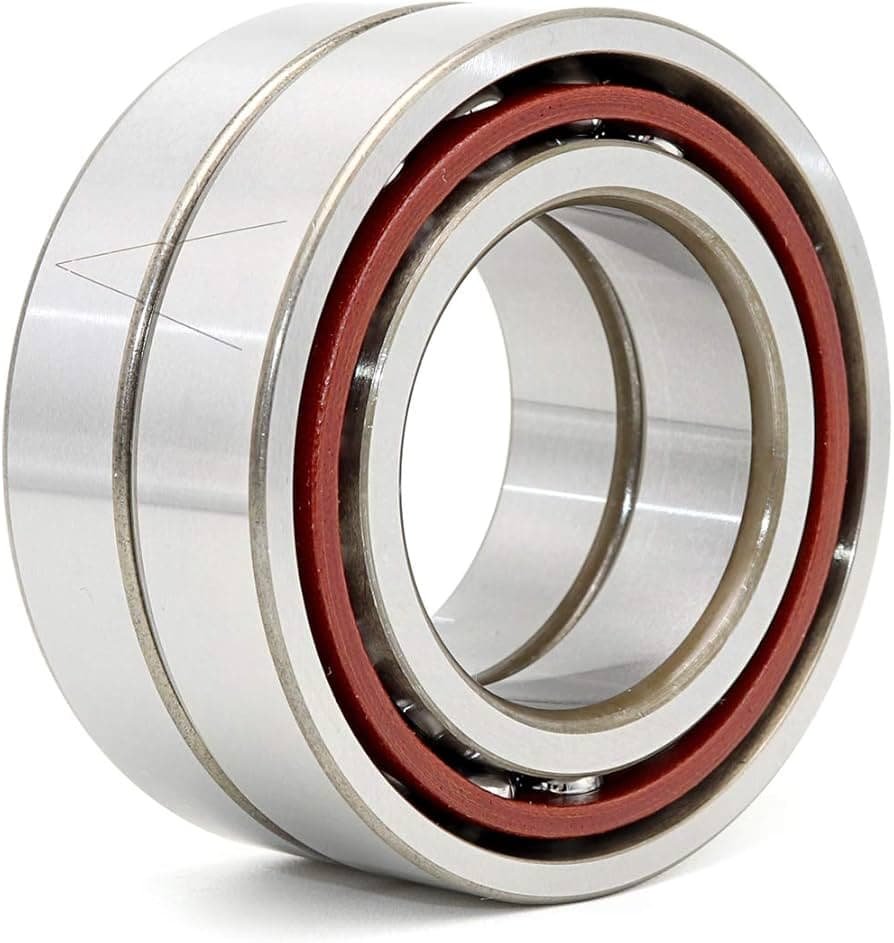

7210C Precision 15 Degree Angular Ball Bearing
Reference number: 7210.C.T.P2H.UL, 7210CTGAP4, 210HDL, 2MMV210WICRDUL, B7210C.T.P4S.UL, ME1210DL, 7210CTYNSULP4, E2507CE1UL, 7210 CDGA/P4A, S6210CTAP4UL, 210KRDS-BKE#7, 2MM210WICRDUL, 7210C-5GLFP4
ID: 50mm
OD: 90mm
Width: 20mm
Weight: 470g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/6,700 RPM, Open oil / 9,000RPM

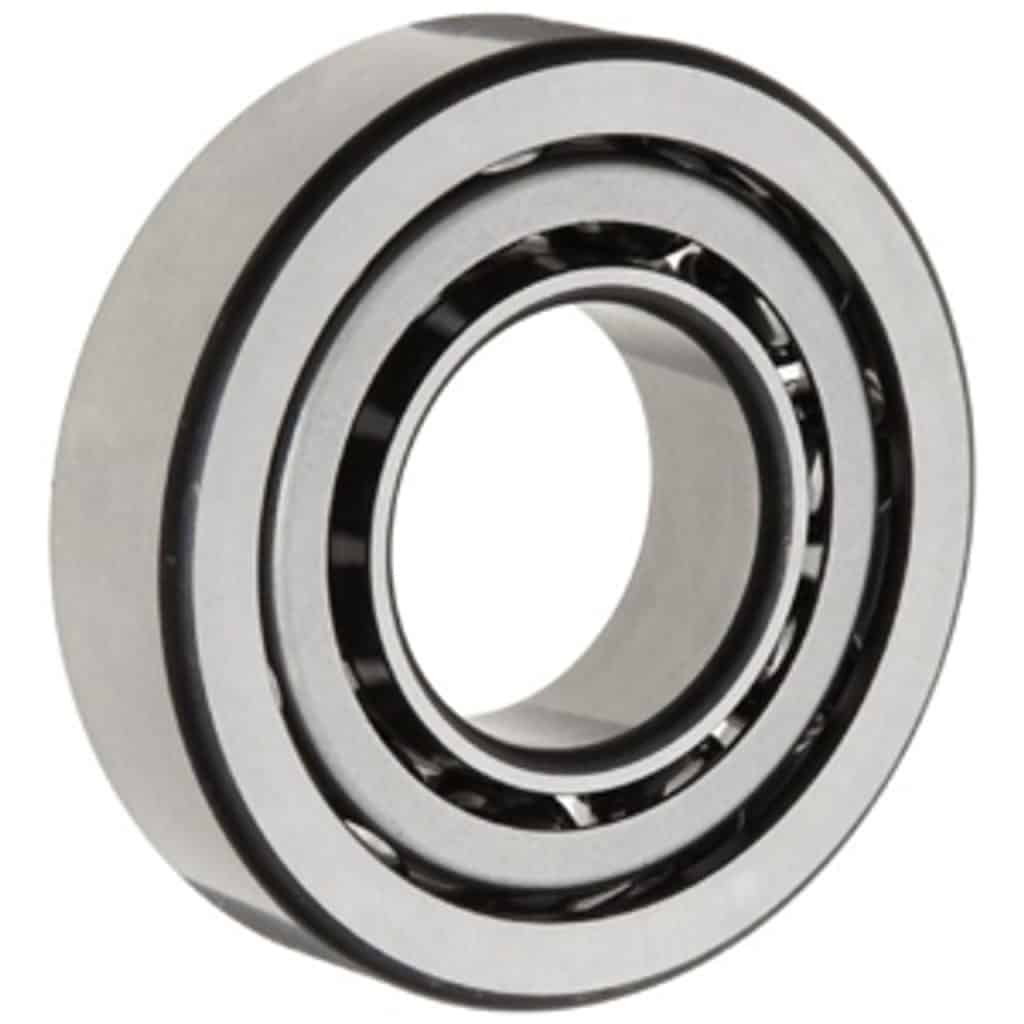

7310B Angular Contact Ball Bearing
Reference number: 7310B, 7310BECBM, 7310B-TVP-UA, 7310BYG, 7310BG, 7310WN MBR SU, 7310BETNU, 7310BGFY, 7310BMU, 7310BGA, 7310B, 7310WN SU, 310MF, 3310, 7310PJDU
ID: 50mm
OD: 110mm
Width: 27mm
Weight: 1090g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/6,000 RPM, Open oil / 8,100RPM

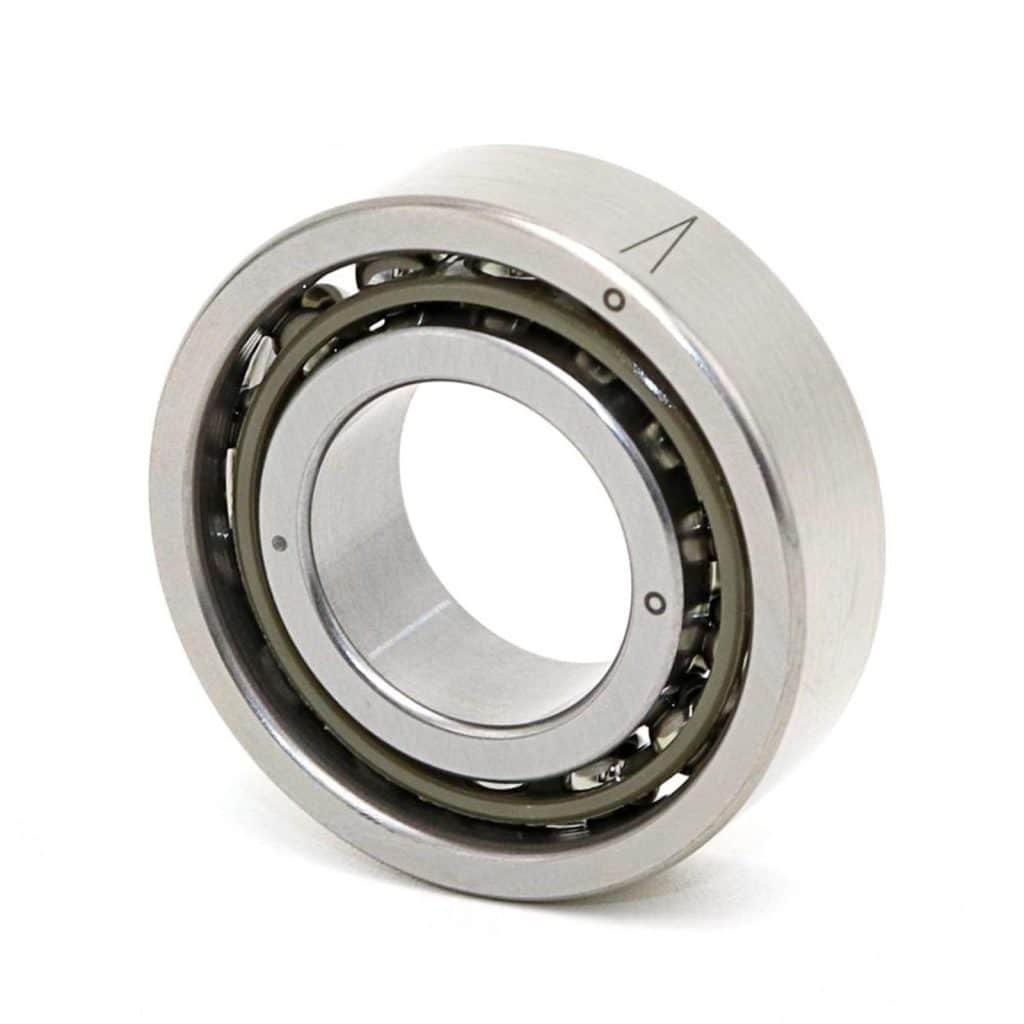

7011C Precision 15 Degree Angular Contact Ball Bearing
Reference number: 7011.C.T.P2H.UL, 7011CTGAP4, 111HDL, 2MMV9111WICRDUL, B7011C.T.P4S.UL, ME1111DL, 7011CTYNSULP4, EX557CE1UL, 7011 CDGA/P4A
ID: 55mm
OD: 90mm
Width: 18mm
Weight: 447g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/7,100 RPM, Open oil / 9,500RPM

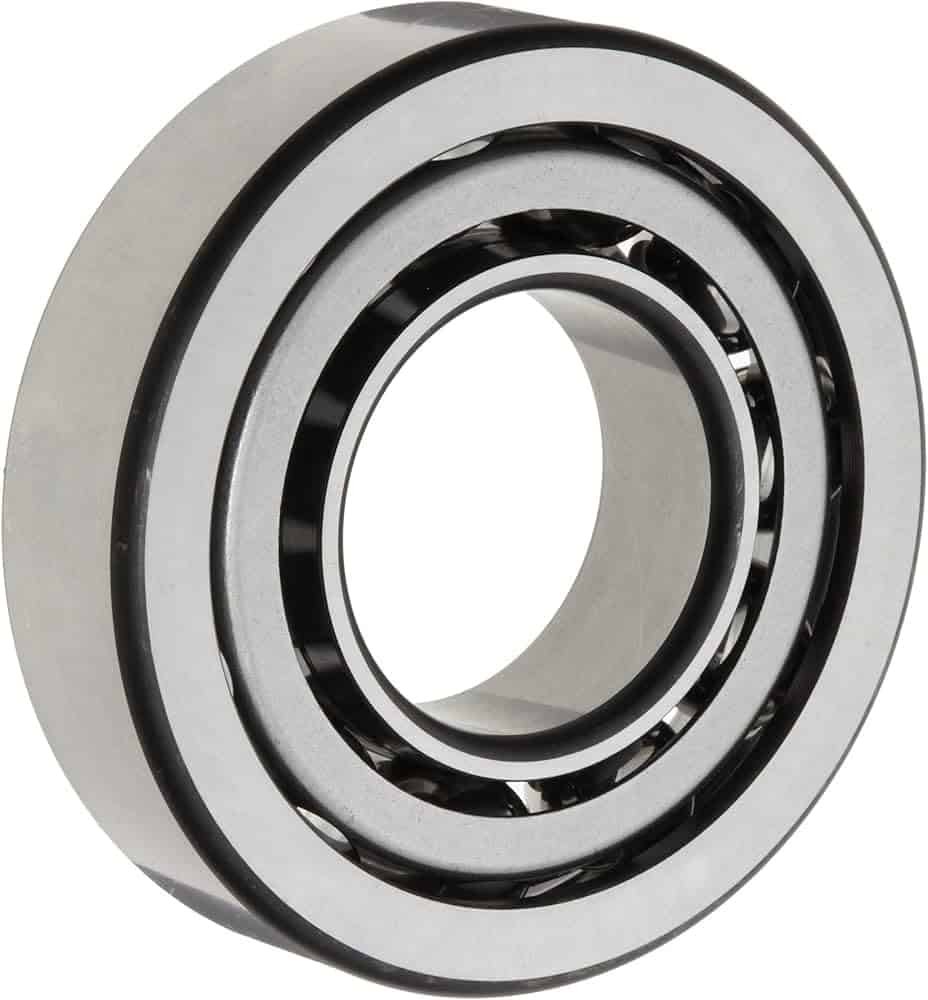

7211B Angular Contact Ball Bearing
Reference number: 7211TVP, 7211BTN, 7211BTVP, 7211B.TVP, 7211-B-TVP
ID: 55mm
OD: 100mm
Width: 21mm
Weight: 600g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/6,100 RPM, Open oil / 8,200RPM

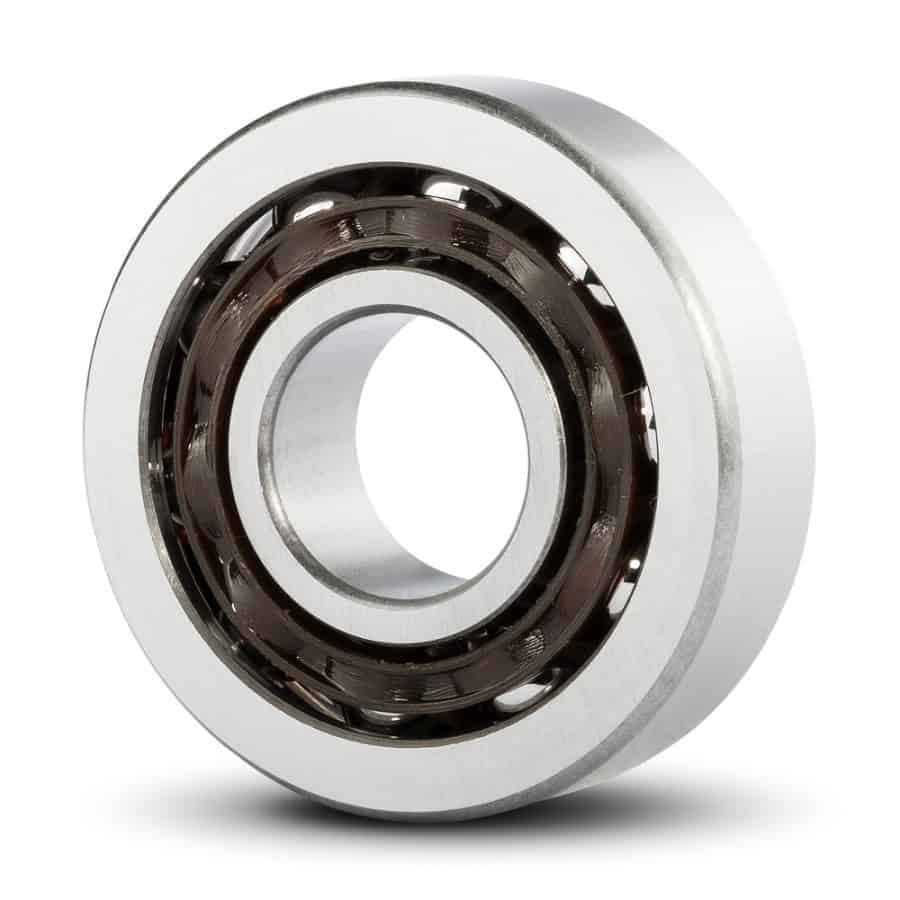

7311B Precision 40 Degree Angular Bearing
Reference number: 66311, 7311B.TVP, 7311, 7311B, 7311W, 7311X, 7311BEP, 7311BEPTN, 0311B, 55BA03, 7311BTT
ID: 55mm
OD: 120mm
Width: 29mm
Weight: 1390g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/5,500 RPM, Open oil / 7,300RPM
7012C Precision 15 Degree Angular Ball Bearing
Reference number: 7012C, 7012, B7012C, B7012E
ID: 60mm
OD: 95mm
Width: 18mm
Weight: 478g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/6,600 RPM, Open oil / 8,800RPM

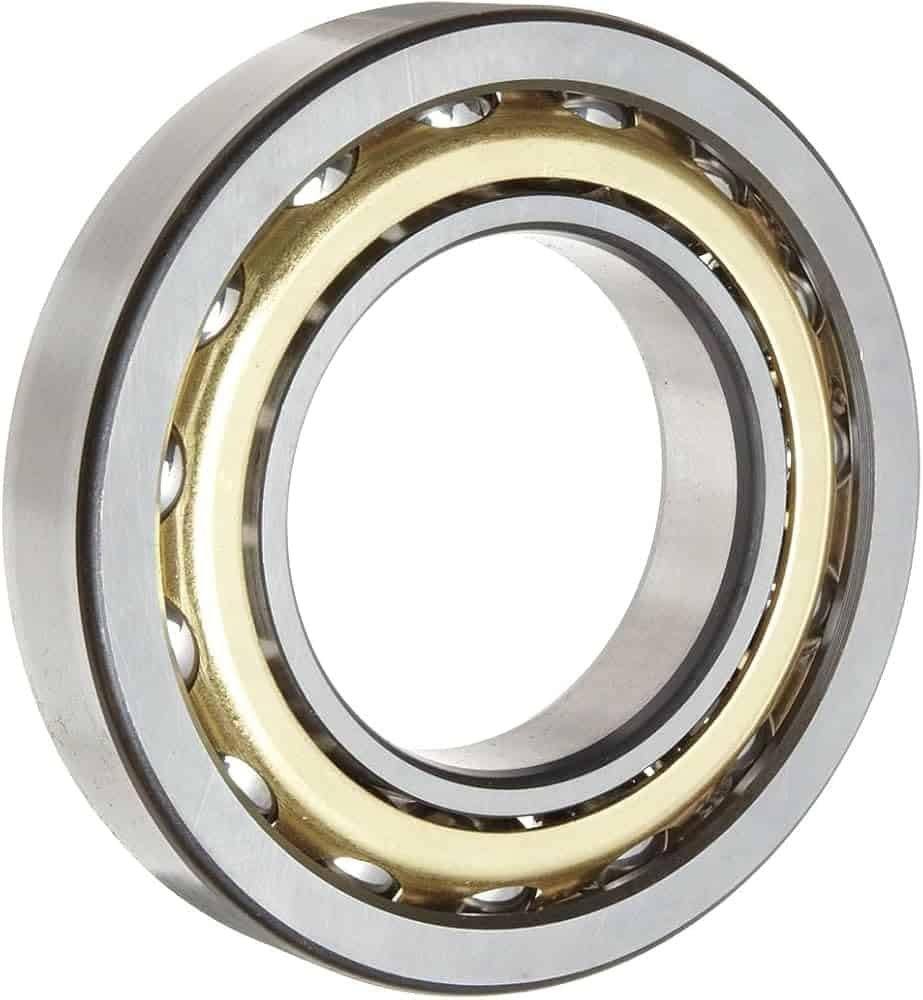

7314 BECBM Single Row Angular Contact Ball Bearing
Reference number: 7314PJ, 7314BE, 7314WN, 7314BYUGL, 7314BT1, 7314B, S6314BTA
ID: 70mm
OD: 150mm
Width: 35mm
Weight: 2560g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/4400 RPM, Open oil / 5800 RPM

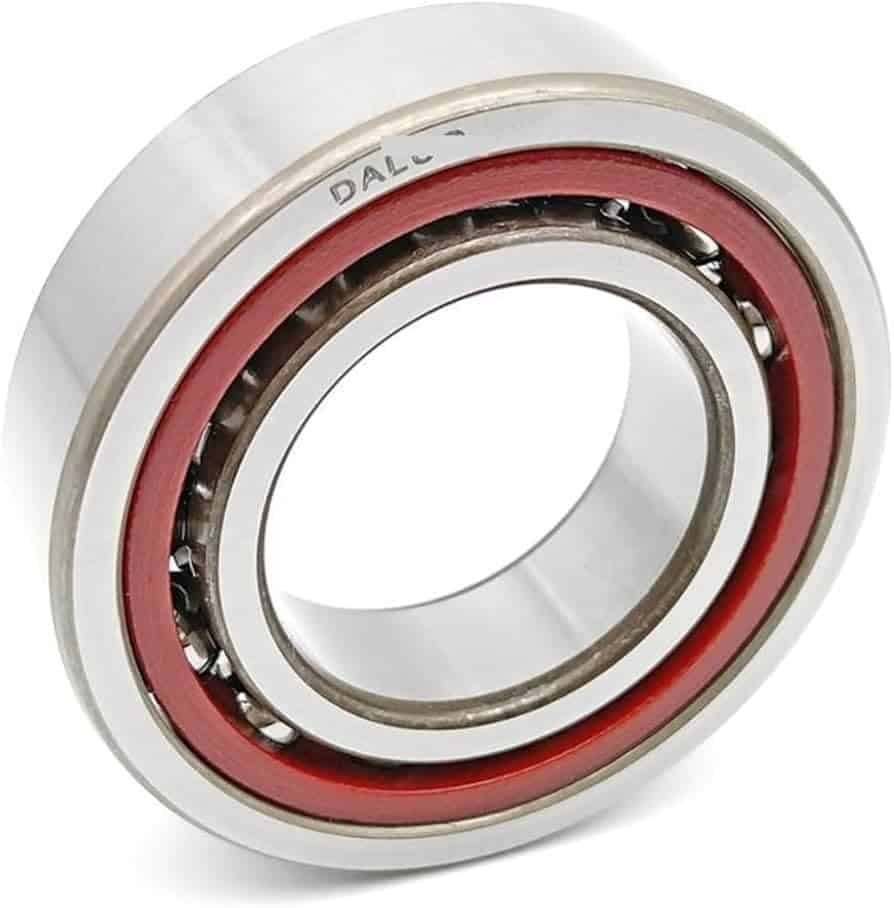

7015C Single Row Angular Contact Ball Bearing
Reference number: 7015C,7015 CD/P4A,7015 A5TRDULP3
ID: 75mm
OD: 115mm
Width: 20mm
Weight: 745g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/5,300 RPM, Open oil / 7,100 RPM

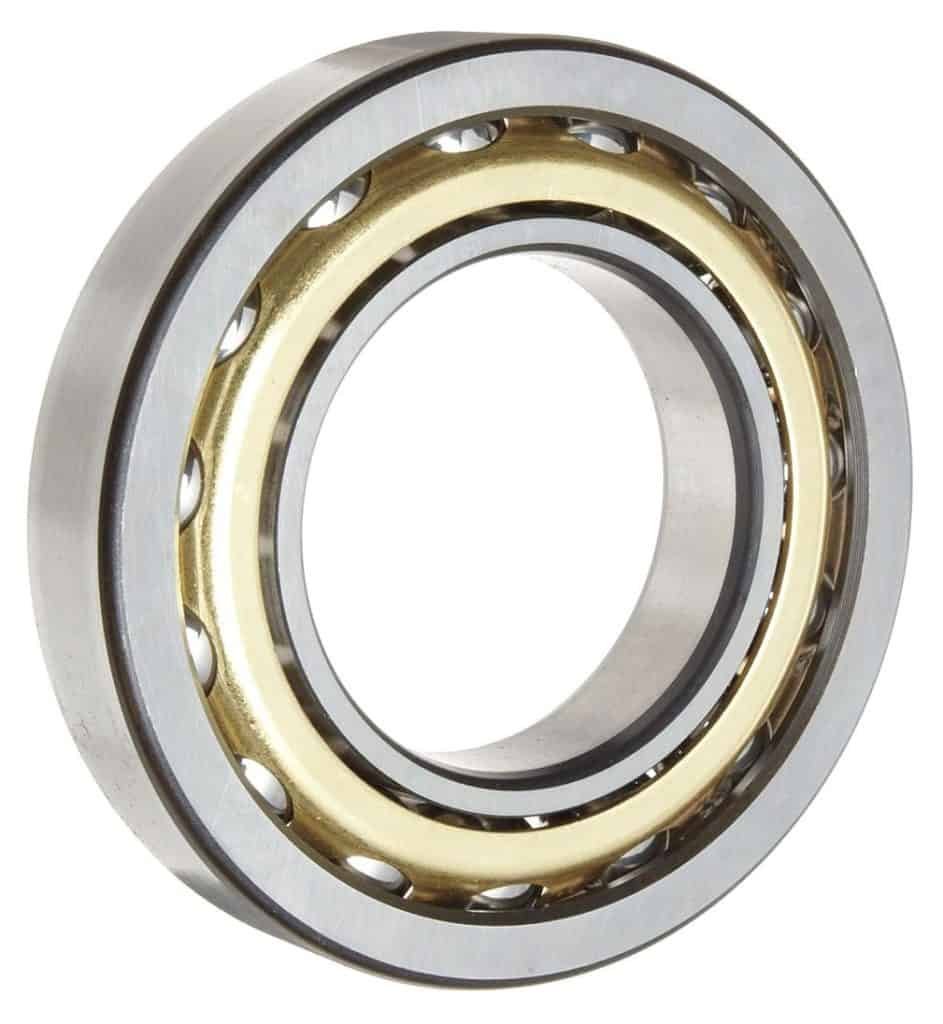

7215B Precision 40 Degree Angular Contact Ball Bearing
Reference number: 7215B,7215BMU,7215 BW,7215BECBP
ID: 75mm
OD: 130mm
Width: 25mm
Weight: 1200g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/4500 RPM, Open oil / 6000 RPM

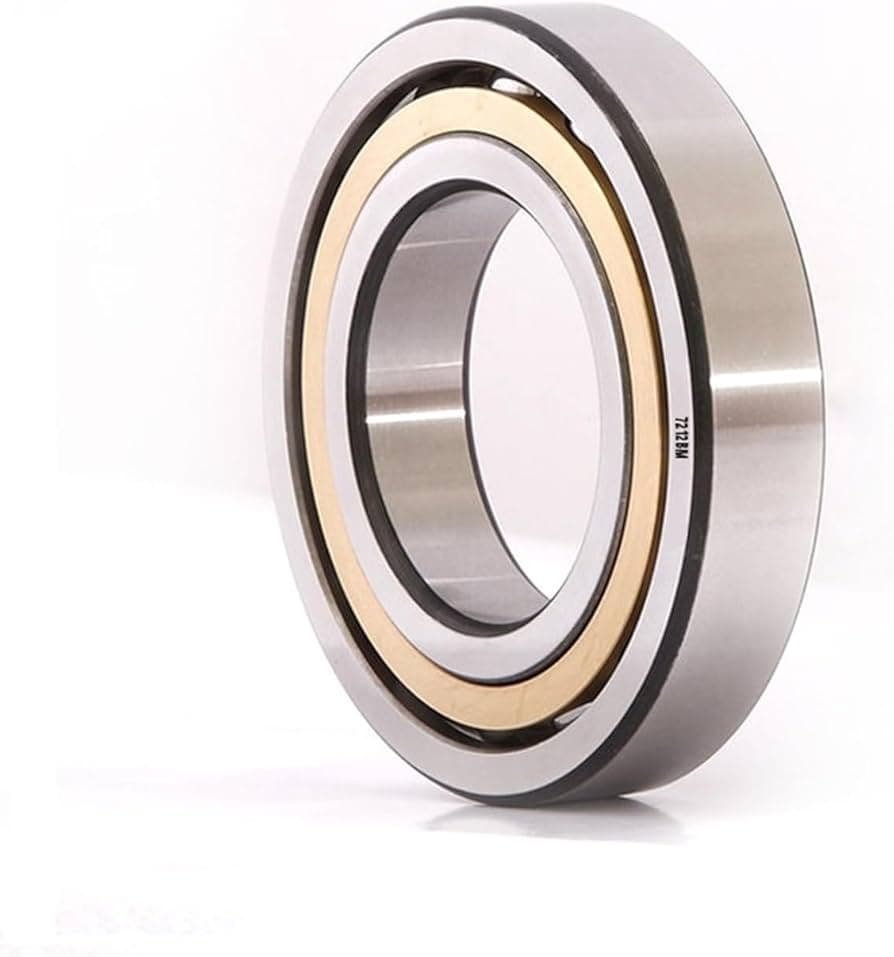

7315 Single Row Angular Contact Ball Bearing
Reference number: 7315BECBM,7315 BL1G, 7315 BE-CB-Y,7315BECBP
ID: 75mm
OD: 160mm
Width: 37mm
Weight: 3070g
Ball bearing seals: Open, ZZ, 2RS
Limiting Speed: Sealed Grease/4,100 RPM, Open oil / 5,400 RPM
Comprehensive Guide to Single-row Angular Contact Ball Bearings: Understanding Types, Manufacturing Process, and Maintenance
For more information about products, the company, or shipping, you can also check out our other FAQs!
Angular contact bearings are the best choice for massive radial and axial loads. They are suitable for high-precision, high-speed applications across various industries. BYWB offers an extensive range of single-row angular contact ball bearings to meet your requirements. You can also get double-row angular contact ball bearings for your respective needs.
We deal in angular contact bearings of multiple types, sizes, and materials. Check our wide variety of ball bearings or get in touch for custom manufacturing.

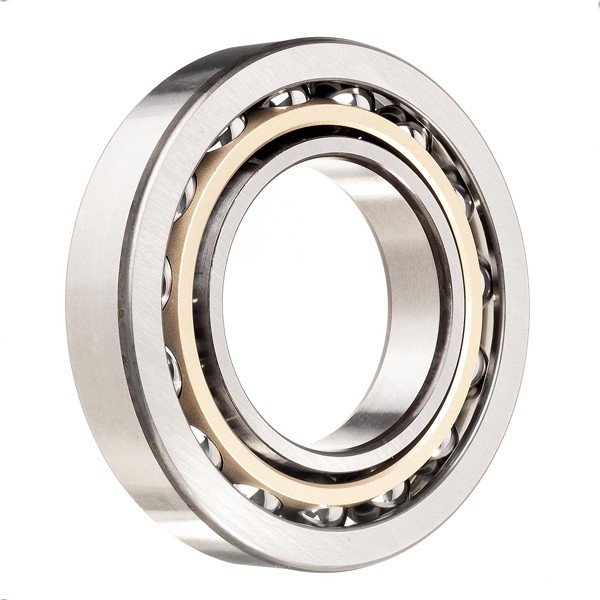

What are Single-row Angular Contact Ball Bearings?
https://www.youtube.com/shorts/2cSe_I4fmgM
Single-row angular contact ball bearings are non-separable radial ball bearings. They have a contact angle of 30° or 40°, allowing them to take higher radial loads. The contact angle runs through the point of contact of the balls with the outer and inner rings. Furthermore, they can also take single-direction axial loads.
The bearing rings have one low and one high shoulder. The cages are made from sheet steel, brass, or polyamide. Moreover, the raceways on the outer and inner rings are oblique to each other. Due to the difference in the manufacturing and shoulder heights, their mounting method differs.
Single-row angular contact ball bearings have three contact angles for high axial load endurance; they are typically used in pairs because of their unique structure. The angular contact ball bearings are ideal for applications that require high bearing rigidity.
Why is BYWB Bearings the Best Choice for Angular Contact Ball Bearings?
If you are looking for a seasoned, well-known, and credible angular contact ball-bearing supplier, we’ve got you covered!
BYWB is experienced in manufacturing angular contact bearings of all types. You can get single and double-row angular contact ball bearings to meet all your needs. We are a consistent ball bearings supplier to many clients in over 20 countries.
Our products are high-quality and made to precision to meet your needs. Besides our standard products, we are happy to offer customization services. Here’s what makes us a favorite among our clients:
- Wide variety of options
- ISO-standard manufacturing
- Strict quality check
- 40% bearing range always in stock
- Premium quality raw material
- Custom machined bearings
- Lower MOQ (only 100 pcs for regular products)
- 2 years extensive warranty
How Do Angular Contact Ball Bearings Work?
When a radial load is applied to an angular contact ball bearing, it produces an axial component; this requires a multi-bearing arrangement. The preload increases the rigidity of single-row ball bearings where high running accuracy is required. Smaller contact angles are suitable for high-speed applications, whereas larger ones support higher axial loads.
Angular contact bearings are always assembled in opposite positions with the internal clearance adjusted. They typically comprise pressed steel cages. However, high-precision single-row angular contact ball bearings may have polyamide resin cages.
The internal clearance is determined by adjusting the axial clearance of the shaft. Slight misalignment between the shaft and housing is acceptable in single-bearing assemblies. The value typically lies between 0.10° and 0.15° when the assembly clearance for a preloaded assembly is 0.06°.
High-speed precision angular contact bearings are widely used in high-speed rotating applications. They are handy in low temperatures, high speed, and low vibration. These bearings are also used to support high-speed electric spindles of internal surface grinding machines.
Modern angular contact ball bearings have sufficient roller bearing grease and require no maintenance in various applications. At the same time, the bearings do not dissipate heat when using grease as a lubricant.
Angular Contact Ball Bearing Application
Angular contact ball bearings are widely used when you require rigid axial guidance and combined load support. Moreover, they also prove helpful when moderate to high loads are present on one side, high speed is required, or the bearing arrangement is preloaded.
Common applications of angular contact ball bearings include:
- Electric motors
- Pumps
- Screw chillers
- Gearboxes
- Elevator hoists
- Clutches
- Compressors
Single-Row Angular Contact Ball Bearing Arrangement
As angular contact ball bearings are used in pairs, they can be arranged in multiple ways. Single-row angular contact ball bearings with a universal design are typically mounted in the direction of the contact angle; they can handle axial loads in that direction only. Single row bearings are mounted:
Face-to-face: Face-to-face mounted ball bearings can take axial and radial loads in either direction and have a low momentary and alternating radial force capacity; they have a smaller distance between the loading point and the bearing center. However, they can handle more misalignment than other arrangements.
Back-to-back: The other type of single ball bearing arrangement, the back-to-back arrangement is the most common. It accommodates axial and radial loads in all directions due to a larger distance between the loading point and the bearing center. So, back-to-back mounted single row angular bearings can bear large momentary and alternating radial forces.
Tandem: Tandem angular contact ball bearing arrangement has parallel contact lines that allow equal distribution of axial forces. Thus, they can handle heavy axial loads. Single row angular contact bearings in tandem arrangement can bear singe-direction radial and axial loads.
Single-Row Angular Contact Ball Bearings Installation
Angular contact ball bearings are easy to install and take less time. They can be installed face-to-face, back-to-back, or in tandem. Back-to-back installation spreads the contact angle along the axis of rotation. It increases the rigidity, allowing the highest resistance to deformation.
Furthermore, the contact angle converges in the direction of the axis of rotation during installation. The supporting angle becomes less rigid. As the outer rings of the bearings press together, the inner ring sticks out, eliminating the outer ring’s original clearance. Thus, it increases the preload of the bearing.
Due to the contact angles of the bearings in the same directions, the bearings share the working load in the same direction. Make sure that the pairs in series are opposite to each other at both ends of the shaft.
A few precautions can help with the seamless installation of single-row angular contact ball bearings:
- Make sure you follow the right technique.
- Heat the inner race of the bearing with an induction heater or arbor press within material limits like lubrication, seal, or cage limit.
- Avoid using a ball pen to prevent damage to the bearing.
- Do not use a hammer except a dead blow hammer with an intermediary tool.
Single Row VS Double Row Bearings
Angular contact bearings of single-row and double-row have unique applications across multiple industries.
Single-row bearings are non-separable ball bearings and have one row of rolling elements. They comprise an outer ring, inner ring, balls, and cage. They are very durable and suitable for high-speed operation. Single-row angular contact ball bearings change the sliding friction between the shaft seat and the running shaft into rolling friction.
On the other hand, double-row angular contact ball bearings have two rows of rolling balls, allowing them to endure bidirectional axial and radial loads. They have a design similar to deep groove ball bearings with tightness between the balls and the raceway. These angular ball bearings are suitable for overturning moments as they have high rigidity. So, you will find them in cars’ front wheel hubs.
Double-row ball bearings have the same structure as single-row angular contact ball bearings in an O arrangement. The contact angle, width, and design of the rings differ.
Difference between Angular Contact And Deep Groove Ball Bearing
Angular Contact Ball Bearings
Angular contact ball bearings have a contact angle between the ball and the ring. The standard contact angle is 15/25 with three types of 40 degrees. Single angular contact bearings can take one-way axial load, radial load, DF combination, and DB combination. At the same time, double-row angular contact ball bearings can support axial, radial, DT combination, and high-speed use. Thus, they are suitable for high-precision, high-speed applications.
Deep Groove Ball Bearings
Deep groove ball bearings are the most widely used with deep raceways. They can support radial and axial loads. They are suitable for smaller axial, radial, moment loads, and radial forces. The bearings have a zero contact angle when bearing radial loads. They have a small friction coefficient and a high-speed limit.
However, when the deep groove ball bearing has a high radial clearance, it acts as an angular contact bearing and can take large axial loads.
Angular Contact Vs Radial Bearing
Radial and angular contact bearings are often confused because of their similar external look. However, they have a different internal structure. Angular contact ball bearings have angled rings that apply pressure on the balls. Properly loaded angular contact ball bearings last longer than radial bearings. Yet frame misalignment can lead to faster deterioration than the latter.
At the same time, radial bearings contain grooves on the outer and inner edges where the balls reside. They are more rigid than radial bearings and are not affected much by alignment differences. Their non-angled surface reduces stress due to the load. However, corrosion can damage radial bearings faster.
Single Row Angular Contact Ball Bearing Size Chart
| Bearing No. | Boundary dimensions | Basic load ratings | Limiting speeds | Mass | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| KN | RPM | kg | ||||||||
| d | D | B | R | r | dynamic Cr | static Cor | Grease | Oil | ||
| 7000 | 10 | 26 | 8 | 0.3 | 0.15 | 4650 | 2070 | 28000 | 37000 | 0.023 |
| 7200 | 10 | 30 | 9 | 0.6 | 0.3 | 5000 | 2520 | 24000 | 32000 | 0.029 |
| 7300 | 10 | 35 | 11 | 0.6 | 0.3 | 9500 | 4600 | 22000 | 29000 | 0.04 |
| 7001 | 12 | 28 | 8 | 0.3 | 0.15 | 5050 | 2470 | 25000 | 33000 | 0.025 |
| 7201 | 12 | 32 | 10 | 0.6 | 0.3 | 6600 | 3350 | 21000 | 28000 | 0.035 |
| 7301 | 12 | 37 | 12 | 1 | 0.6 | 10500 | 4950 | 19000 | 26000 | 0.044 |
| 7002 | 15 | 32 | 9 | 0.3 | 0.15 | 5800 | 3150 | 22000 | 29000 | 0.035 |
| 7202 | 15 | 35 | 11 | 0.6 | 0.3 | 8350 | 4350 | 18000 | 25000 | 0.046 |
| 7302 | 15 | 42 | 13 | 1 | 0.6 | 12500 | 6650 | 17000 | 22000 | 0.055 |
| 7003 | 17 | 35 | 10 | 0.3 | 0.15 | 7150 | 3850 | 19000 | 26000 | 0.046 |
| 7203 | 17 | 40 | 12 | 0.6 | 0.3 | 11000 | 6100 | 17000 | 22000 | 0.064 |
| 7303 | 17 | 47 | 14 | 1 | 0.6 | 14800 | 8000 | 15000 | 20000 | 0.107 |
| 7004 | 20 | 42 | 12 | 0.6 | 0.3 | 9700 | 5600 | 17000 | 23000 | 0.08 |
| 7204 | 20 | 47 | 14 | 1 | 0.6 | 13300 | 7700 | 15000 | 20000 | 0.1 |
| 7304 | 20 | 52 | 15 | 1.1 | 0.6 | 17300 | 9650 | 13000 | 18000 | 0.138 |
| 7005 | 25 | 47 | 12 | 0.6 | 0.3 | 10700 | 6850 | 14000 | 19000 | 0.093 |
| 7205 | 25 | 52 | 15 | 1 | 0.6 | 14800 | 9400 | 12000 | 16000 | 0.125 |
| 7305 | 25 | 62 | 17 | 1.1 | 0.6 | 24400 | 14600 | 11000 | 15000 | 0.23 |
| 7006 | 30 | 55 | 13 | 1 | 0.6 | 13900 | 9450 | 12000 | 16000 | 0.135 |
| 7206 | 30 | 62 | 16 | 1 | 0.6 | 20500 | 13500 | 11000 | 14000 | 0.198 |
| 7306 | 30 | 72 | 19 | 1.1 | 0.6 | 31000 | 20500 | 9600 | 13000 | 0.345 |
| 7007 | 35 | 62 | 14 | 1 | 0.6 | 17500 | 12500 | 11000 | 14000 | 0.18 |
| 7207 | 35 | 72 | 17 | 1.1 | 0.6 | 27100 | 18400 | 9300 | 12000 | 0.281 |
| 7307 | 35 | 80 | 21 | 1.5 | 1 | 36500 | 24200 | 8400 | 11000 | 0.462 |
| 7008 | 40 | 68 | 15 | 1 | 0.6 | 18800 | 14500 | 9600 | 13000 | 0.222 |
| 7208 | 40 | 80 | 18 | 1.1 | 0.6 | 32000 | 23000 | 8300 | 11000 | 0.37 |
| 7308 | 40 | 90 | 23 | 1.5 | 1 | 45000 | 30500 | 7400 | 9900 | 0.625 |
| 7009 | 45 | 75 | 16 | 1 | 0.6 | 22300 | 17700 | 8700 | 12000 | 0.262 |
| 7209 | 45 | 85 | 19 | 1.1 | 0.6 | 36000 | 26200 | 7400 | 9900 | 0.42 |
| 7309 | 45 | 100 | 25 | 1.5 | 1 | 58500 | 40000 | 6600 | 8900 | 0.837 |
| 7010 | 50 | 80 | 16 | 1 | 0.6 | 23700 | 20100 | 7900 | 10000 | 0.305 |
| 7210 | 50 | 90 | 20 | 1.1 | 0.6 | 37500 | 28600 | 6700 | 9000 | 0.47 |
| 7310 | 50 | 110 | 27 | 2 | 1 | 68000 | 48000 | 6000 | 8100 | 1.09 |
| 7011 | 55 | 90 | 18 | 1.1 | 0.6 | 31000 | 23600 | 7100 | 9500 | 0.447 |
| 7211 | 55 | 100 | 21 | 1.5 | 1 | 46500 | 36000 | 6100 | 8200 | 0.6 |
| 7311 | 55 | 120 | 29 | 2 | 1 | 79000 | 56500 | 5500 | 7300 | 1.39 |
| 7012 | 60 | 95 | 18 | 1.1 | 0.6 | 32000 | 28100 | 6600 | 8800 | 0.478 |
| 7212 | 60 | 110 | 22 | 1.5 | 1 | 56000 | 44500 | 5700 | 7600 | 0.8 |
| 7312 | 60 | 130 | 31 | 2.1 | 1.1 | 90000 | 66000 | 5100 | 6800 | 1.74 |
| 7013 | 65 | 100 | 18 | 1.1 | 0.6 | 33500 | 31500 | 6100 | 8100 | 0.509 |
| 7213 | 65 | 120 | 23 | 1.5 | 1 | 63500 | 52500 | 5200 | 7000 | 1 |
| 7313 | 65 | 140 | 33 | 2.1 | 1.1 | 102000 | 75500 | 4700 | 6300 | 2.11 |
| 7014 | 70 | 110 | 20 | 1.1 | 0.6 | 42500 | 39500 | 5700 | 7600 | 0.705 |
| 7214 | 70 | 125 | 24 | 1.5 | 1 | 69000 | 58000 | 4900 | 6500 | 1.09 |
| 7314 | 70 | 150 | 35 | 2.1 | 1.1 | 114000 | 86000 | 4400 | 5800 | 2.56 |
| 7015 | 75 | 115 | 20 | 1.1 | 0.6 | 43500 | 41500 | 5300 | 7100 | 0.745 |
| 7215 | 75 | 130 | 25 | 1.5 | 1 | 71500 | 62000 | 4500 | 6000 | 1.2 |
| 7315 | 75 | 160 | 37 | 2.1 | 1.1 | 125000 | 97500 | 4100 | 5400 | 3.07 |
Conclusion
Angular contact ball bearings are a favorite choice in high-precision, high-speed applications. Single-row angular contact ball bearings have a single row of rolling elements compared to double-row angular contact ball bearings. These ball bearings are used in pairs to endure large axial and radial loads. Furthermore, radial and deep groove bearings are also used widely for various applications.
© COPYRIGHT NOTICE
Copyright of the pictures belong to the owner, not allow to copy or use without permission, the owner have the rights to pursue legal action, if you find infringement, please email us we will handle or remove immediately.
