In the world of mechanical engineering and precision machinery, 6903 bearings are among the most commonly used deep groove ball bearings. Whether for industrial machinery, automotive components, or electric bicycles, the 6903 bearing delivers reliable performance and durability in compact applications.
At BYWB Bearing, we focus on supplying high-quality bearings that meet industry standards for performance, efficiency, and longevity. This guide provides a deep dive into the technical specifications, structure, sizes, applications, and series comparison of the 6903 bearing — everything engineers and buyers need to know before selecting the right bearing for their application.
What Is a 6903 Bearing?
A 6903 bearing is a type of deep groove ball bearing characterized by its compact size, radial load capacity, and ability to operate at high speeds with low friction. Deep groove ball bearings are versatile and one of the most widely used bearing types in the world.
The 6903 bearing belongs to the 6900 series, which consists of ultra-thin section bearings designed for applications where space and weight are critical considerations.
Technical Specific Details of 6903 Bearing
Below are the key technical specifications for the 6903 bearing:
Basic Specifications
| Specification | Value |
| Type | Deep Groove Ball Bearing |
| Series | 6900 Series (Lightweight, thin section) |
| Bore Diameter (d) | 17 mm |
| Outer Diameter (D) | 30 mm |
| Width (B) | 7 mm |
| Dynamic Load Rating (Cr) | (Varies by manufacturer) |
| Static Load Rating (Cor) | (Varies by manufacturer) |
| Speed Rating | High Speed Applications |
| Seal Type | Open / Shielded / Sealed (e.g., ZZ, 2RS) |
| Cage Material | Steel / Brass / Polymer |
Key Technical Insights
Precision Engineering
The 6903’s geometry ensures minimal friction and smooth rotation. Deep grooves allow for stable support of radial loads.
High-Speed Capability
Due to its lightweight and optimized internal design, the 6903 bearing operates efficiently at high RPM levels.
Versatility
Available in open, shielded (ZZ), and sealed (2RS) versions, making it suitable for various environments, including dusty or lightly contaminated conditions.
Low Friction and Heat
Its design minimizes friction, reducing heat generation under load — critical for high-speed applications.
Structure of 6903 Bearing
Understanding the structure of a 6903 bearing helps explain why it performs so well in compact, high-speed scenarios.
Main Components
A 6903 bearing consists of the following parts:
- Inner Ring
Fits onto the shaft.
Precision ground to support rotation.
- Outer Ring
Housed within the machinery casing or hub.
Works with the inner ring to create a raceway for balls.
- Balls
Usually made from high-grade bearing steel.
The rolling elements that enable the bearing to rotate with low friction.
- Cage
Holds the balls spaced evenly around the bearing.
Prevents ball contact and reduces friction.
- Raceways
Grooves in the inner and outer rings where the balls roll.
Precision machined for load distribution and wear resistance.
- Seals or Shields (optional)
ZZ Shield — metal shields that prevent larger particles from entering the bearing.
2RS Seal — rubber seals on both sides for better protection against dust and moisture.
Deep Groove Design Advantage
The grooves in both inner and outer rings are deep enough to allow angular movement of the shaft while still maintaining excellent radial load distribution. This design allows the 6903 bearing to accommodate moderate axial loads in both directions in addition to radial loads.

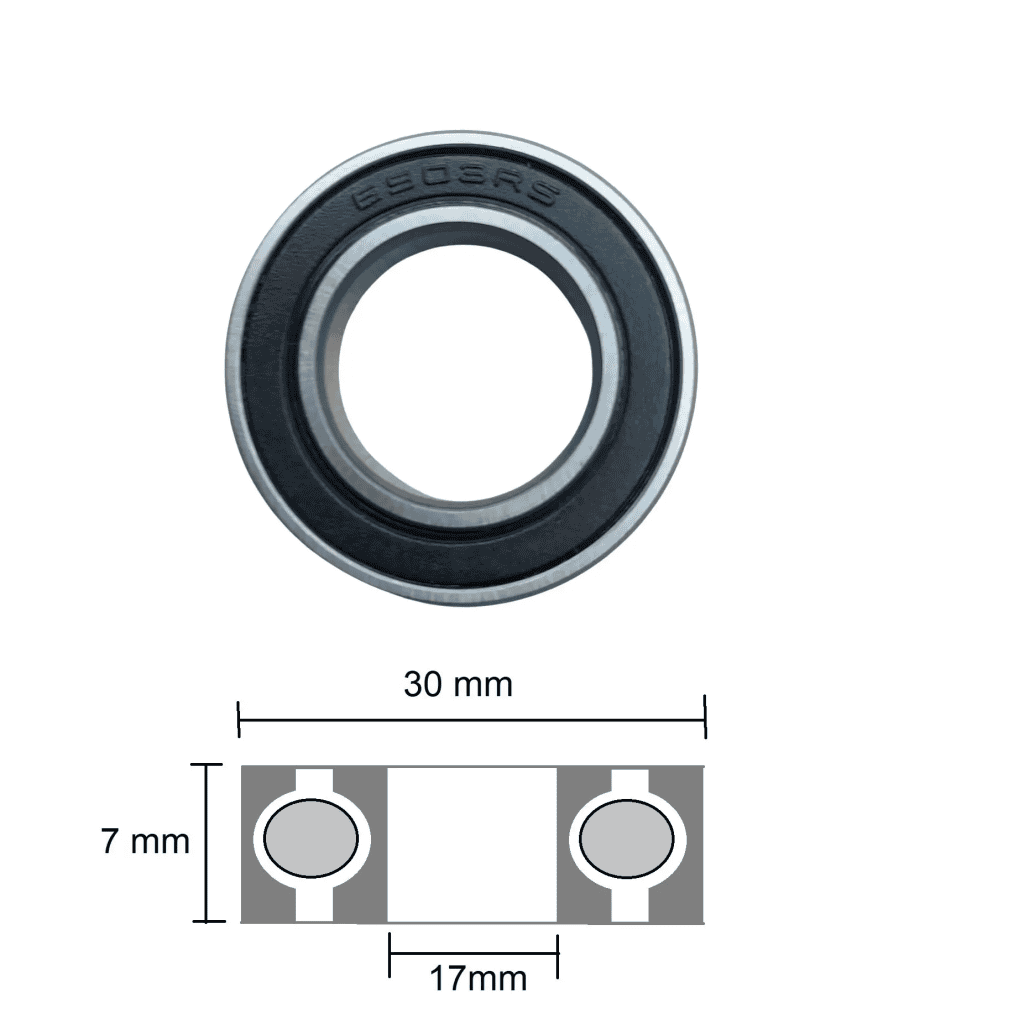

What Size Is a 6903 Bearing?
The dimensions of the 6903 bearing are standardized, making it easily interchangeable across manufacturers.
Standard Dimensions
Inner Diameter (d): 17 mm
Outer Diameter (D): 30 mm
Width (B): 7 mm
This compact footprint makes the 6903 bearing ideal for confined spaces or lightweight mechanisms where space optimization is important.
Dimensional Table
| Dimension | Value |
| Bore (d) | 17 mm |
| Outside Diameter (D) | 30 mm |
| Width (B) | 7 mm |
| Basic Load Rating, Dynamic (Cr) | 5,800 – 6,500 N |
| Basic Load Rating, Static (Cor) | 2,600 – 3,100 N |
The 6903 bearing’s compact size lends itself well to applications like electric bicycle wheels, small motors, robotics, and precision tools.
What Is a 6903 Bearing Used For?
Due to its compact dimensions, high-speed capability, and reliability, the 6903 bearing is used widely in:

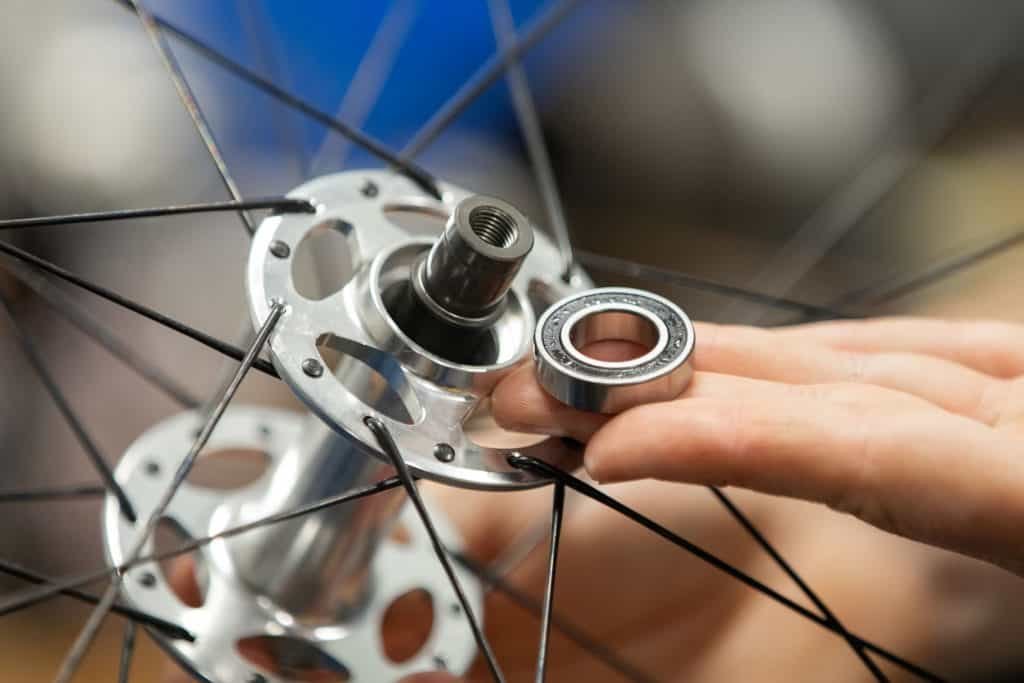

1. Electric Bicycles
In electric bikes, the 6903 bearing is commonly found in:
Hub motors
Pedal mechanisms
Freewheel systems
The thin section bearing minimizes weight while delivering smooth rotation even at high RPMs.
2. Small Motors
Whether in industrial tools, cooling fans, or small drive motors, the 6903 bearing supports high speeds with low friction.
3. Robotics and Automation
In robotics joints and precision assembly equipment, the small bearing size helps reduce bulk while maintaining accuracy and load capability.
4. Electric Tools
Power tools such as drills and grinders use 6903 bearings to support spinning shafts and reduce operating noise.
5. Household Appliances
Appliance parts like washing machine tubs, vacuum cleaner motors, and small gearboxes often use thin section bearings like the 6903.
6900 Series Bearing Size Chart
To further contextualize where the 6903 bearing fits within its series, here’s a complete size chart for the 6900 series of deep groove ball bearings:
| Series Model | Bore (d) | Outside Diameter (D) | Width (B) |
| 6900 | 10 mm | 22 mm | 6 mm |
| 6901 | 12 mm | 24 mm | 6 mm |
| 6902 | 15 mm | 28 mm | 7 mm |
| 6903 | 17 mm | 30 mm | 7 mm |
| 6904 | 20 mm | 32 mm | 7 mm |
| 6905 | 25 mm | 37 mm | 7 mm |
| 6906 | 30 mm | 42 mm | 7 mm |
| 6907 | 35 mm | 47 mm | 7 mm |
| 6908 | 40 mm | 52 mm | 7 mm |
| 6909 | 45 mm | 57 mm | 7 mm |
| 6910 | 50 mm | 62 mm | 7 mm |
This chart clearly shows the 6903’s place in the mid-range of the 6900 series, with ideal applications where space constraints and load requirements intersect.
How to Choose the Right 6903 Bearing for Your Application
When selecting a 6903 bearing, consider the following factors:
1. Load Requirements
Determine if the application primarily involves radial load, axial load, or both. While deep groove bearings handle primarily radial loads, they also support moderate axial loads.
2. Speed Requirements
High rotational speeds benefit from bearings designed for low friction. 6903 bearings are well-suited for high RPM environments like electric motors and e-bike hubs.
3. Environment
Choose sealed versions (2RS) if the bearing will be exposed to dust or moisture. Shielded (ZZ) or open configurations are suitable for clean, controlled environments.
4. Material and Quality
High-grade steel and precision manufacturing influence bearing life and performance — factors BYWB Bearing emphasizes in every imported and locally sourced product.
Benefits of Using 6903 Bearings
High Precision and Stability
Tight tolerances ensure minimal vibration and noise.
Stable rotation enhances machinery life.
Compact, Lightweight Design
Perfect for machines with limited space.
Helps reduce overall device weight.
High Speed Performance
Suitable for applications with rapid rotational demands.
Improved efficiency and reduced heat generation.
Versatility in Application
Commercial machinery
Transportation devices
Consumer electronics
Electric bicycles and scooters
Conclusion
The 6903 bearing is an essential component in multiple industries thanks to its compact size, high-speed capability, and versatility. As part of the 6900 series of deep groove ball bearings, the 6903 model stands out for its excellent balance of size, load capacity, and operational performance.
At BYWB Bearing, we provide high-quality 6903 bearings in various configurations — from open types to sealed versions — ensuring that your machines run smoothly, efficiently, and reliably. Whether you’re building electric bicycles, precision instruments, or industrial equipment, understanding the full capabilities and technical details of the 6903 bearing helps you make smarter engineering choices.
Explore our wide range of bearings and contact us for custom guidance on selecting the right products for your needs.
FAQs Section
1. What are the dimensions of a 6903 bearing?
A standard 6903 bearing has an inner diameter of 17 mm, an outer diameter of 30 mm, and a width of 7 mm. It belongs to the thin-section 6900 series deep groove ball bearings.
2. What type of bearing is a 6903?
The 6903 is a deep groove ball bearing designed for high-speed and moderate radial load applications. It can also support light axial loads in both directions.
3. What is a 6903 bearing used for?
6903 bearings are commonly used in electric bicycles, small motors, power tools, robotics, and precision machinery where compact size and high-speed rotation are required.
4. What does 6903 2RS mean?
“2RS” indicates that the bearing has rubber seals on both sides. These seals protect the bearing from dust, moisture, and contamination, extending service life.
5. What is the difference between 6903 ZZ and 6903 2RS?
- 6903 ZZ uses metal shields for light dust protection and higher speed capability.
6903 2RS uses rubber seals for better sealing performance in contaminated environments.
6. Is the 6903 bearing suitable for high-speed applications?
Yes. Due to its deep groove design and lightweight structure, the 6903 bearing performs well in high RPM applications such as electric motors and bicycle hubs.
7. Where does 6903 fit in the 6900 series?
The 6903 is a mid-size model in the 6900 series, positioned between 6902 (15x28x7mm) and 6904 (20x32x7mm).
