The 16002 deep groove ball bearing is a compact, widely used bearing model designed for smooth rotation, low friction, and reliable performance in light to medium-duty applications. Because of its small size and versatile structure, the 16002 bearing is commonly found in motors, electric tools, household equipment, scooters, pumps, and other machinery where space is limited but stable performance is still essential.
For buyers, engineers, and maintenance teams, the 16002 bearing is attractive for one simple reason: it delivers dependable radial load support in a small footprint. It is also a standard part in the 16000 series, which makes replacement and sourcing easier across global markets.
In this guide, BYWB Bearing explains the 16002 bearing technical specifications, dimensions, sealing options, common applications, and the full 16000 series size chart from 16000 to 16010.
What is a 16002 deep groove ball bearing?
The 16002 bearing is a single-row deep groove ball bearing. “Deep groove” means the raceway grooves are designed to closely match the shape of the balls, which allows the bearing to carry radial loads efficiently and also handle a certain amount of axial load in both directions.
This type of bearing is popular because it offers:
- low friction
- quiet operation
- high rotational speed capability
- simple installation
- long service life when properly lubricated and sealed
The 16002 is part of the 16000 series, which is known for its slim cross-section and compact design. Compared with heavier standard series bearings, 16000 series bearings are often chosen when space, weight, and efficiency matter.
16002 bearing technical specifications
Although exact values may vary slightly depending on manufacturer and material grade, the standard 16002 bearing is commonly specified as follows:
- Bearing type: Deep groove ball bearing
- Series: 16000 series
- Bore diameter (d): 15 mm
- Outer diameter (D): 32 mm
- Width (B): 8 mm
- Basic dynamic load rating: approximately 6.7 kN
- Basic static load rating: approximately 3.4 kN
- Limiting speed: depends on lubrication, cage design, and sealing type
- Standard cage: steel cage, brass cage, or polyamide cage depending on version
- Material: chromium steel (GCr15 / equivalent bearing steel) is common
- Lubrication: grease or oil, depending on application
- Operating characteristic: low noise, low vibration, and smooth rotation
The exact load rating and speed limit should always be confirmed with the manufacturer’s catalog, especially when selecting bearings for high-speed motors or precision equipment.
For many customers, the most important technical point is that the 16002 bearing is a slim, small-bore bearing with strong performance in compact assemblies.

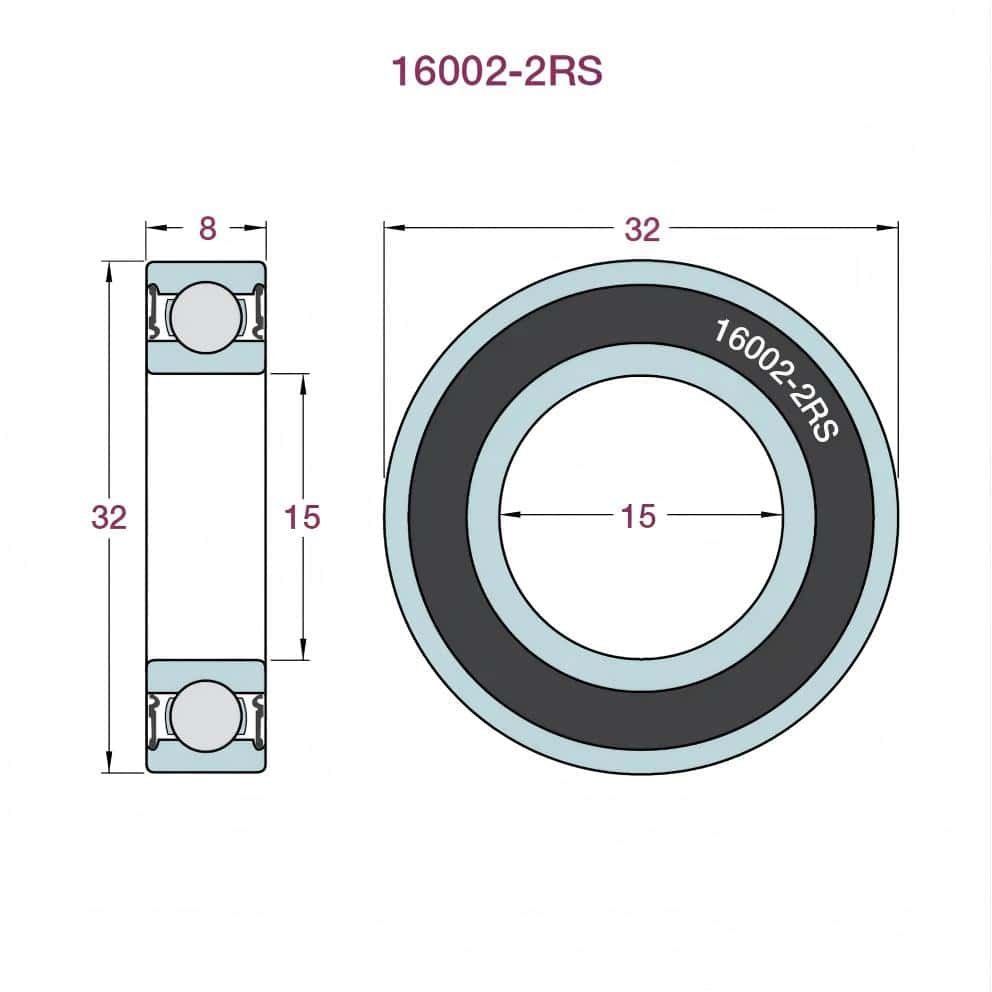

16002 bearing dimensions
The standard dimensions of the 16002 bearing are:
- Inside diameter (ID / bore): 15 mm
- Outside diameter (OD): 32 mm
- Width: 8 mm
So, the size can be written as:
15 × 32 × 8 mm
This compact dimension makes the bearing suitable for devices where the shaft is small and the housing space is limited. The 16002 bearing is often selected when a designer wants a bearing that is smaller than common 6000-series or 6200-series options but still needs reliable bearing life and speed performance.
Why the dimensions matter
The 16002’s slim structure gives it several advantages:
- easier integration in compact machinery
- lighter overall equipment weight
- reduced rotational resistance
- more design flexibility in tight spaces
At the same time, because the bearing is smaller, correct selection of load, speed, and lubrication becomes more important. If the application is heavily loaded or exposed to contamination, a stronger or better-sealed bearing version may be needed.
16002 bearing sealing solutions
A bearing’s sealing design is one of the most important factors affecting service life. For the 16002 bearing, the right sealing solution depends on environment, speed, maintenance access, and contamination risk.
1. Open type
An open 16002 bearing has no seal or shield. It is suitable for applications where:
- the bearing is regularly lubricated
- contamination is controlled
- speed is high
- the system already uses oil lubrication
Open bearings generally offer lower friction than sealed versions, but they need more protection from dust and moisture.

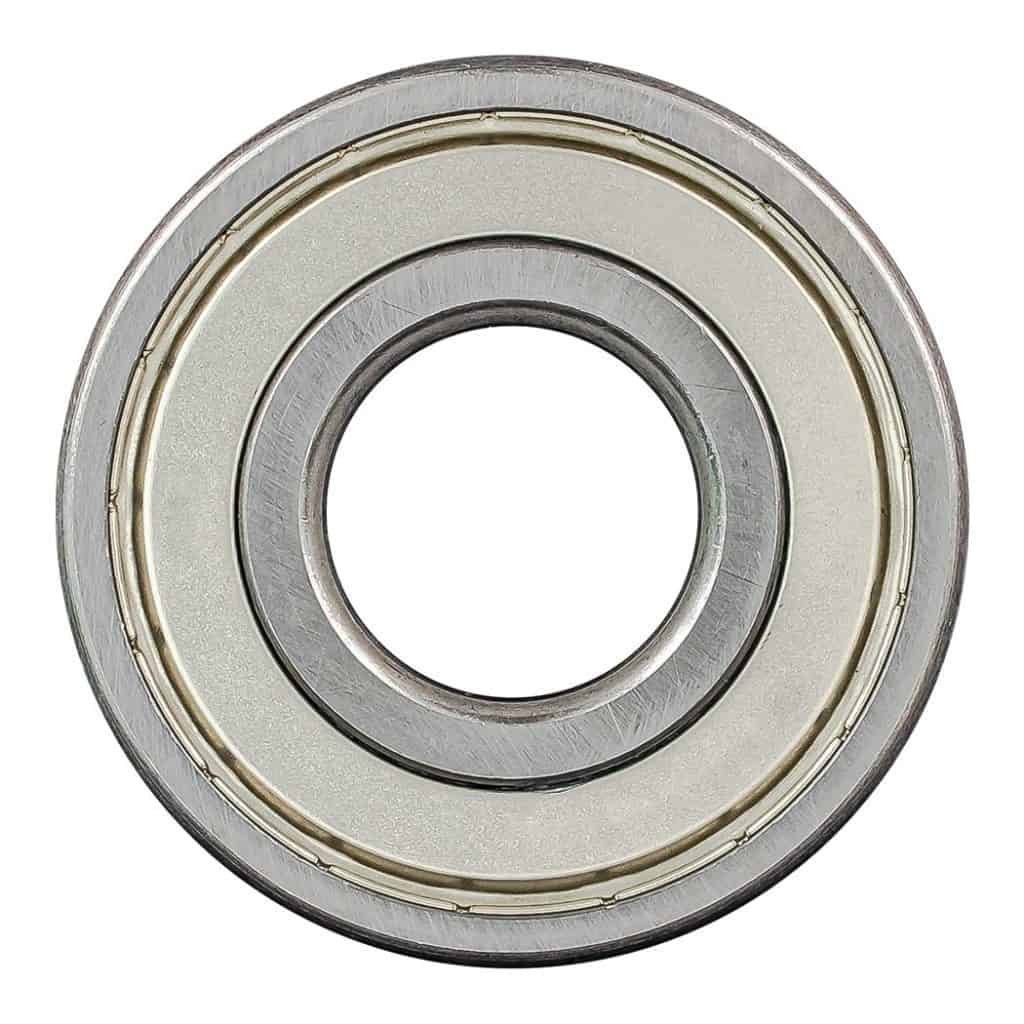

2. ZZ / 2Z metal shield
The ZZ or 2Z version uses metal shields on both sides. These shields help block dust and larger particles while maintaining relatively low friction.
Advantages of ZZ / 2Z:
- good speed performance
- low friction
- better protection than open bearings
- suitable for clean or moderately clean environments
This is often a popular choice for electric motors, fans, and general machinery.
3. 2RS rubber seal
The 2RS version uses rubber seals on both sides. This gives stronger protection against dust, moisture, and contamination.
Advantages of 2RS:
- better sealing performance
- improved grease retention
- more suitable for harsh environments
- longer maintenance intervals in dusty conditions
Possible trade-off:
- slightly more friction than metal shielded bearings
- not always ideal for very high-speed applications
Which sealing solution is best?
The best option depends on the working environment:
- High speed, clean condition: open or ZZ
- Dusty, wet, or outdoor use: 2RS
- Long life with low maintenance: 2RS or high-quality ZZ with proper grease
For many customers, the most common question is not just “What is the 16002 bearing?” but also “Should I choose open, ZZ, or 2RS?” The answer depends on the application and operating conditions.
What is 16002 bearing used for?
The 16002 bearing is used in a wide range of small and medium equipment because it combines compact size with dependable performance. Common applications include:
Electric motors
The 16002 bearing is often used in compact motor systems because it supports smooth and stable shaft rotation with low noise.
Household appliances
It may be found in equipment such as:
- fans
- cleaners
- small pumps
- home electrical devices
Power tools
Because power tools require compact, fast-rotating components, the 16002 bearing can be a practical choice in certain designs.

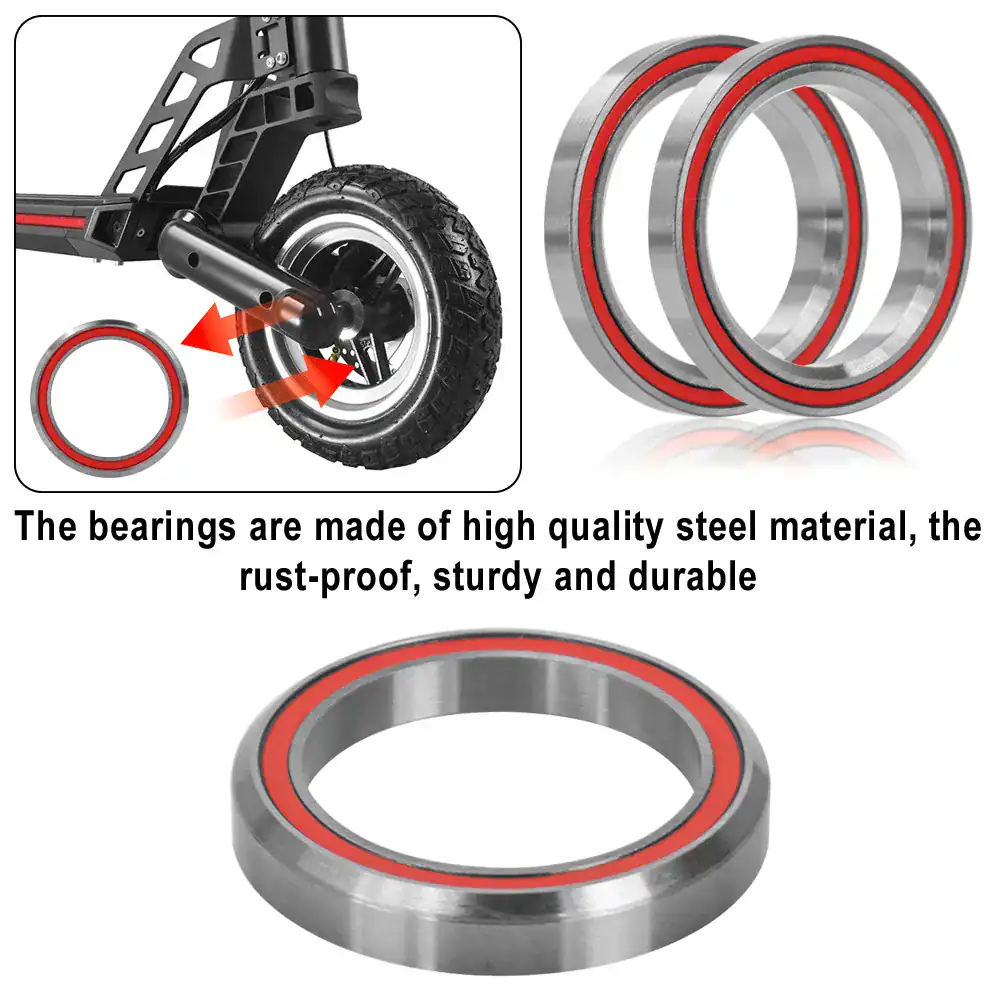

Scooters and light vehicles
The bearing can appear in:
- electric scooters
- small mobility devices
- light mechanical assemblies
Pumps and compressors
The 16002 is useful where a small bearing is needed to support rotating parts in pump or compressor systems.
Industrial equipment
It is also used in:
- compact machinery
- automation equipment
- instruments and light-duty transmission systems
General machinery replacement
Because it is a standard-size bearing, the 16002 is frequently purchased as a replacement part in maintenance and repair work.
In short, the 16002 bearing is chosen when the application needs:
- compact size
- smooth motion
- reliable speed performance
- economical replacement
Why choose the 16002 bearing?
There are several reasons why the 16002 bearing is a popular part number in the market:
Compact and lightweight
The slim profile makes it ideal for space-saving designs.
Stable and smooth
Deep groove construction supports efficient rotation and reduced friction.
Easy to source
As a standard item in the 16000 series, it is widely available from global bearing suppliers.
Versatile
It can be used in a wide variety of machines and devices.
Multiple sealing options
Users can select open, ZZ, or 2RS according to operating conditions.
For engineers and buyers, this combination of size and flexibility makes the 16002 one of the more practical bearings in the 16000 series.
16000 series bearing size chart (16000–16010)
Below is a quick reference size chart for the standard 16000 series deep groove ball bearings.
| Bearing number | Bore d (mm) | Outer D (mm) | Width B (mm) |
| 16000 | 10 | 26 | 8 |
| 16001 | 12 | 28 | 8 |
| 16002 | 15 | 32 | 8 |
| 16003 | 17 | 35 | 8 |
| 16004 | 20 | 42 | 8 |
| 16005 | 25 | 47 | 8 |
| 16006 | 30 | 55 | 9 |
| 16007 | 35 | 62 | 9 |
| 16008 | 40 | 68 | 9 |
| 16009 | 45 | 75 | 10 |
| 16010 | 50 | 80 | 10 |
What this chart shows
The 16000 series starts from very small bore sizes and gradually increases in shaft diameter and housing diameter. The first few models, especially 16000, 16001, 16002, 16003, and 16004, are especially popular in compact equipment because they keep the bearing cross-section slim.
Among these, 16002 is one of the most searched and commonly replaced models because it fits many small-shaft applications.
How to choose the right 16002 bearing
Before purchasing a 16002 bearing, it is important to check the following:
1. Size match
Confirm the shaft size is 15 mm and the housing fit matches the application.
2. Load requirement
Make sure the bearing can handle the actual radial and axial loads in the equipment.
3. Speed requirement
Choose a sealing type and lubrication method that suits the speed.
4. Working environment
Dust, water, heat, and vibration can all affect performance.
5. Maintenance plan
If maintenance access is limited, sealed versions such as 2RS may be more practical.
6. Brand and quality
A high-quality bearing usually means better consistency, lower noise, and longer service life.
Conclusion
The 16002 deep groove ball bearing is a compact, efficient, and versatile bearing widely used in small machinery and light industrial applications. With its 15 × 32 × 8 mm dimensions, it fits many compact designs while still delivering stable performance, low friction, and reliable service life.
Its sealing choices, including open, ZZ/2Z, and 2RS, make it easy to adapt to different working environments. Whether the application is a motor, pump, power tool, scooter, or general replacement part, the 16002 bearing remains a practical and popular choice.
If you are working through the 16000 series, the size chart from 16000 to 16010 can help you compare models quickly and identify the correct bearing for your application. For buyers who need dependable supply and consistent quality, the 16002 bearing is one of the most useful bearings in the compact deep groove ball bearing family.
FAQ Section
1. What are the dimensions of a 16002 bearing?
The standard dimensions of a 16002 bearing are 15 mm inner diameter, 32 mm outer diameter, and 8 mm width (15×32×8 mm).
2. What type of bearing is 16002?
The 16002 is a deep groove ball bearing, designed to support radial loads and moderate axial loads in both directions.
3. What is the difference between 16002 ZZ and 16002 2RS?
16002 ZZ: Metal shields, lower friction, higher speed capability
16002 2RS: Rubber seals, better dust and water protection
Choose ZZ for clean environments and high speed, and 2RS for harsh or dusty conditions.
4. What is a 16002 bearing used for?
The 16002 bearing is commonly used in:
electric motors
pumps
scooters
power tools
household appliances
It is ideal for compact and high-speed applications.
5. What is the load capacity of a 16002 bearing?
Typical load ratings:
Dynamic load: ~6.7 kN
Static load: ~3.4 kN
Values may vary slightly depending on manufacturer.
6. What is the difference between 16002 and 6002 bearing?
16002: slimmer design, lighter load capacity
6002: thicker cross-section, higher load capacity
Choose 16002 for space-saving designs and 6002 for heavier loads.
7. Is 16002 bearing suitable for high speed?
Yes, especially the open or ZZ versions, which offer lower friction and better performance at high speeds.
8. What is the 16000 series bearing?
The 16000 series is a group of thin-section deep groove ball bearings, designed for compact applications with limited space.
