What You Should Know About Tapered Roller Bearings

In the world of engineering and machinery, there are numerous components that make things function properly, yet many remain relatively unknown to the average person. One such component is the tapered roller bearing. While you may not be able to identify one in a car’s engine or a wind turbine’s drive system, tapered roller bearings are essential parts that help a wide array of machines run smoothly. Though they may seem like a small and simple part, their role is crucial, and they’ve been around for nearly 300 years!

Tapered roller bearings are widely used in vehicles, industrial equipment, agricultural machinery, and many other applications. In this article, we will explore the history, design, functionality, types, and various applications of tapered roller bearings. We’ll also dive into how these bearings work and why they are so effective at handling both radial and axial loads.

A Brief History of Tapered Roller Bearings

The invention of the tapered roller bearing dates back to the 1740s, when an Englishman named John Harrison developed the first known version of this bearing. Harrison, a self-taught clockmaker and carpenter, created the tapered roller bearing to improve the accuracy and functionality of his H3 marine chronometer. The chronometer, which was used to calculate longitude at sea, played a significant role in solving maritime navigation challenges.

While Harrison was not the first person to use bearings in mechanical applications, his design marked a significant evolution in bearing technology. Bearings themselves have been used since ancient times. For example, evidence from shipwrecks in the Mediterranean shows that roller bearings were used in ancient civilizations, particularly in mechanisms that allowed tables and other objects to rotate smoothly. Early bearings, however, were often made of wood and were quite rudimentary.

By the mid-1800s, a German company developed a machine capable of grinding metallic bearings into uniform shapes and sizes, which revolutionized bearing manufacturing. This laid the foundation for the modern, precision-engineered bearings that we use today, including tapered roller bearings.

Tapered Roller Bearing Design

The Unique Design

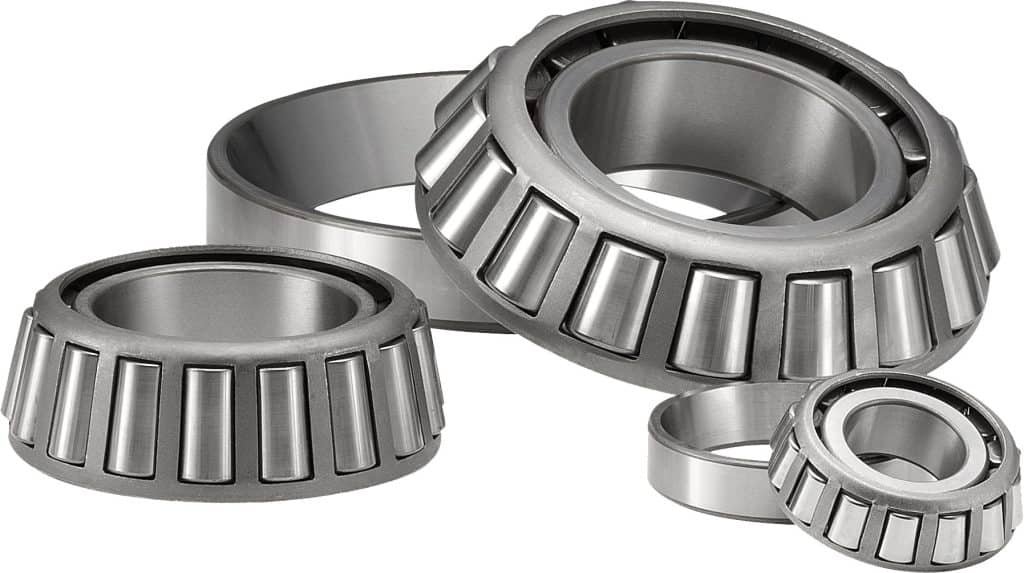

What sets tapered roller bearings apart from other types of bearings is their distinct design. As the name suggests, these bearings are made up of tapered rollers that resemble miniature barrels or cones. The rollers are housed between two tapered raceways, which gives the bearing its unique shape and functionality. These raceways are not flat; instead, they are angled, forming a cone shape that enables the roller to make contact with the raceway in a manner that provides both radial and axial load capacity.

The tapered aspect of the bearing is crucial for its ability to handle loads from multiple directions. Radial loads are forces that act perpendicular to the bearing’s axis (such as the weight of a wheel on a car), while axial loads are forces that act along the axis (such as the weight of an axial shaft in a motor). Most bearings can only handle one type of load effectively, but tapered roller bearings are specially designed to handle both types simultaneously.

How Tapered Roller Bearings Work

To understand how tapered roller bearings work, let’s break it down step by step:

The Raceways: The two raceways—one on the inner ring and one on the outer ring—are tapered. The angle at which they are set allows the rollers to sit in a way that the forces acting on the bearing are distributed evenly.

The Rollers: The cylindrical rollers within the bearing are arranged in a way that they make contact with the raceways at a point where the angles align. This point of contact allows the bearing to support radial and axial forces.

Rotation and Load Distribution: As the bearing rotates, the rollers roll along the tapered surfaces of the raceways. The angles of the raceways ensure that both radial and axial loads are distributed across the bearing’s surface, providing a balanced load-carrying capacity.

Preload: In some applications, tapered roller bearings are preloaded, meaning the rollers are slightly compressed before the bearing is installed. This preload ensures that there is no axial play (movement along the bearing’s axis), which can improve performance and extend the bearing’s lifespan.

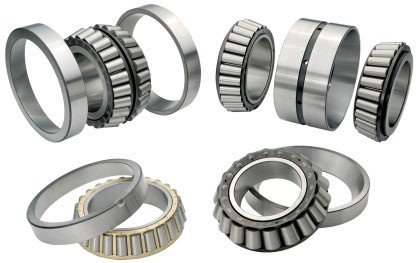

Types of Tapered Roller Bearings

There are several types of tapered roller bearings, each designed for specific applications and load requirements. The most common types include:

Single Row Tapered Roller Bearings: These are the most basic and widely used type of tapered roller bearing. They consist of a single row of rollers and are designed to handle both radial and axial loads, but typically only in one direction. These bearings are commonly found in automotive wheel hubs, industrial machinery, and conveyor systems.

Double Row Tapered Roller Bearings: As the name suggests, double-row bearings have two rows of rollers, which provide increased load capacity. These bearings are often used in applications that require the ability to support larger loads and more intense operating conditions. They are commonly used in applications like heavy-duty trucks, construction equipment, and large gearboxes.

Four-Row Tapered Roller Bearings: These are typically used in extremely heavy-duty applications where both high load capacity and durability are required. They are often found in steel mills, mining equipment, and other industries with large, heavy machinery.

Tapered Roller Thrust Bearings: These specialized bearings are designed to handle only axial loads. They are often used in applications where the primary concern is the transfer of axial forces, such as in the thrust components of gearboxes or in the propeller shafts of ships.

Metric vs. Inch Tapered Roller Bearings

Tapered roller bearings are manufactured to both metric and inch standards. Understanding the difference between these two types is crucial for selecting the correct bearing for your application, as the measurements and tolerances vary.

Metric Tapered Roller Bearings

Metric tapered roller bearings are manufactured to conform to ISO (International Organization for Standardization) specifications, which are part of the standard system used in most parts of the world. The dimensions of these bearings are measured in millimeters (mm).

Metric tapered roller bearings are commonly used in industries that follow the metric system, such as automotive, agriculture, and many European and Asian manufacturing industries.

For example, a metric tapered roller bearing might be designated as 32007X. The “32” in the part number indicates the series, while the “007” is the bore size (in mm), and the “X” indicates a specific type or version of the bearing.

Metric Tapered Roller Bearings Size chart

Inch Tapered Roller Bearings

Inch tapered roller bearings, on the other hand, are made to conform to ANSI/ABMA (American National Standards Institute / Anti-Ball Bearing Manufacturers Association) standards. These bearings are measured in inches and are most commonly used in North America, particularly in industries like automotive, mining, and construction.

For example, an inch tapered roller bearing might be designated as L44643/L44610. The “L44643” is the cone part of the bearing, and the “L44610” is the cup. The dimensions are typically given in inches, and the part numbers can be deciphered to provide information about the inner diameter, outer diameter, and width of the bearing.

Inch Tapered Roller Bearings Size Chart

Which One to Choose?

When choosing between metric or inch tapered roller bearings, it’s important to consider the following:

Application Region: If you are sourcing parts for an international or overseas market, you may need to choose the metric system. However, in North America, inch-based bearings are more commonly used.

Industry Standards: Certain industries and machines are built to either metric or inch standards, so it’s critical to select bearings that match those specifications.

Compatibility: If you’re replacing a bearing in an existing machine, it’s essential to match the bearing’s dimensions and tolerance requirements to avoid any performance issues.

Applications of Tapered Roller Bearings

Tapered roller bearings are incredibly versatile and can be found in a wide variety of applications. Some of the most common areas where they are used include:

1. Automotive Industry

Tapered roller bearings are a crucial component in the automotive sector. They are commonly used in the wheel hubs of vehicles, where they support the radial and axial loads generated by the weight of the vehicle and the forces encountered during turning, braking, and acceleration. These bearings are also found in transmissions, differentials, and other key components of a vehicle’s drivetrain.

2. Industrial Equipment

In the industrial sector, tapered roller bearings are used in a variety of machinery and equipment. They are often found in electric motors, gearboxes, and conveyors. The ability to handle both radial and axial loads makes these bearings ideal for industrial machines that experience multi-directional forces during operation.

3. Agricultural Machinery

Farm equipment, such as tractors, combine harvesters, and other heavy-duty agricultural machinery, relies heavily on tapered roller bearings. These bearings help the machinery handle large loads and rough operating conditions while maintaining smooth and efficient movement.

4. Wind Turbines

Tapered roller bearings are used in wind turbine gearboxes to support the rotational and axial forces generated by the turbine’s blades. These bearings ensure that the gears mesh smoothly and that the turbine operates efficiently, even in harsh environmental conditions.

5. Mining and Construction Equipment

Heavy-duty machinery used in the mining and construction industries often utilizes tapered roller bearings in critical components like rotating equipment, crushers, and shovels. These bearings help withstand the extreme loads and tough working environments typical of these industries.

Conclusion

Whether you need single-row, double-row, or four-row tapered roller bearings, their ability to handle both radial and axial loads makes them indispensable in a variety of applications. The choice between metric and inch tapered roller bearings depends on the system requirements and region, ensuring compatibility and performance.

If you’re looking for high-quality bearings, whether for automotive, industrial, or agricultural use, look no further than specialized suppliers like BYWB Bearings for a wide selection of products at competitive prices.

By understanding the history, design, functionality, types, and applications of tapered roller bearings, you can appreciate their crucial role in the machines that power our modern world.
