Comprehensive Guide to 5203 Bearing

Double row angular contact ball bearings play a vital role in numerous industrial applications. Known for their ability to handle both radial and axial loads, they are commonly used in pumps, gearboxes, electric motors, and heavy machinery. Among these, the 5203 bearing is a popular choice due to its balanced performance, durability, and compact design. This detailed guide will explore the key aspects of the 5203 bearing including its size, components, sealing solutions, quality grade levels, and a comprehensive size chart for double row angular contact ball bearings.

What Size is a 5203 Bearing?

Understanding the size of a bearing is crucial for ensuring a proper fit and optimal performance in machinery. The 5203 bearing is standardized with the following dimensions:

Bore Diameter (d): 17 mm

Outer Diameter (D): 40 mm

Width (B): 17.5 mm

• These dimensions allow the 5203 bearing to accommodate moderate to heavy loads in a compact space. Its size makes it versatile for medium-duty applications, where both space and performance are key considerations.

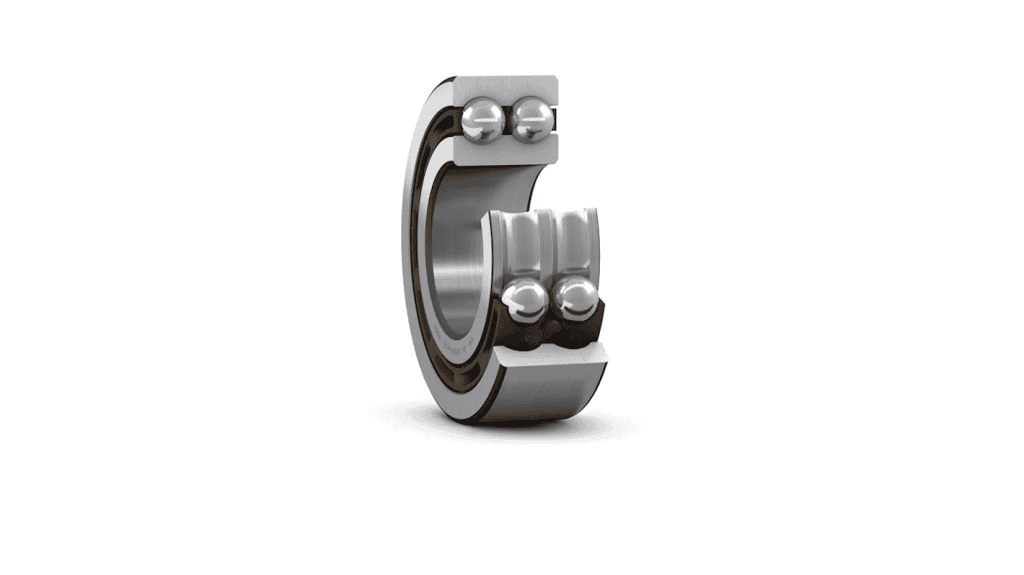

5203 Bearing Components

A 5203 bearing is composed of several critical components that work together to support rotation and load management. Let’s explore each of these in detail:

1. Inner Ring

The inner ring is mounted onto the shaft and rotates with it. It contains raceways where the rolling elements (balls) move smoothly, minimizing friction.

2. Outer Ring

This part fits into the housing and remains stationary. It also has precision-machined raceways that guide the rolling elements.

3. Rolling Elements (Balls)

The 5203 bearing uses steel balls arranged in two rows. These rolling elements bear the load and allow smooth rotation between the inner and outer rings.

4. Cage (Retainer)

The cage maintains equal spacing between the balls, ensuring uniform load distribution and reducing wear caused by ball contact.

5. Lubricant (in Sealed Types)

Lubrication is essential for reducing friction and wear. Pre-lubricated sealed bearings are maintenance-free, while open types require periodic re-lubrication.

Design Note:

The double-row angular contact design provides greater load-carrying capacity compared to single-row bearings. It also handles combined loads from both radial and axial directions effectively.

5203 Bearing Sealing Solutions

The operating environment greatly influences bearing life, and sealing solutions help protect against contamination, moisture, and lubricant loss.

Types of Sealing Options for 5203 Bearings:

1. Open Type (5203 bearing)

No seals or shields.

Suitable for clean environments.

Requires periodic maintenance and lubrication.

2. Sealed Type (5203-2RS bearing or 5203-2RSR bearing)

Equipped with rubber seals on both sides.

Keeps contaminants out and retains lubricant.

Ideal for harsh environments (dust, moisture, etc.).

Maintenance-free during its service life.

3. Shielded Type (5203-ZZ  bearing or 5203-2Z bearing)

Features metal shields on one or both sides.

Provides moderate protection against dust and debris.

Retains lubrication better than open types but less effective than rubber seals.

Choosing the Right Sealing Solution:

Open Type: When regular maintenance is feasible and the environment is clean.

Sealed Type: For dirty or wet environments where maintenance is difficult.

Shielded Type: Offers a middle-ground for environments with moderate contamination.

5203 Bearing Quality Grade Level

Bearings are manufactured to specific tolerances, often defined by quality grade levels or ABEC ratings (Annular Bearing Engineers’ Committee). These levels indicate the precision of the bearing in terms of dimensional accuracy, noise, vibration, and performance.

Common ABEC Grades for 5203 Bearing:

ABEC 1 (ISO P0):

Standard precision.

Suitable for general-purpose applications.

ABEC 3 (ISO P6):

Higher precision.

Suitable for slightly more demanding applications like electric motors.

ABEC 5 (ISO P5) and Higher:

High precision.

Used in high-speed applications or where minimal vibration and noise are essential.

Other Quality Standards:

In addition to ABEC, other regions or manufacturers may use ISO or DIN standards. BYWB Bearing adheres to international standards ensuring consistent quality and performance across various markets.

Double Row Angular Contact Ball Bearings Size Chart

Bearing	Boundary dimensions			Basic load ratings		Limiting speeds		Mass
No.	mm			KN		RPM		KG
	d	D	B	dynamic Cr	static Cor	Grease	Oil
						ZZ 2RS	open
5200	10	30	14.3	6.95	3.8	14000	19000	0.049
5201	12	32	15.9	7.6	4.5	13000	17000	0.057
5202	15	35	15.9	8.2	5.25	11000	15000	0.064
5302	15	42	19	17.2	10.1	9900	13000	0.132
5203	17	40	17.5	10.8	7.1	9900	13000	0.096
5303	17	47	22.2	20.4	12.1	9000	12000	0.181
5204	20	47	20.6	15.8	10.1	8800	12000	0.153
5304	20	52	22.2	20.6	12.7	8000	11000	0.217
5205	25	52	20.6	18.2	13.2	7300	9800	0.175
5305	25	62	25.4	30.5	20.5	6700	8900	0.362
5206	30	62	23.8	26.1	19.7	6300	8400	0.286
5306	30	72	30.2	39.5	27.5	5700	7600	0.553
5406	30	90	39.7	–	–	–	–	0.14
5207	35	72	27	33	24.5	5500	7400	0.436
5307	35	80	34.9	49.5	35	5000	6600	0.766
5407	35	100	44.4	–	–	–	–	1.95
5208	40	80	30.2	40.5	32	4900	6600	0.59
5308	40	90	36.5	60.5	44	4400	5900	1.01
5408	40	110	49.2	–	–	–	–	2.55
5209	45	85	30.2	40	32.5	4400	5900	0.64
5309	45	100	39.7	72.5	54	4000	5300	1.34
5409	45	120	54	–	–	–	–	3.25
5210	50	90	30.2	39	35	4000	5300	0.689
5310	50	110	44.4	85.5	64.5	3600	4800	1.81
5410	50	130	58.7	–	–	–	–	4.1
5211	55	100	33.3	56	49	4300	5100	0.96
5311	55	120	49.2	106	82	3300	4400	2.32
5411	55	140	63.5	–	–	–	–	5.05
5212	60	110	36.5	74.4	60.8	3500	4700	1.4
5312	60	130	54	122	95.5	3000	4000	3.05
5412	60	150	68.3	–	–	–	–	6
5213	65	120	38.1	86.9	75.3	3200	4300	1.66
5313	65	140	58.7	138	109	2800	3700	3.96
5214	70	125	39.7	94.5	82.6	3100	4100	1.82
5314	70	150	63.5	155	125	2600	3500	4.74
5215	75	130	41.3	92.4	120	2900	3900	2.1
5315	75	160	68.3	168	141	2400	3200	5.65

Here’s a useful size chart for double row angular contact ball bearings, including the 5203 series, to help you select the correct bearing based on application needs.

Note: The “5203” and “3203” refer to the same dimensions with the “5” often denoting specific bearing designations (e.g., different cage or seal types).

Applications of 5203 Bearings

5203 bearings are widely used in applications that demand efficient handling of combined loads and limited space. Some typical applications include:

Electric Motors and Generators

Automotive Components (e.g., gearboxes, clutch systems)

Industrial Gearboxes

Conveyor Systems

Pumps and Compressors

Agricultural Machinery

Their double row design offers stability and reliability in these dynamic and heavy-duty environments.

Why Choose BYWB 5203 Bearings?

BYWB Bearing specializes in high-performance bearing solutions, offering:

Strict Quality Control – Each 5203 bearing undergoes rigorous testing to ensure optimal performance.

Wide Range of Sealing Options – Open, shielded, and sealed types to suit various industrial environments.

Precision Engineering – Bearings are manufactured to global standards ensuring reliability and longevity.

Global Support – BYWB provides excellent customer service and technical support for distributors and end-users alike.

Conclusion

The 5203 double row angular contact ball bearing is a durable and versatile component, ideal for managing combined loads in medium-duty applications. Understanding its size, components, sealing options, and quality levels is crucial for proper selection and use. Whether you require open or sealed variants, BYWB Bearing offers reliable, high-quality 5203 bearings that deliver performance, durability, and value.

For tailored solutions and inquiries about BYWB’s complete line of double row angular contact ball bearings, contact our technical team or visit our website. Choosing the right bearing partner ensures your machinery runs smoothly with minimal downtime and maximum efficiency.
