5206 Bearing: A Complete Guide to Specifications, Applications, and More

The 5206 bearing is a popular double-row angular contact ball bearing known for its versatility and durability in a variety of industrial applications. Whether you’re in the automotive industry, manufacturing, or machinery, the 5206 bearing can be a critical component for achieving high performance and long service life in your equipment. This guide will dive into the specifications, sizes, interchange numbers, types of seals, and common applications of the 5206 bearing. By the end, you’ll have a clear understanding of this bearing type and why it’s an essential part of your machinery’s functioning.

What Size is a 5206 Bearing?

Before delving into the detailed specifications and features, it’s important to know the physical size of the 5206 bearing. The 5206 bearing is a double-row angular contact ball bearing, and its dimensions are as follows:

• Inner Diameter (ID): 30 mm
• Outer Diameter (OD): 62 mm
• Width (B): 23.8 mm

This size configuration gives the 5206 bearing its distinctive characteristics, making it ideal for handling radial and axial loads simultaneously, particularly in high-speed applications. Its dimensions also make it suitable for installations in spaces where compact designs are necessary while still maintaining a high load capacity.

5206 Bearing Specifications

The 5206 bearing has several important specifications that contribute to its high performance and reliability:

1. Type: Double-row angular contact ball bearing.
2. Load Capacity: This bearing is designed to handle both radial and axial loads. It has a high load-carrying capacity compared to single-row ball bearings, making it ideal for applications with combined load types.
3. Material: Typically, 5206 bearings are made from high-carbon steel or stainless steel. The material choice affects the bearing’s resistance to corrosion, wear, and fatigue.
4. Clearance: Bearings of this type often come with different clearance options (C3, C4, etc.), which can be selected based on the application’s need for axial clearance or tolerance adjustments.
5. Speed: The 5206 bearing is capable of high-speed rotations, making it suitable for dynamic applications where both high speed and load-bearing capacity are required.
6. Operating Temperature: 5206 bearings can typically withstand temperatures ranging from -30°C to +120°C, though specific limits depend on the material and lubrication used.

These specifications make the 5206 bearing an optimal choice for both high-speed and high-load conditions.

5206 Bearing Interchange Numbers

Many engineers and manufacturers look for interchangeable parts that can fit into existing systems without compromising performance. The 5206 bearing is no different, and it has various interchangeable part numbers across different bearing brands. Some of the common interchange numbers for the 5206 bearing include:

• SKF: 5206-2RS1, 5206-2Z
• NSK: 5206ZZ, 5206-2Z
• NTN: 5206, 5206LLB
• FAG: 5206-2RS, 5206-2Z
• Timken: 5206

These interchangeable numbers allow for greater flexibility when sourcing replacement bearings. It’s always advisable to consult with a bearing specialist to confirm compatibility based on your specific application.

Types of Seals for 5206 Bearings

Seals play an important role in protecting the bearing from contaminants, moisture, and dirt, which can significantly shorten the bearing’s lifespan. The 5206 bearing comes with several types of seals designed to enhance its performance in various environments. Common types of seals for 5206 bearings include:

1. 5206-2RS (Rubber Seal)

• The RS seal (e.g., 5206-2RS) is a rubber seal that provides protection against moisture and dust, which is particularly useful for industrial applications where cleanliness is critical. The rubber seal helps to retain lubrication within the bearing, minimizing the need for frequent maintenance.

2. 5206ZZ (Metal Shield)

• The Z (or ZZ) seal (e.g., 5206-2Z) is a metal shield, which offers less protection than rubber seals but allows for better speed performance due to lower friction. The metal shield helps keep the bearing free of large contaminants, making it suitable for high-speed applications.

3. 5206LLB (Double Lip Seals)

• For extreme environments, the LLB seal configuration (e.g., 5206LLB) provides an additional lip to further enhance sealing performance. This configuration is useful for applications with high contamination or varying temperatures.

Choosing the right seal type for your 5206 bearing depends largely on the operating environment, with rubber seals being ideal for dust-sensitive applications and metal shields preferred for higher-speed systems.

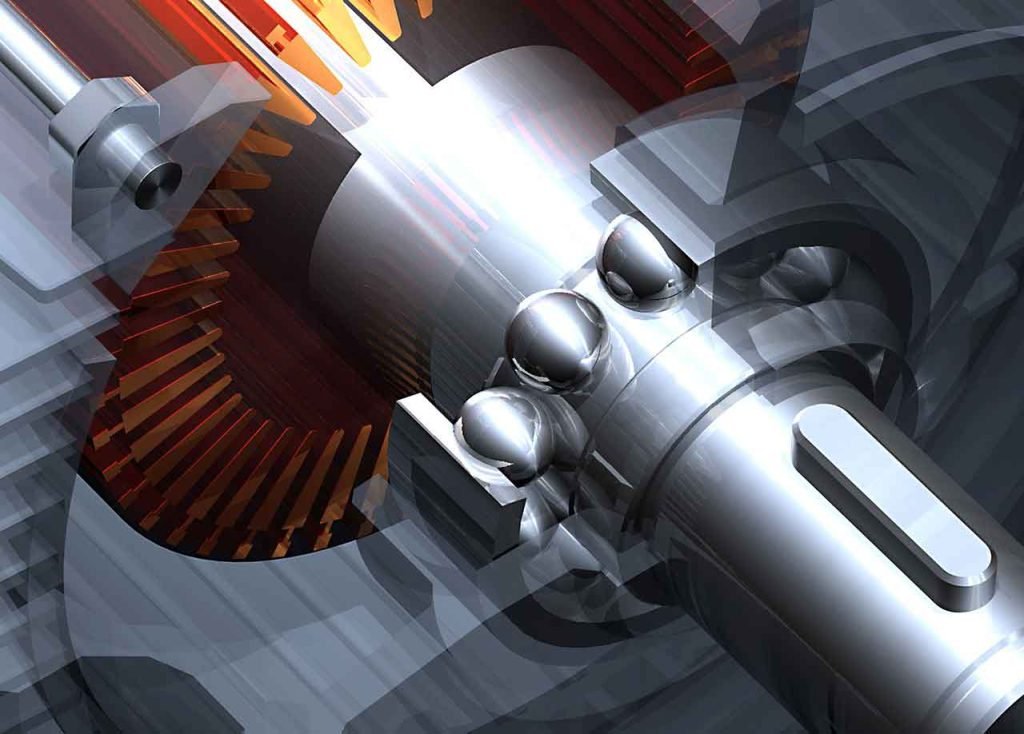

5206 Bearing Applications

Due to its robust design and versatile load-handling characteristics, the 5206 bearing finds applications in a wide range of industries. Here are some common uses:

1. Automotive Industry

In the automotive sector, the 5206 bearing is often used in wheel hubs, steering mechanisms, and transmissions. It can handle the axial loads encountered in car axles, making it essential for smooth vehicle operation, reducing friction, and improving longevity.

2. Electric Motors

Electric motors, particularly those used in high-performance machinery, rely on bearings that can tolerate both radial and axial loads. The 5206 bearing is used in these applications to ensure efficient rotation, minimal wear, and longer service life, especially in high-speed motors.

3. Machine Tools

Machine tools, such as CNC machines, often use the 5206 bearing for spindle applications. The bearing’s ability to manage combined radial and axial loads makes it well-suited for high-precision machining tasks that require minimal vibrations and enhanced accuracy.

4. Agricultural Equipment

The 5206 bearing is widely used in agricultural machinery, including harvesters, tractors, and plows. Its robust construction ensures that it can endure the harsh conditions typical of farming environments, including exposure to dust, moisture, and temperature extremes.

5. Industrial and Manufacturing Equipment

In industrial settings, the 5206 bearing is commonly found in conveyor systems, pumps, compressors, and industrial fans. These applications require bearings that can handle high-speed operation while maintaining load capacity, and the 5206 is up to the task.

6. Power Generation

Power plants use the 5206 bearing in turbines, motors, and generators, where it plays a vital role in ensuring reliable and consistent performance even under high-load and high-speed conditions.

Double Row Ball Bearing Size chart

Conclusion

The 5206 bearing is a highly versatile and reliable bearing type that meets the needs of a wide range of industries. With its double-row angular contact design, it efficiently handles combined radial and axial loads, making it indispensable for high-performance applications. Whether you need it for automotive, electric motor, agricultural, or industrial applications, the 5206 bearing offers a range of specifications and seal types to match your requirements.

When selecting a 5206 bearing, always consider the load capacity, operating conditions, and the type of seal you require for optimal performance. With a variety of interchangeable numbers available, sourcing a replacement is straightforward, and the bearing’s durability ensures that your equipment continues to run smoothly for years to come.

For those looking to invest in top-quality 5206 bearings, BYWB Bearings offers a range of options that meet international standards, providing superior performance and longevity for your equipment.
